IP65 battery-powered spotlight with RGBWA+UV LEDs, QuickDMX, diffuser covers and IR remote control
- Integrated QuickDMX transmitter/receiver for wireless transmission of DMX512 signals
- 14 high-power 10 W RGBWA/UV LEDs (6in1)
- For indoor and outdoor use (IP65)
- Including diffuser discs for beam angles of 15, 27°, 30° and 60°
- Battery operation up to 26 hours (depending on program used), recharging time 3 hours
- Auto, master/slave and DMX mode
- Built-in auto show programs
- Direct color selection for 27 preset colors
- Variable color temperature 2700-8000 K
- Stepless color blend, color change, color fade, dimmer and strobe effect
- Dimmer speed (step response) adjustable
- Control panel with LC display for easy configuration

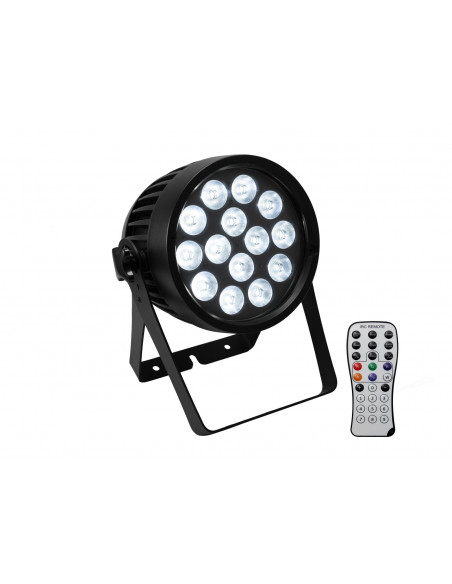

- Convenient wireless control via included IR remote control
- Swivel mounting brackets
- Additional bracket for floor use
- Mains input and output for power linking up to 8 units
- LED: 14 x 10 W 6in1 HCL RGBWA/UV (homogenous color mix)
- Can be operated in 2; 3; 6-1; 6-2; 12 CH mode
- The device is cooled by passive convection
- Controlling by DMX; stand-alone; IR remote control; Master/slave function; QuickDMX built-in
- Preprogrammed in LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE
- Flicker-free projection
| Power supply: | 100-240 V AC, 50/60 Hz |
| IP classification: | IP65 |
| Protection class: | Class I |
| Power connection: | Battery/battery pack built-in
IP T-Con (M) mounting version power supply cord with safety plug (provided) |
| Cable length: | Approx. 1,1 m |
| Power output: | IP T-Con (F) mounting version |
| Fuse: | 5 x 20 mm, T 3 A Fuse replaceable |
| Battery pack type: | 1 x lithium ion 22,2 V, 4400 mAh, 97,68 Wh |
| Battery pack: | Battery operation up to 26h depending on program used
Recharging time 3h |
| LED: | 14 x 10 W 6in1 HCL RGBWA/UV (homogenous color mix) |
| Color temperature: | 2700K - 8000K adjustable |
| Flash rate: | 0 - 20 Hz |
| Equipment: | Frost filter |
| DMX channels: | 2; 3; 6-1; 6-2; 12 |
| DMX input: | 3-pin XLR (M) mounting version IP |
| DMX output: | 3-pin XLR (F) mounting version IP |
| Cooling: | Passive convection |
| Control: | DMX; stand-alone; IR remote control; Master/slave function; QuickDMX built-in; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE |
| Beam angle: | 15° |
| Beam angle (1/2 peak): | 15°
27°
30°
60° |
| Housing color: | Black |
| Display type: | LCD display |
| Carrier frequency: | 2,4 GHz |
| Dimensions: | Width: 31,7 cm
Depth: 22,7 cm
Height: 37,0 cm |
| Weight: | 7,85 kg |
| Noise classification: | Class 0 (no noise at all) |
| Remote control |
| Battery: | 1 x Button cell 3.0 V CR2032 lithium manganese built-in |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
