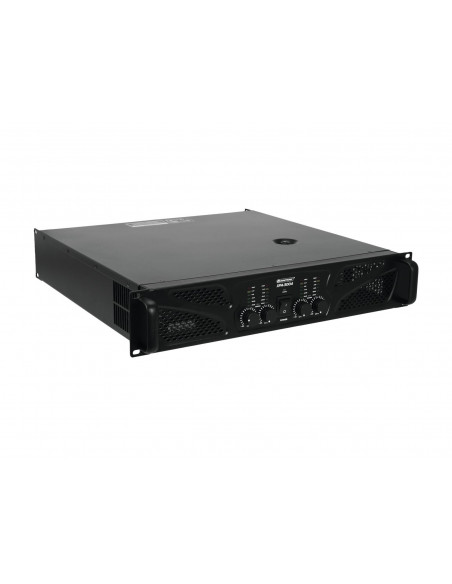

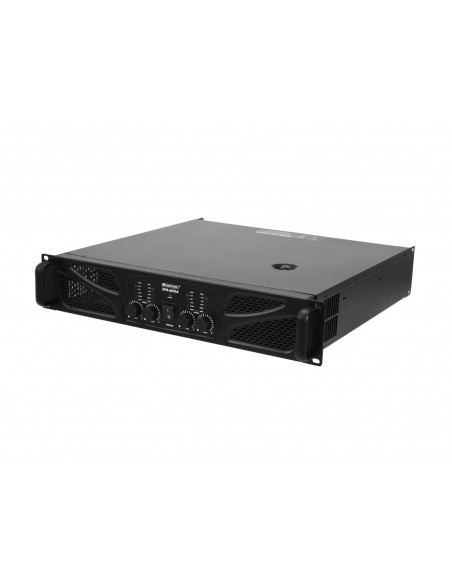

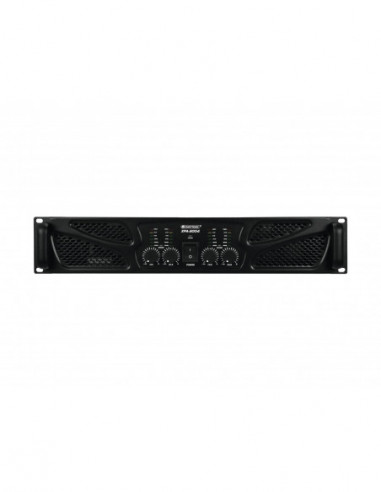

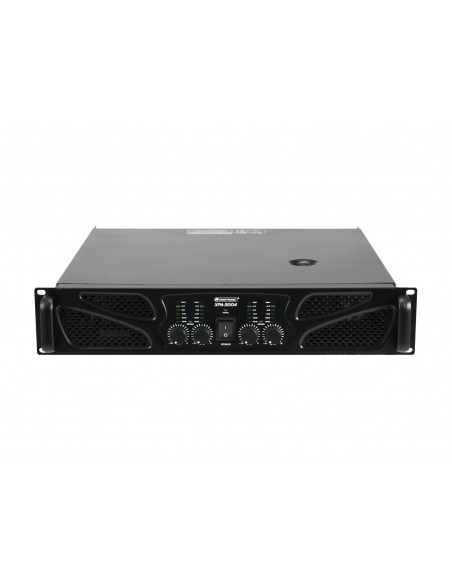

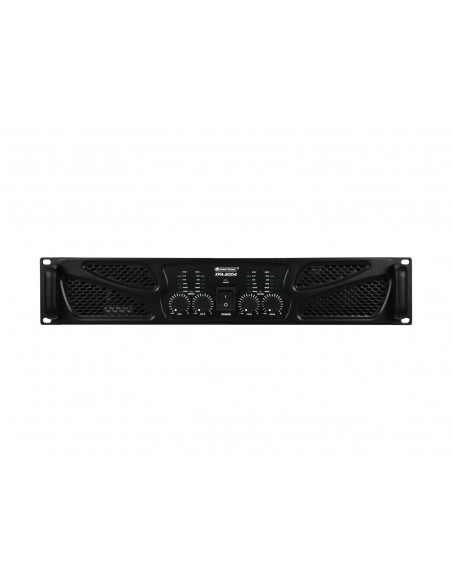

4-channel PA amplifier with integrated limiter, 4 x 750 W / 4 ohms, 4 x 500 W / 8 ohms
- 3 operating modes can be selected (stereo, parallel or bridged)
- Input sensitivity adjustable
- Speaker switch-on delay
- 4 level controls
- Each channel with LED for activated protective circuit (protect) and output meter with clip LED
- Complete protection set against short-circuit, overheat, DC voltage, power on/off transients
- Signal inputs via XLR connectors
- Speaker outputs via lockable speaker jacks
- Class H circuitry
- P-Con power input
- Rack installation with 2 units
- The device is cooled by cooling fan
- (19") 48.3 cm rack installation 2 U
| Power supply: |
230 V AC, 50 Hz |
| Power consumption: |
700 W 1/8 power |
| Output power: |
4 x 750 W RMS (4 ohms)
4 x 500 W RMS (8 ohms)
2 x 1500 W RMS bridged (8 ohms) |
| Power connection: |
Mains input P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Frequency range: |
20 - 20000 Hz |
| S/N ratio: |
>100 dB |
| THD: |
<0,5 % at 1 kHz |
| Cooling: |
Cooling fan |
| Impedance: |
Input 20 kOhm , bal.
Input 10 kOhm , unbal. |
| Circuitry: |
Class H |
| Slew rate: |
>10 V/µs |
| Damping factor: |
>200 |
| Control elements: |
Power switch, level control per channel, mode switch (stereo/parallel/bridged), Input sensitivity switch |
| Controls: |
Short-circuit; overheat; DC voltage; power on/off transients; softstart; power on/off transient |
| Status LED: |
Power, level meter, clip, bridged, protect |

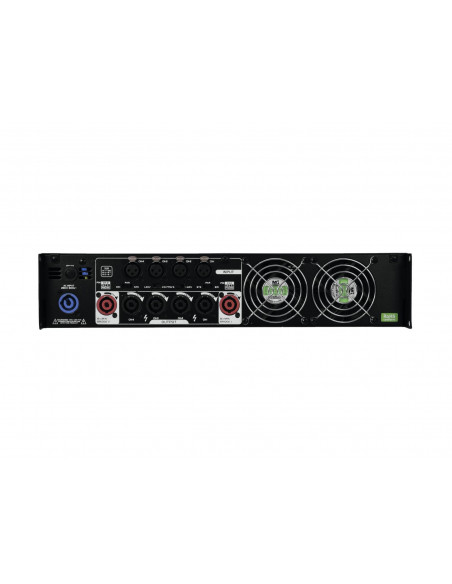

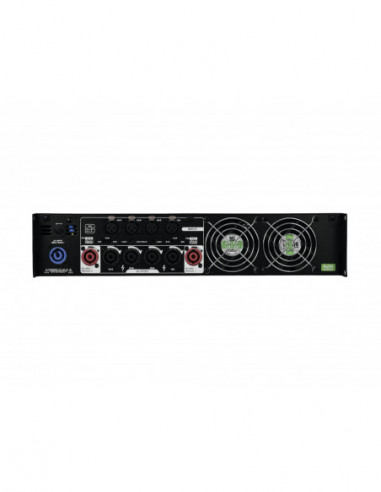

| Connections: |
Input: line via 4 x 3-pin XLR
Output: speakers via 4 x speaker built-in socket (F)
Output: Speaker (bridge) via 2 x speaker built-in socket (F) |
| Input sensitivity: |
0,775 V; 1,4 V , switchable |
| Housing design: |
(19") 48.3 cm rack installation 2 U |
| Dimensions: |
Width: 48,3 cm
Depth: 41,5 cm
Height: 8,9 cm |
| Weight: |
17,20 kg |
