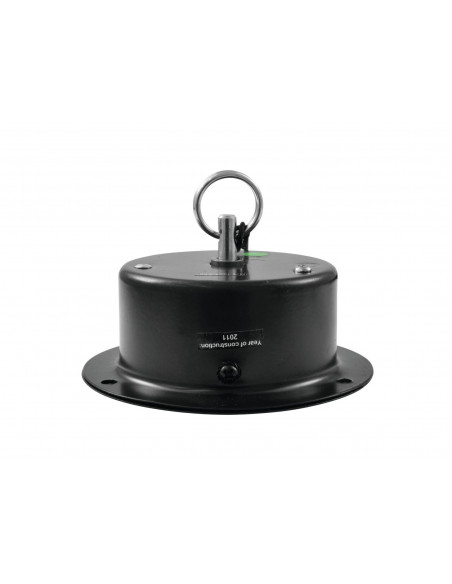

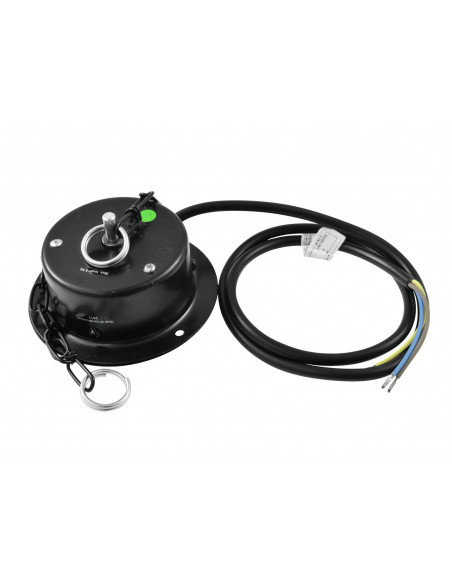

This solid mirror ball motor can carry a load of up to 3 kg. This equals a mirror ball of approximately 30 cm, safety margins included. The motor has a slow ration speed of 1.5 RPM. This creates calm, relaxing effects, especially when you choose for a pin spot to shine on the mirror ball. This product is available with or without plug. The mounting material must be ordered separately.
Motor for mirror balls up to 30 cm with 1.5 RPM
- Suitable for driving mirror balls up to a maximum weight of 3 kg
- This weight corresponds with a diameter of 30 cm for the EUROLITE mirror balls
- The maximum load always means the mirror ball weight including the mirror ball chain and the fixation material
- 1,5 rotations per minute

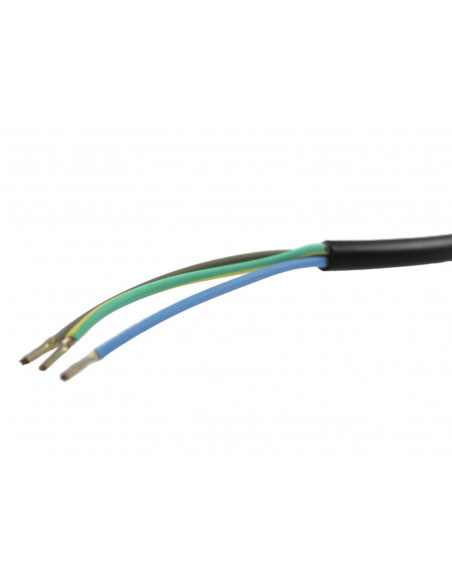

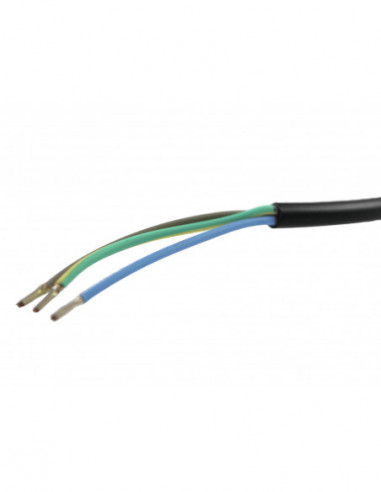

- Delivered with open cable-ends
- For professional use, e.g. in discotheques and in public places, the EN DIN 15560 norms have to be considered
- The motor always has to be installed with a secondary safety attachment
- Before taking into operation for the first time, the installation has to be approved by an expert
- Suitable for a mirror ball with a diameter of up to 30 cm
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 4 W |
| IP classification: | IP20 |
| Protection class: | Class I |
| Power connection: | Fixed Supply cord with open wires |
| Cable length: | Approx. 0,8 m |
| Rotation: | 1,5 RPM |
| Maximum load: | 3 kg |
| Max. mirror ball diameter: | 30 cm (EUROLITE) |
| Material: | Metal |
| Color: | Black |
| Dimensions: | Height: 6 cm
Diameter: Ø 10,8 cm |
| Weight: | 320 g |
