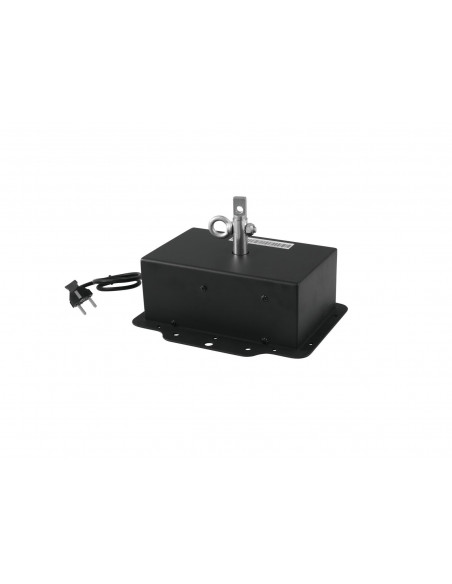

EUROLITE MD-3010 Safety Rotary Motor
EUROLITE MD-3010 Safety Rotary Motor
EUROLITE MD-3010 Safety Rotary Motor
EUROLITE MD-3010 Safety Rotary Motor
EUROLITE MD-3010 Safety Rotary Motor
EUROLITE MD-3010 Safety Rotary Motor

EUROLITE MD-3010 Safety Rotary Motor

50301510
127,27 €

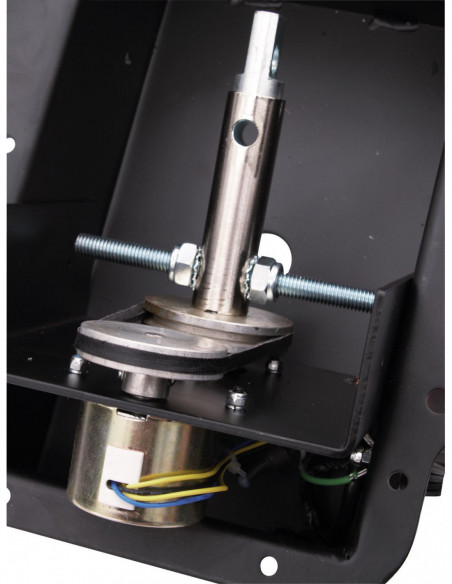

This solid mirror ball motor can carry a load of up to 40 kg. This equals a mirror ball of approximately 100 cm, 12-fold safety margin included. The motor has a speed of 1 RPM (rotations per minute). This creates a peaceful effect, especially when you choose for a pin spot to shine on the mirror ball. The motor is equipped with a patented mechanical drop protection against unintentional loosening of the axis as well as the required second eyelet for the attachment of the safety chain.All Eurolite safety motors comply with the safety norm DIN EN ISO 12100 and relevant accident prevention regulations. Each production charge is subject to strict quality control which makes the motor suitable for discotheques and other public events.

Mirror ball motor for mirror balls up to 100 cm diameter

  • Suitable for driving mirror balls up to a maximum weight of 40 kg
  • This weight corresponds with a diameter of 100 cm for the EUROLITE mirror balls
  • The maximum load always means the mirror ball weight including the mirror ball chain, the safety chain and the fixation material
  • 2 chains and 4 quick links must be ordered separately
  • 1 rotation per minute
  • For professional use, e.g. in discotheques and in public places, the EN DIN 15560 norms have to be considered
  • The motor always has to be installed with a secondary safety attachment
  • Before taking into operation for the first time, the installation has to be approved by an expert
  • Controlling by plug and play
  • Suitable for a mirror ball with a diameter of up to 100 cm
  • LGA tested


Power supply:230 V AC, 50 Hz
Power consumption:7 W
IP classification:IP20
Protection class:Class I
Power connection:Fixed power supply cord with safety plug
Cable length:Approx. 0,8 m
Rotation:1 RPM
Control:Plug and play
Maximum load:40 kg
Max. mirror ball diameter:100 cm (EUROLITE)
Housing color:Black
Dimensions:Length: 28,5 cm
Width: 23,5 cm
Height: 18,5 cm
Weight:5,60 kg
