The speaker systems of the XKB series are high-performance active speaker systems in light-weight and rugged plastic cabinets. They can be flexibly used for permanent installations and professional live applications. The 2-way speaker systems are designed as full-range bass-reflex systems with separate power amplifiers for the high-frequency range and the low-frequency range featuring inputs for microphones and line sources and parallel outputs for coupling with other active speakers. The DSP (digital signal processor) features convenient application presets for quick sound contouring (models XKB-212A and XKB-215). The built-in Bluetooth player allows for streaming music wirelessly from smartphones or tablets via Bluetooth. The speakers systems are protected through limiters and extensive protective circuits. The enclosure offers multiple setup options (use as a floor monitor, wall or stand mounting).
Active speaker with 8" woofer, 1" driver, LF: 70 W RMS, HF: 35 W RMS
- Class D biamp amplifier (LF 70 W, HF 35 W)
- Integrated Bluetooth audio streaming for your smartphones and tablets
- 2-way bassreflex enclosure with 20 cm woofer and 2.5 cm driver
- 1 mic/line input (XLR/jack) with level control
- 1 line input (RCA) with level control
- Master control with 2-band EQ, limit and power LED
- Parallel XLR output for linking further active speaker systems
- Limiter for overload protection
- Stable plastic housing with protective grille and handles

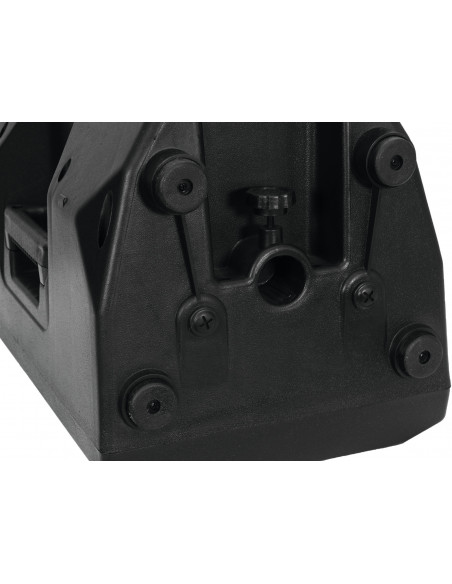

- 36 mm flange for stand installation
- Applications: standing, as floor monitor, on a speaker stand or wall holder
- Controlling by Bluetooth
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power connection: |
Mains input IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Rated power: |
70 W RMS LF; 35 W RMS HF |
| Program power: |
140 W |
| Frequency range: |
65 - 20000 Hz |
| Sensitivity: |
94 dB |
| Control: |
Bluetooth |
| Attachment system: |
Ø 35mm |
| Circuitry: |
Class D Biamp |
| Equalizer: |
Master: 1 x 2-band tone control |

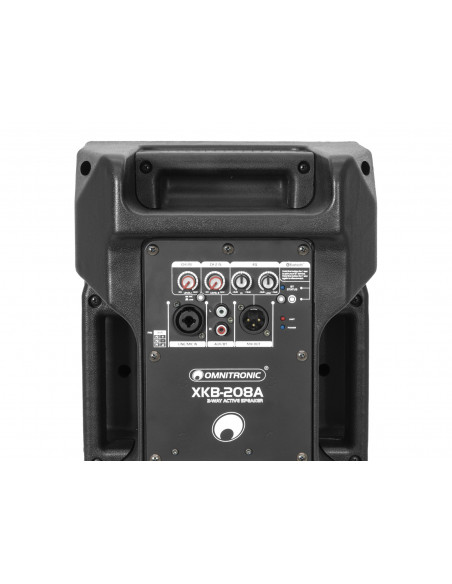

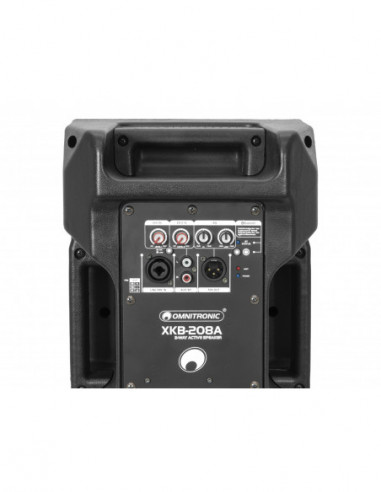

| Connections: |
Input: Microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: line via 1 x stereo RCA
Output: line via 1 x 3-pin XLR |
| Input channels: |
1 x mono with Mic-line switch via 3-pin XLR/6.35mm jack (F) combination socket (mounting version), channel control via Rotary dial
1 x stereo via RCA or Bluetooth, channel control via Rotary dial |
| Speakers: |
1 x woofer (8") approx. 20 cm
Voice coil lows (1.35") approx. 3,5 cm with ferrit magnet
Voice coil compression tweeter highs (1") approx. 2,5 cm |
| Type of speaker: |
Compact cabinet speaker |
| Type: |
Vented |
| Dimensions: |
Width: 26 cm
Depth: 27 cm
Height: 43 cm |
| Weight: |
6,90 kg |
