Built-in 100v/70v transformer
Weatherproof column type loudspeaker
IP66 waterproof level
8×2.5” full range driver
Power taps at 20w-40w @100V
Aluminum enclosure & steel grille in white

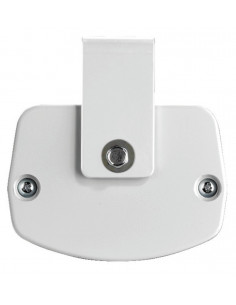

A pair of metal mounting brackets are supplied
The T-704A is a weatherproof outdoor column speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.
The built-in 8 units 2.5” full range speaker drivers are designed of wide frequency response 100-14kHz, the multiple power taps of 20W & 40W could meet different applications varies from room size and ambient noise surroundings.
The aluminum enclosure and steel grille is of white color. It is also designed of weatherproof and heavy damage proof finish. Easy and secure wall mount installation in outdoor area through the supplied pair of metal mounting brackets.
It is ideal choice for industrial and commercial applications in the outdoor area of train station, shopping mall, parking area and factory where background music and paging is needed.
|
Model |
T-704A |
|
Power Taps @100V |
20W, 40W |
|
Power Taps @70V |
10W, 20W |
|
Impedance |
Black:Com Green:250Ω White:500Ω |
|
ISPL(1W/1M) |
92dB±3dB |
|
Max. SPL (Rated W/1M) |
108dB |
|
Frequency Response (-10dB) |
100-14KHz |
|
Finish |
Body: Aluminum, White Grille: Steel, White Cover: ABS, White |
|
Speaker Driver |
2.5" x 8 |
|
IP Rate |
IPx 6 |
|
Dimensions |
105 x 75 x 690mm |
|
Weight |
3.7Kg |
|
Mounting |
With mounting bracket fixed by screw |
