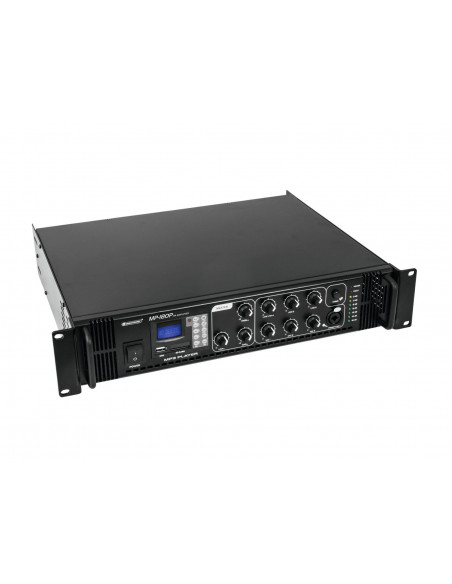

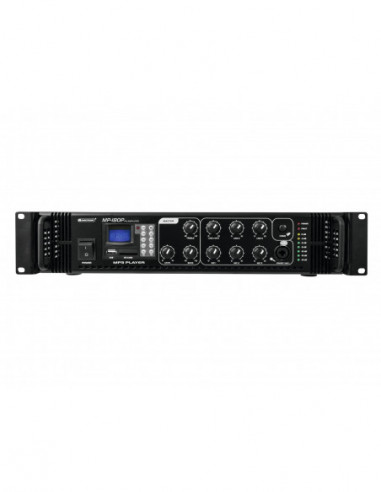

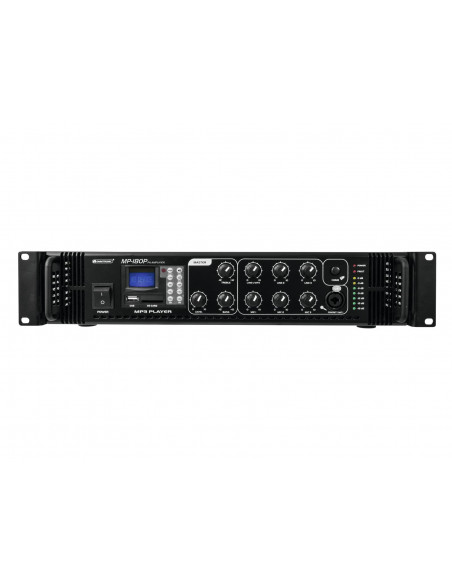

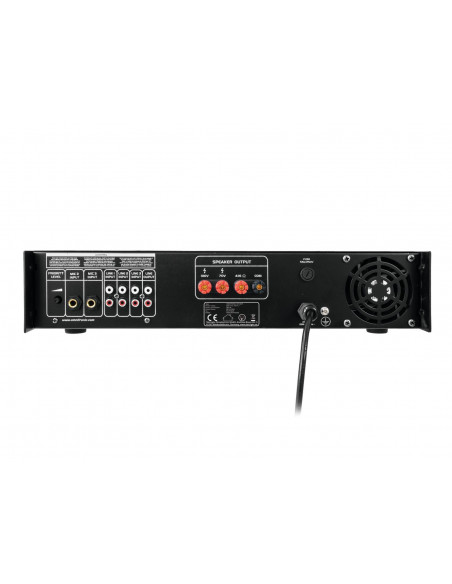

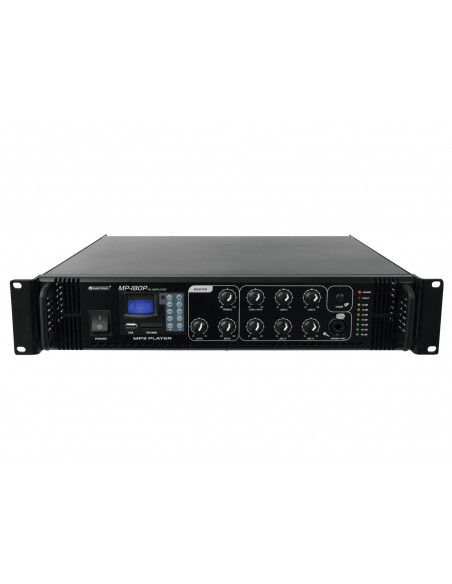

PA mono mixing amplifier with MP3 player and IR remote control, 180 watts
- PA outputs for 70 V or 100 V PA speakers or for low-impedance speakers (4-16 ohms)
- MP3 player with IR remote control and LCD with blue backlight
- SD card slot and USB input
- Folder navigation and repeat functions (1, All)
- 3 microphone inputs (6.3 mm jack, unbal.) with separate level controls
- Microphone input 3 with adjustable priority circuit
- 3 line inputs (stereo RCA) with separate level controls
- 1 line output (stereo RCA)
- Chime, switchable
- Treble and bass control for the output signal
- 7-fold LED level display
- Master control for the output signal
- Protection circuits with LED indication: over current, short circuit, turn-on delay
- The device is cooled by cooling fan
- Controlling by IR remote control
- (19") 48.3 cm rack installation 2 U
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 360,00 W |
| Output power: | 180 W RMS |
| Power connection: | Fixed power supply cord with safety plug |
| Frequency range: | 80 - 14000 Hz |
| S/N ratio: | >75 dB Microphone
>85 dB line |
| THD: | <0,5 % at 1 kHz |
| Cooling: | Cooling fan |
| Impedance: | Public address systems 100V; 4-16 ohms |
| Control: | IR remote control |
| Audio player: | USB + SD |
| Circuitry: | Class AB |
| Equalizer: | Chanal: 1 x 2-band tone control mono |
| Connections: | Input: Microphone via 2 x 6.3 mm plug (unbal.)
Input: Microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: line via 3 x stereo RCA 0,3 V
Output: line via 1 x stereo RCA 0,3 V
Output: speakers via screw terminal |
| Format: | MP3 |
| Number of files: | Max. 999 |
| Available storage media: | USB devices/SD cards max. 32GB (FAT 32) |
| Housing design: | (19") 48.3 cm rack installation 2 U |
| Dimensions: | Width: 48,3 cm
Depth: 40 cm
Height: 8,9 cm |
| Weight: | 9,80 kg |
| Remote control |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
