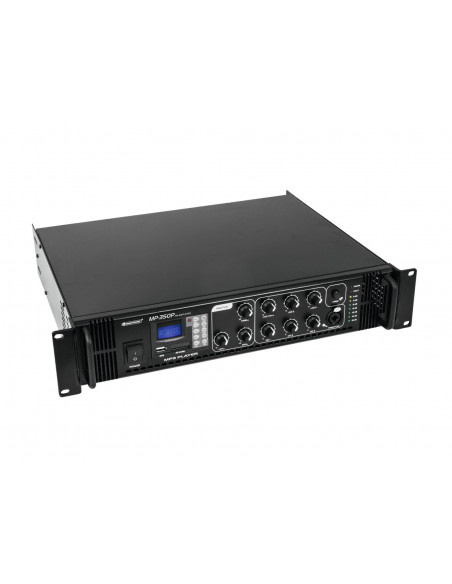

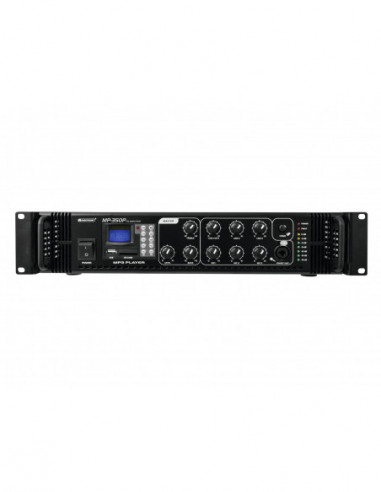

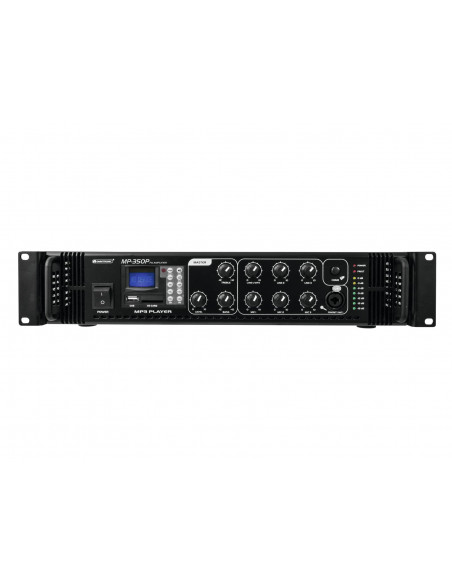

OMNITRONIC MP-350P PA Mixing Amplifier

Referência 80709645

474,76 €

PA mono mixing amplifier with MP3 player and IR remote control, 350 watts

PA outputs for 70 V or 100 V PA speakers or for low-impedance speakers (4-16 ohms)
MP3 player with IR remote control and LCD with blue backlight
SD card slot and USB input
Folder navigation and repeat functions (1, All)
3 microphone inputs (6.3 mm jack, unbal.) with separate level controls
Microphone input 3 with adjustable priority circuit
3 line inputs (stereo RCA) with separate level controls
1 line output (stereo RCA)
Chime, switchable
Treble and bass control for the output signal
7-fold LED level display
Master control for the output signal
Protection circuits with LED indication: over current, short circuit, turn-on delay
Rack installation
The device is cooled by cooling fan
Controlling by IR remote control
(19") 48.3 cm rack installation 2 U

Power supply:	230 V AC, 50 Hz
Power consumption:	700,00 W
Output power:	350 W RMS
Power connection:	Fixed power supply cord with safety plug
Frequency range:	80 - 14000 Hz
S/N ratio:	>75 dB Microphone >85 dB line
THD:	<0,5 % at 1 kHz
Cooling:	Cooling fan
Impedance:	Public address systems 100V; 4-16 ohms
Control:	IR remote control
Audio player:	USB + SD
Circuitry:	Class AB
Equalizer:	Master: 1 x 2-band tone control mono

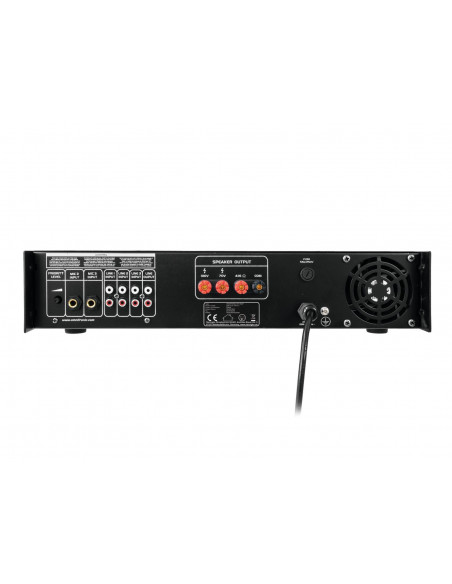

Connections:	Input: Microphone via 2 x 6.3 mm plug (unbal.) Input: Microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: line via 3 x stereo RCA 0,3 V Output: line via 1 x stereo RCA 0,3 V Output: speakers via screw terminal
Format:	MP3
Number of files:	Max. 999
Available storage media:	USB devices/SD cards max. 32GB (FAT 32)
Housing design:	(19") 48.3 cm rack installation 2 U
Dimensions:	Width: 48,3 cm Depth: 40 cm Height: 8,9 cm
Weight:	13,45 kg
Remote control
Battery:	1 x Button cell 3.0 V CR2025 lithium manganese built-in
