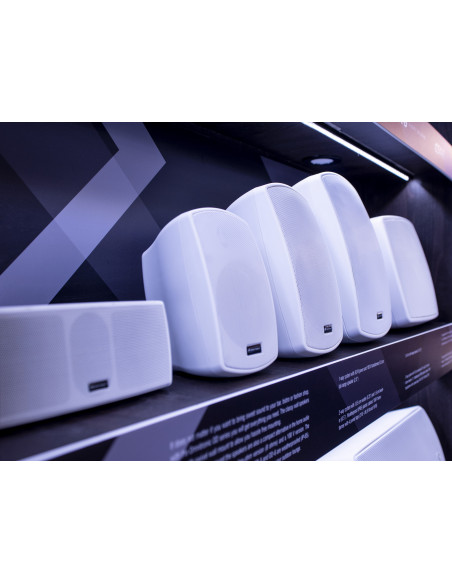

Weatherproof wall speaker pairThe 100 V sound reinforcement speakers OD-6T by OMNITRONIC convince by their very good sound image and are optimally suited for your indoor and outdoor use.The 2-way system is equipped with a 16.5 cm woofer and a 2.5 cm dome tweeter with silk membrane. The wall-mounted speaker pair features a 100 V transformer with 4 power taps and a power switch with 8 ohm operating position.The swivel and tilt mounting bracket allows you to mount the OD-6T speaker cabinets to the wall or ceiling at any angle.The weatherproof (IP65) plastic housing with metal grid also has a cover over the connections.
Weatherproof wall speaker pair (IP65) with 6.5" woofers and 32 W RMS
- 100 V PA speaker systems with an excellent sound for general applications
- 2-way system with 16.5 cm woofer (6.5") and 2.5 cm silk dome tweeter (1")

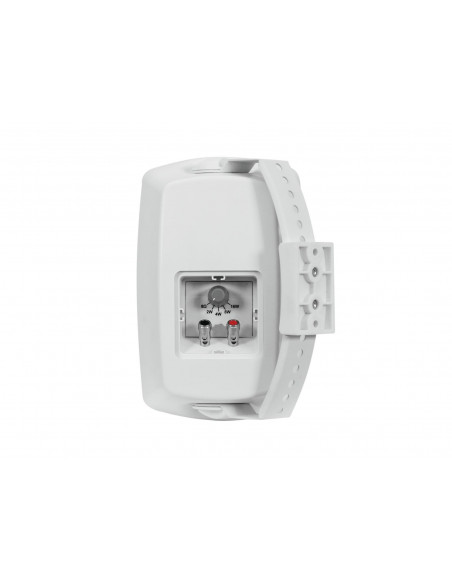

- Weatherproof (IP65) plastic cabinet with metal grille and cover for the connectors
- 100 V transformer with 4 power taps (4 W, 8 W, 16 W and 32 W)
- Power selector switch with 8 ohms operating position

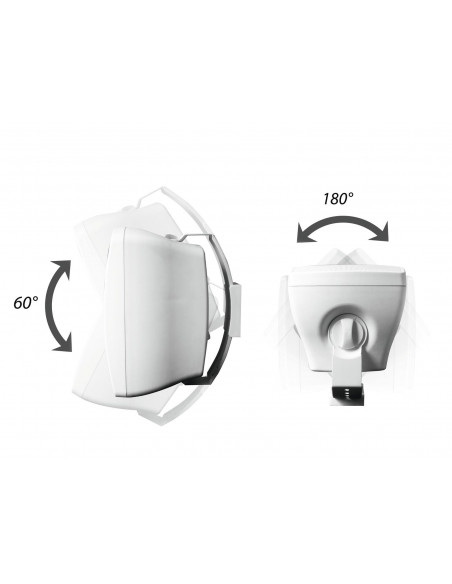

- Panning and tilting mounting bracket allows ceiling or wall installation in most varying angles
- Connection via pole terminals
- Packed as a pair
- For indoor and outdoor PA applications
- Suitable for outdoor use
| Power supply: |
100 V DC |
| IP classification: |
IP65 |
| Rated power: |
32 W RMS |
| Program power: |
64 W |
| Frequency range: |
50 - 20000 Hz |
| Sensitivity: |
90 dB |
| Max. SPL: |
93 dB |
| Dispersion angle: |
170° x 170° |
| Impedance: |
8 ohms; Public address systems 100V |
| Power tapping: |
4W; 8W; 16W; 32W RMS via Selector switch switchable |
| Connections: |
Input: speakers via screw terminal |
| Speakers: |
1 x woofer (6.5") approx. 17 cm
Horn (1") approx. 2,5 cm |
| Type of speaker: |
Compact cabinet speaker |
| Dimensions: |
Width: 19,5 cm
Depth: 19 cm
Height: 29 cm |
| Weight: |
7,10 kg |
