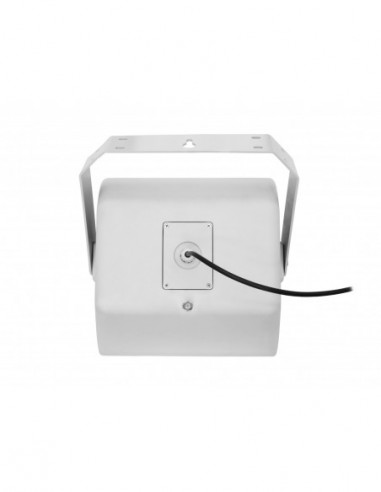

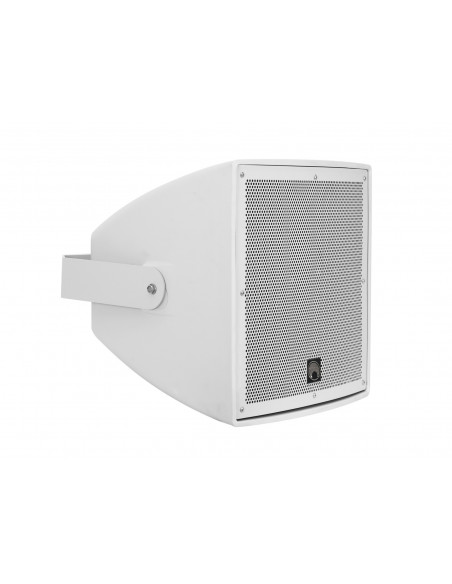

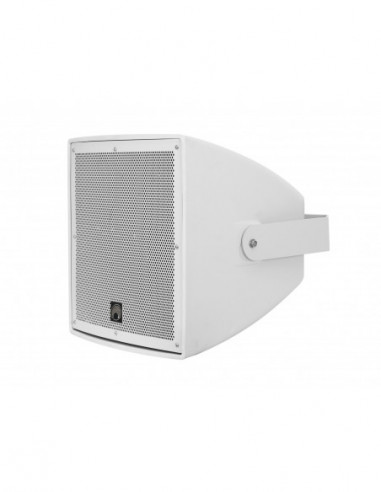

Weatherproof 12" wall speaker with mountThe ODX-212T 100 V sound reinforcement box by OMNITRONIC offers excellent sound and is ideally suited for outdoor use with its protection class IP56.The 2-way coaxial system is equipped with a 30 cm woofer and a 2.5 cm tweeter and a 100 V transformer with 3 power taps. In addition, the wall-mounted speaker has a power switch with an 8-ohm operating setting.The weatherproof, white plastic housing with the swivel mounting bracket can be mounted at variable angles.
Weather-proof 12" wall speaker with mount, 300 W RMS
- 100 V PA speaker system with an excellent sound for general applications

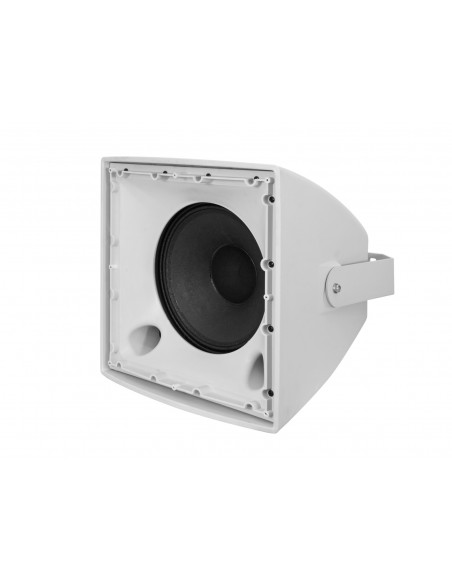

- 2-way coaxial system with 30 cm woofer (12") and 2.5 cm tweeter (1")
- Weatherproof plastic cabinet (IP56)
- 100 V transformer with 3 power taps (50 W, 100 W, 200 W)
- Power selector switch with 8 ohms operating position (300 W)

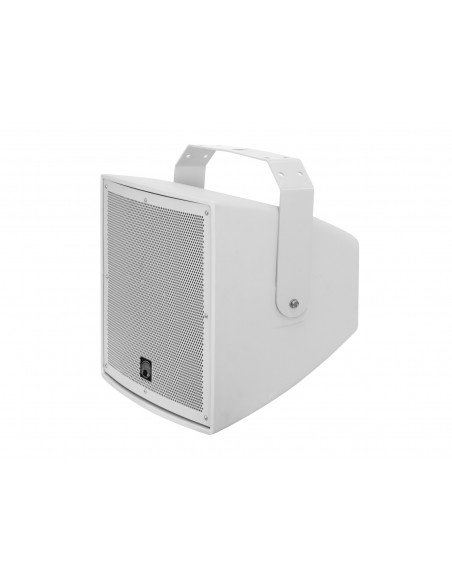

- Swivel mounting bracket
- Screw terminals for parallel connection
- For outdoor amplifying systems
- Suitable for outdoor use
| IP classification: |
IP56 |
| Rated power: |
300 W RMS |
| Program power: |
600 W |
| Frequency range: |
55 - 18000 Hz |
| Sensitivity: |
98 dB (1W/1m) |
| Max. SPL: |
122 dB |
| Dispersion angle: |
80° x 80° |
| Crossover frequency: |
2200 Hz |
| Impedance: |
8 ohms; Public address systems 100V |
| Attachment system: |
Mounting bracket |
| Power tapping: |
50W; 100W; 200W RMS via Selector switch switchable |
| Connections: |
Input: speakers via screw terminal |
| Speakers: |
1 x woofer (12") approx. 30 cm
1 x Calottes highs (1") approx. 2,5 cm |
| Type of speaker: |
On-ceiling/on-wall speaker |
| Color: |
White |
| Dimensions: |
Width: 45 cm
Depth: 41,5 cm
Height: 42 cm |
| Weight: |
19,95 kg |
