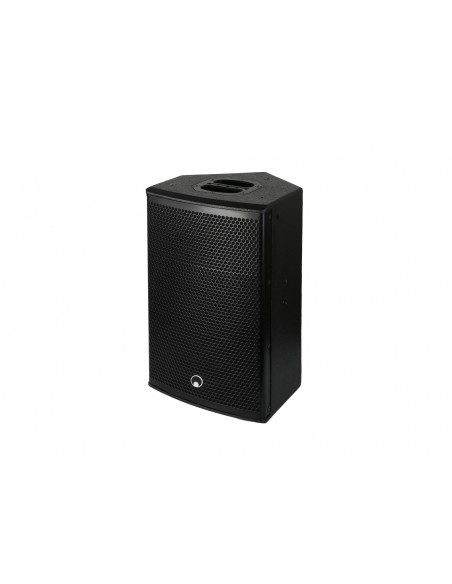

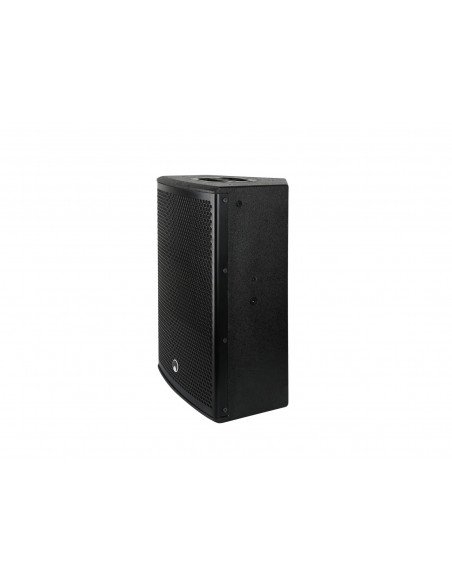

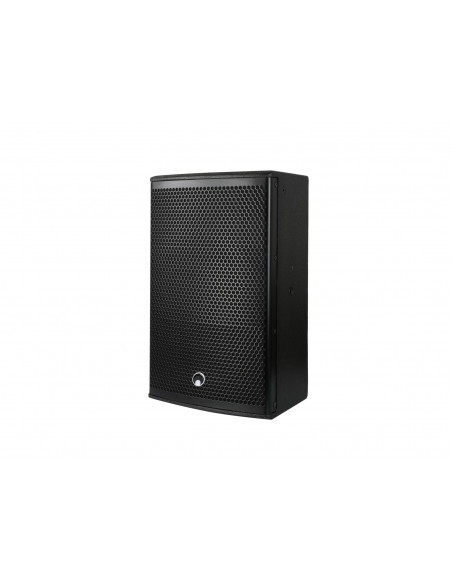

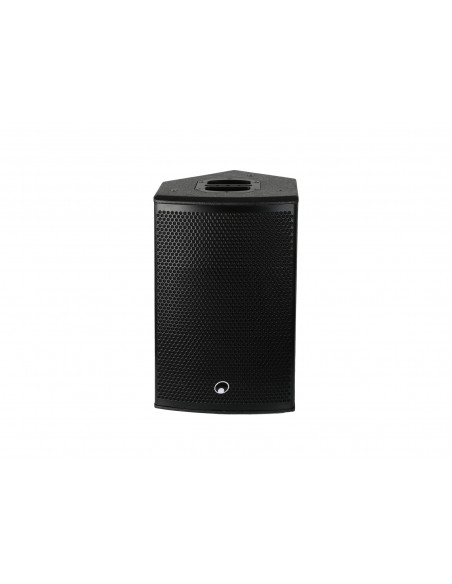

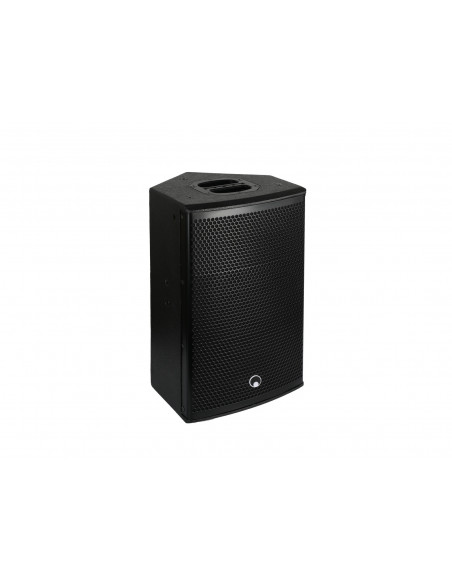

Passive speaker with 10" woofer, 1" driver and 250 W RMS
- Rugged full-range top speaker, qualified for suspension
- Trapezoidal, multi-functional multiplex cabinet with scratch-resistant lacquer surface
- 2-way bass-reflex system with 25 cm woofer (8 cm voice coil)
- 2.5 cm compression driver with ferrite magnet (3.8 cm voice coil with polymer diaphragm)
- Parallel Speaker connections
- Optimized for combination with PAS subwoofers
- Dual flange with 0° and 5° tilt angle enables flexible positioning
- M8 threaded inserts for suspended installation
- Protective grille and recessed handlebars
- Applications: standing, on a subwoofer or speaker stand, suspended
| Rated power: |
250 W RMS |
| Program power: |
500 W |
| Frequency range: |
65 - 20000 Hz |
| Sensitivity: |
96 dB (1W/1m) |
| Max. SPL: |
123 dB |
| Dispersion angle: |
90° x 60° |
| Crossover frequency: |
3200 Hz |
| Impedance: |
8 ohms |
| Attachment system: |
Ø 35mm variable tilt |
| Flying points: |
5 x M8 thread; 4 x M10 thread |
| Connections: |
Input: speakers via 2 x speaker built-in socket (F) |
| Speakers: |
1 x compression tweeter highs (1") approx. 2,5 cm with ferrit magnet
Basket material: aluminum
Voice coil compression tweeter highs (1.5") approx. 4 cm
Horn vent (1") approx. 2,5 cm
1 x woofer (10") approx. 25 cm
Voice coil lows (2.5") approx. 6.35 cm |
| Type of speaker: |
Compact cabinet speaker |
| Material: |
Birch multiplex |
| Color: |
Black, painted |
| Dimensions: |
Width: 32 cm
Depth: 52,5 cm
Height: 30 cm |
| Weight: |
12,95 kg |
