Controlador DENON DJ Prime GO

TECHNICAL SPECIFICATIONS

Audio

• • Frequency Response: 20 Hz - 20 kHz (+/- 1 dB)
  • Dynamic Range: > 109 dB (A-weighted)
  • Signal-to-Noise Ratio: > 92 dB (A-weighted)
  • Channel Separation: < -88 dB (1 kHz, unity)
  • Headroom:
    • Aux: > 15 dB
    • Mic Input: > 20 dB
    • Outputs: > 15 dB
  • T.H.D.
    • Aux: < 0.01% (1 kHz, unity)
    • Microphone: < 0.02% (1 kHz, unity)

• • Analog Input
    • Aux:
      • +15 dBV (maximum)
      • 0 dBV (unity)
    • Microphone:
      • -40 dBV (unity)
      • -54 dBV (minimum)

• • Analog Output
    • Master, Balanced:
      • +18 dBu (maximum)
      • +4 dBu (unity)
    • Master, Unbalanced:
      • +15 dBu (maximum)
      • 0 dBu (unity)
    • Booth:
      • +18 dBu (maximum)
      • +4 dBu (unity)
    • Headphone Output: < 40 mW

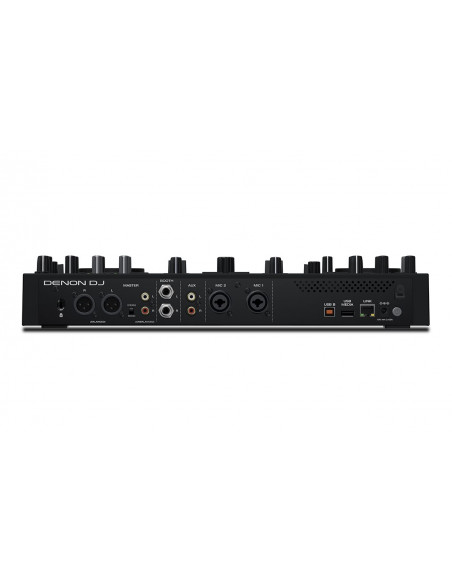

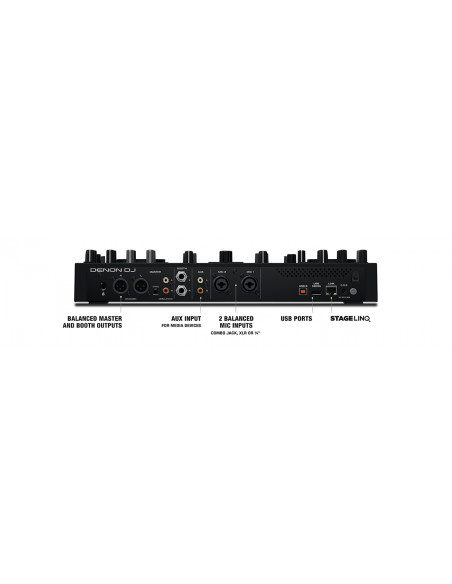

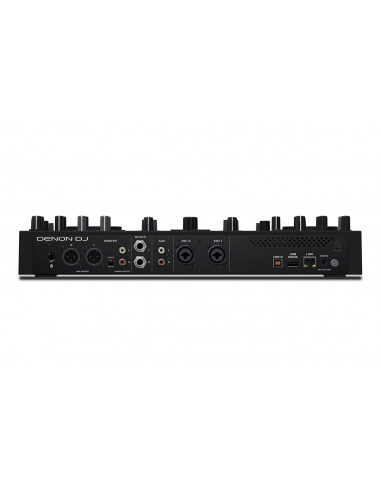

• • Connections
    • (2) XLR outputs (master left/right, balanced)
    • (1) RCA output pair (master left/right, unbalanced)
    • (2) 1/4" (6.35mm) outputs (booth left/right, balanced)
    • (1) 1/4" (6.35mm) stereo output (headphones)
    • (1) 1/8" (3.5mm) stereo output (headphones)
    • (1) RCA input pair (line-level, unbalanced)
    • (2) XLR + 1/4" (6.35mm) inputs
    • (1) USB ports (for USB drives)
    • (1) USB port (to computer)
    • (1) SD card slot
    • (1) Ethernet port
    • (1) Power adapter input

• • Power
    • Connection: DC, Center Positive
    • Voltage: 19V 3.42A
    • Consumption: 30W maximum

• • Dimensions (Width x Depth x Height)
    • 411mm x 274mm x 53mm
    • 16.2” x 10.8” x 2.1”

• Weight (Without USB and Power Cable)
  • 8.11 lbs.
  • 3.68 kg
