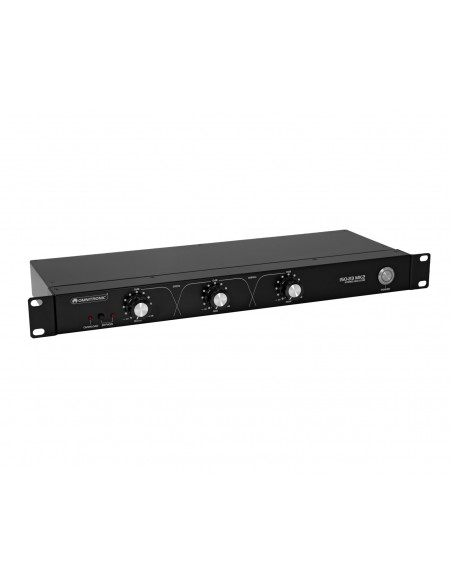

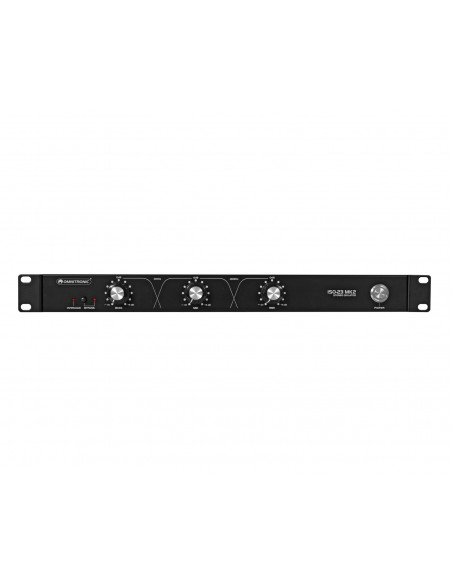

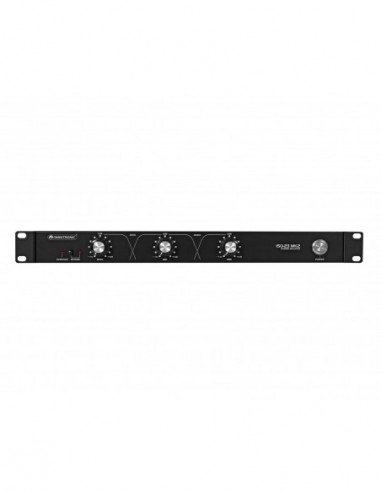

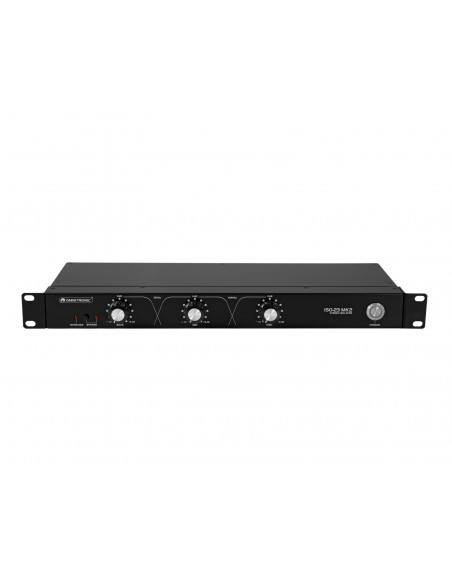

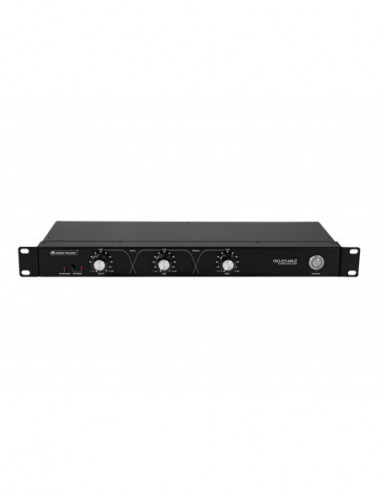

3-band frequency isolator with vintage rotary knobs for DJsWith the Omnitronic ISO-23 MK2 frequency isolator DJs get an effective tool for creative sound shaping in the club or studio. Using high-grade, long-life ALPS RK27 potentiometers, the rack-mounted isolator has excellent sound characteristics. The large, smooth rotary knobs enable DJs to radically boost or cut low, mid or high frequencies, making it easy to create instrumental or a cappella versions. The isolator provides XLR and RCA connectors and features a bypass switch for bridging.
3-band frequency isolator with kill cut and bypass for DJs
- 3-band frequency isolator with dedicated boost and kill cut for DJs
- Kill cut feature enables DJs to completely remove low, mid and high frequencies for amazing mixing
- Vintage ALPS potentiometers (Blue Velvet RK27)
- 1-channel stereo version
- Control range: kill to +9 dB
- Lows: 20 Hz - 300 Hz
- Mids: 300 Hz - 4 kHz
- Highs: 4 kHz - 20 kHz
- Bypass switch
- Balanced and unbalanced inputs/outputs (XLR/RCA)
- Incl. mounting brackets for 483 mm rack installation (1 U)
- (19") 48.3 cm rack installation 1 U
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 12 W |
| Isolators: | Master Gain:- ? bis +9
Low/mid 300 Hz, 18db/oct , Butterworth
Mid/high 4000 Hz, 18db/oct , Butterworth |

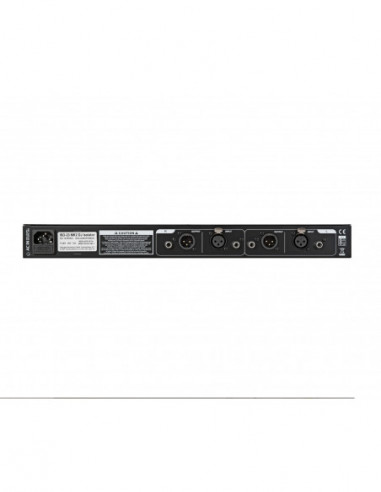

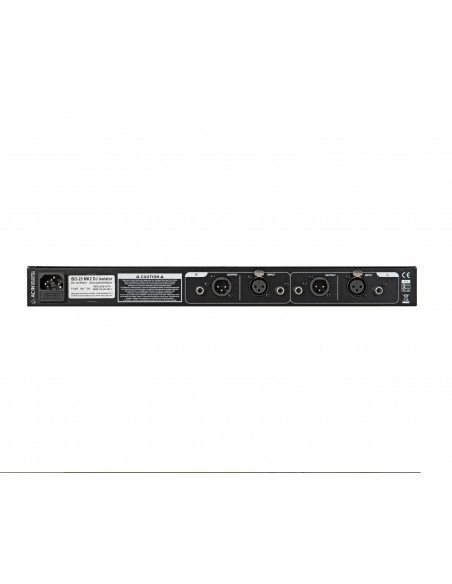

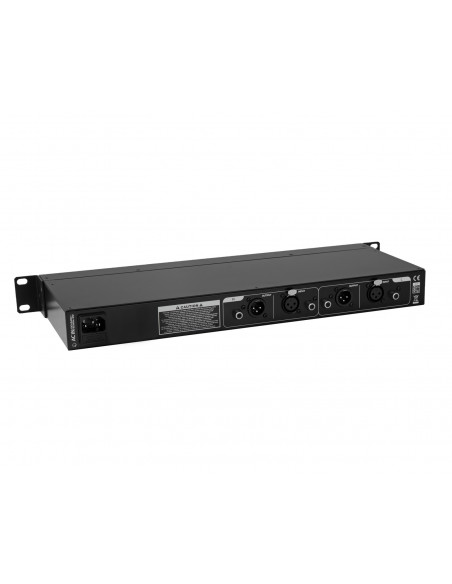

| Connections: | Input: line via 2 x 3-pin XLR
Input: line via 2 x RCA (F) mounting version
Output: line via 2 x 3-pin XLR
Output: line via 2 x RCA (F) mounting version |
| Max. level: | Input: +22 dBu |
| Housing design: | (19") 48.3 cm rack installation 1 U |
| Dimensions: | Width: 48,3 cm
Depth: 14,5 cm
Height: 4,45 cm |
| Weight: | 2,15 kg |
