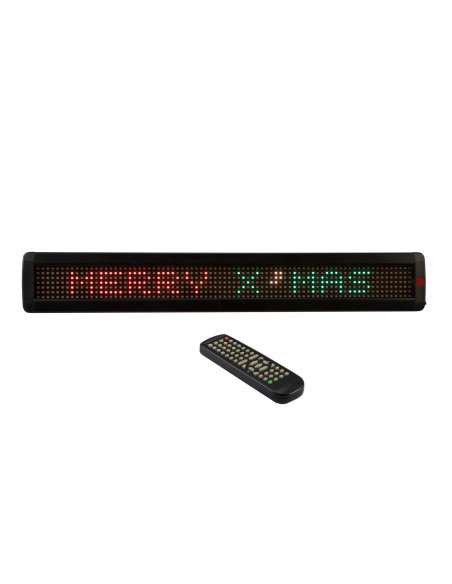

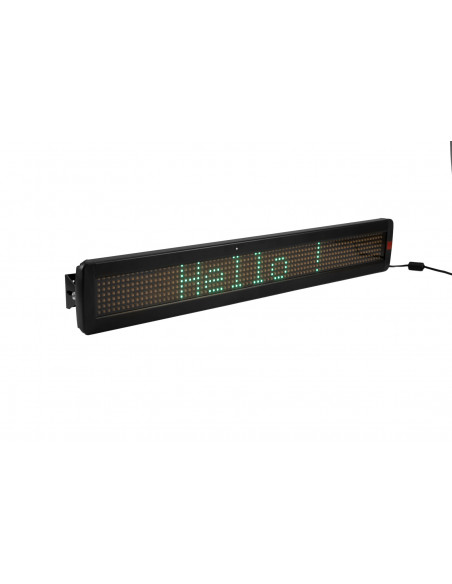

RG moving message display (7x80 pixels) with network connectivity, PC software and IR remote control
- For all kinds of announcements in shops, shop windows, discotheques, bars, pubs, restaurants and reception areas
- Fully programmable via supplied IR remote control or with PC software via USB port and RJ45 network port
- Dot matrix with 560 super bright SMD LEDs
- Large database with various display effects, symbols and graphics
- 99 editable memory locations
- 8 editable bitmap memory locations, 7 font sizes, 16 color combinations, 8 display speeds, 24 display effects, 30 integrated symbols
- 8 animated messages (Welcome, Merry X'Mas, Happy New Year, etc.)
- Programming of sequences
- Timer function

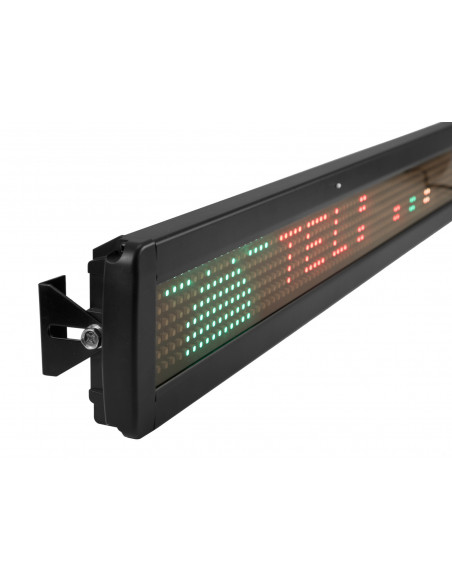

- Swivel mounting brackets

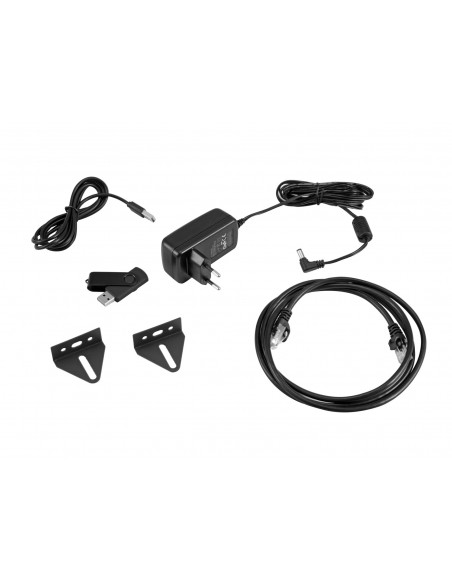

- Incl. mounting brackets, power adapter, remote control, PC software, USB and LAN cable
- LED: 560 x SMD R/G
- The device is cooled by passive convection
- Controlling by IR remote control (provided); network cable (provided); via USB (provided)
- The device can be connected via USB to the PC in connection with LED Single-line; The device can be connected via RJ-45 (F) mounting version to the PC in connection with LED Single-line
| Power supply: | 100-240 V AC, 50/60 Hz
5 V DC 3 A |
| Power consumption: | 12 W |
| IP classification: | IP20 |
| Protection class: | Class III |
| Power connection: | Mains input Coaxial power connector (M) power supply cord with AC adapter (provided) |
| Cable length: | 1,8 m |
| Battery: | 2 x 1.5V AAA Micro LR03 alkaline manganese (not included) |
| LED: | 560 x SMD R/G |

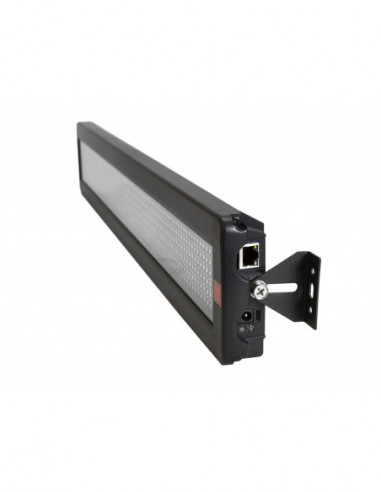

| Network connection: | Protocol: Ethernet TCP/IP via 1x RJ-45 (F) mounting version |
| Cooling: | Passive convection |
| Control: | IR remote control (provided); network cable (provided); via USB (provided) |
| Screen: | Max. 7x80 px |
| Presentation: | 1-line, 13 visible characters
16 colors |
| Text: | 7 fonts |
| Housing color: | Black |
| USB port: | USB 2.0, Typ micro USB (F) mounting version |
| PC connect: | LED Single-line via USB
LED Single-line via RJ-45 (F) mounting version |
| Display: | 60 cm x 5,5 cm |
| Dimensions: | Width: 64,7 cm
Depth: 9,7 cm
Height: 3,5 cm |
| Weight: | 1,25 kg |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
