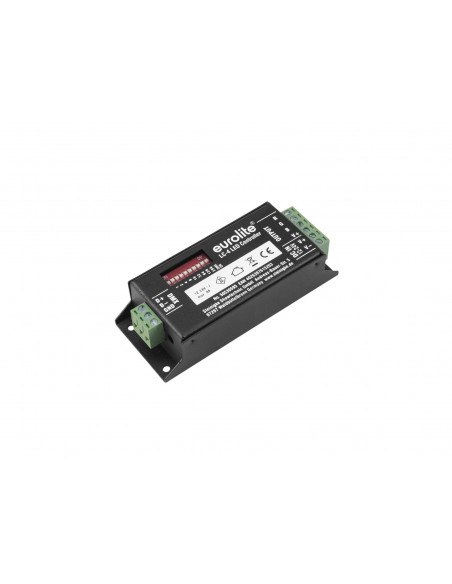

EUROLITE LC-4 LED Strip RGB DMX Controller

50530595
29,89 €




3-channel LED controller with DMX interface for RGB LEDs 12-24 V

  • Compact LED controller for controlling RGB LEDs (12-24 V) via DMX
  • Converts standard DMX512 signals to PWM signals e.g. for driving LED strips
  • 3 separate control channels for individual color mixing of red, green and blue LEDs
  • Built-in programs enable stand-alone operation (individual color selection, color change, color fade, running speed)
  • DMX addressing and settings via DIP switches
  • Plug-in screw terminals for connecting the LEDs and the power supply
  • Rugged black metal housing
  • Can be operated in 4 CH mode
  • The device is cooled by passive convection
  • Controlling by DMX; stand-alone


Power supply:12/24V DC
Power consumption:Max. 144 W 12 V DC
Max. 216 W 24 V DC
36 W 12 V DC per channal
72 W 24 V DC per channal
IP classification:IP20
Output current:Max. 3 x 3 A per channal
Power connection:Screw terminal
Power output:Screw terminal
DMX channels:4
DMX input:Screw terminal
Cooling:Passive convection
Control:DMX; stand-alone
Housing color:Black
Dimensions:Width: 4,5 cm
Depth: 10,9 cm
Height: 2,7 cm
Weight:150 g
