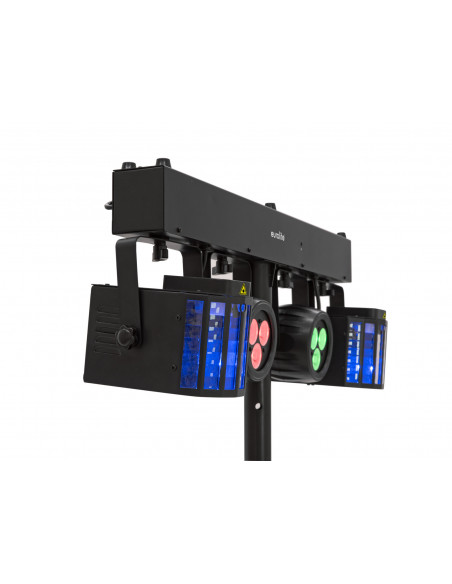

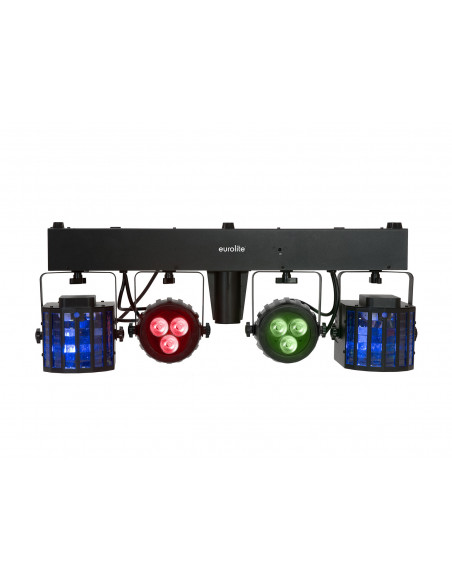

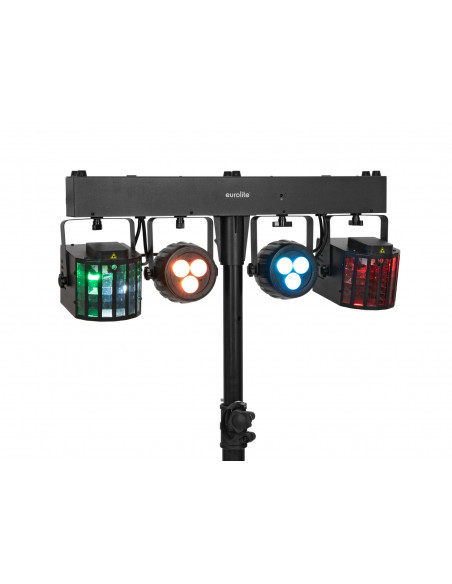

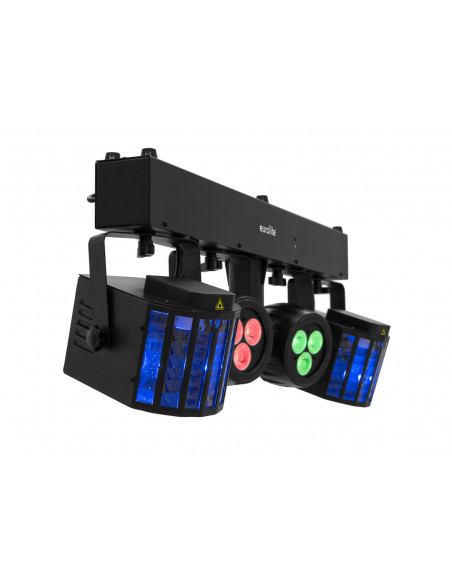

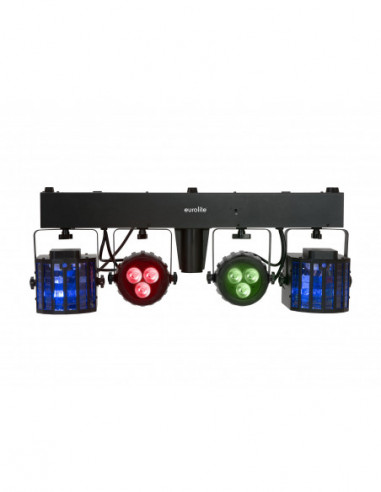

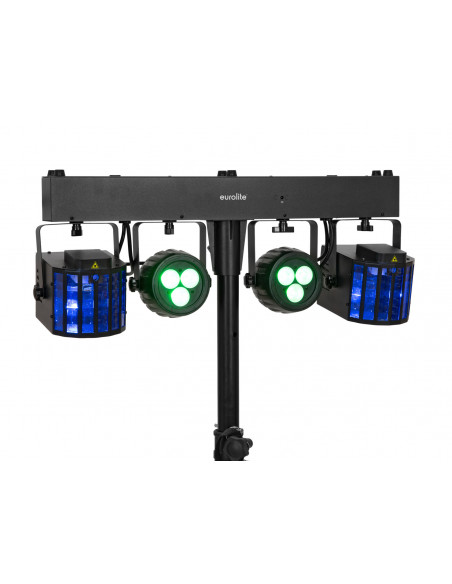

DMX light effect bar with 2 rotating LED derbies, 2 LED spots and 2 lasers (RG/2M)
- Crossbar with integrated DMX control unit and stand sleeve
- Ultra-light, ideally suited for mobile use
- Suited for installation on a speaker stand (not included) or truss
- Comes pre-assembled with practical transport bag
- 2 laser diodes project hundreds of red and green laser beams
- Laser class 2M: does not require additional protective measures or appointment of a laser safety officer
- 2 rotating derbies for mirror ball effects with 4 bright 3W RGBW LEDs each
- 2 spots with 3 bright COB 8W QCL RGBW LEDs (4in1) each
- Auto, music, master/slave and DMX mode
- 7 built-in auto and music show programs
- Direct color selection for 15 preset colors
- Stepless color blend, color change, color fade, dimmer and strobe effect
- Supports QuickDMX - the wireless DMX system from Eurolite
- Built-in phantom-powered USB port for QuickDMX, CRMX and WDMX receivers (optional)
- Control panel with LED display for easy configuration
- Convenient wireless control via included IR remote control
- Additional rubber feet protect the device when positioned on the floor
- Mains input and output for power linking up to 8 units
- LED: Wash effect each with separate controlling 3 x COB (chip-on-board) 8 W 4in1 QCL RGBW (homogenous color mix)
- LED: Multi beam effect each with separate controlling 4 x high-power 3 W R/G/B/W
- Can be operated in 3; 13; 25 CH mode
- The device is cooled by passive convection
- Controlling by DMX; IR remote control; stand-alone; Sound to light via Microphone built-in; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free projection
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 40 W |
| IP classification: | IP20 |
| Protection class: | Class I |
| Power connection: | Mains input IEC connector (M) mounting version power supply cord with safety plug |
| Power output: | IEC connector (F) mounting version |
| Device fuse: | 5 x 20 mm, T 1 A Fuse replaceable |
| Lamp type: | LED lamp |
| LED: | Wash effect each with 3 x COB (chip-on-board) 8 W 4in1 QCL RGBW (homogenous color mix)
Multi beam effect each with 4 x high-power 3 W R/G/B/W |
| Laser class: | Class 2M |
| Laser color: | R/G |
| Laser module: | Red (R) 40 mW
Green (G) 14 mW |
| DMX channels: | 3; 13; 25 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Passive convection |
| Control: | DMX; IR remote control; stand-alone; Sound to light via Microphone built-in; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Beam angle: | 18° |
| Beam angle (1/2 peak): | 18° |
| Beam angle (1/10 peak): | 34 |
| Housing color: | Black |
| Display type: | 4 digits 7-segment LED display |
| Dimensions: | Width: 62,5 cm
Depth: 15,5 cm
Height: 22,9 cm |
| Weight: | 4,60 kg |
| Remote control |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese (provided) |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
