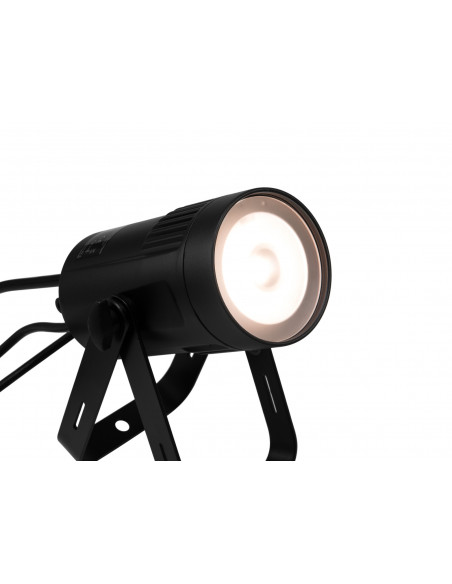

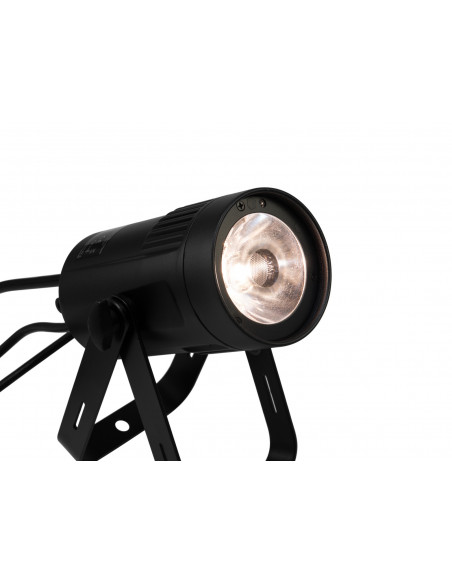

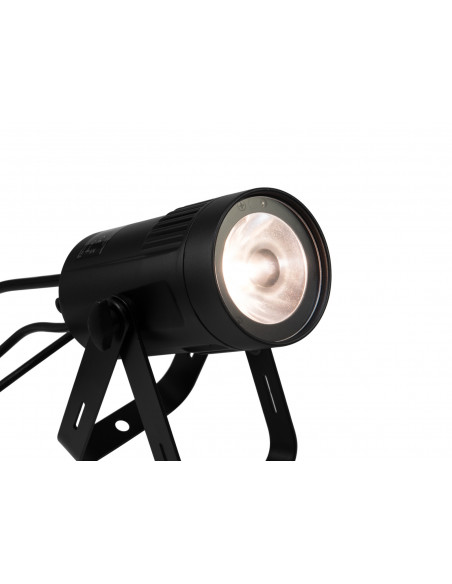

DMX-pinspot with warm white 15 W LED, beam angles 4°/10°/25° (frost filter)
- Stand-alone or DMX mode
- Convenient wireless control via included IR remote control
- 1 high-power warm white 15 W COB LED
- Stand-alone, master/slave and DMX mode
- Electronic dimmer (0-100%)
- Dimmer speed (step response) adjustable
- Strobe effect
- Control panel with OLED display for easy configuration
- Additional bracket for floor use
- Swivel mounting brackets

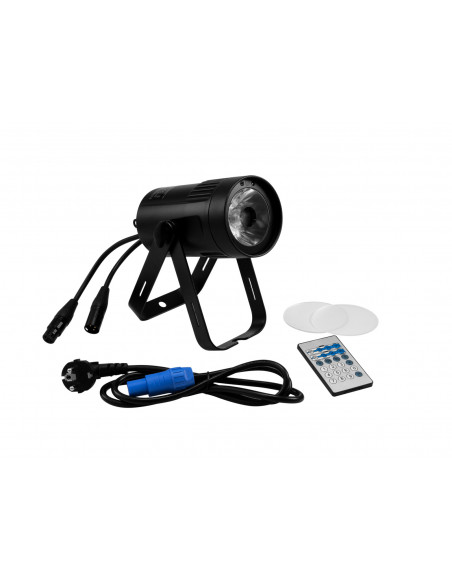

- 2 frost filters (10° and 25°) for a softer beam included in delivery
- Mains input and output for power linking up to 8 units
- LED: 1 x high-power 15 W warm white (WW)
- Can be operated in 1; 2 CH mode
- The device is cooled by passive convection
- Controlling by stand-alone; DMX; IR remote control; RDM
- Preprogrammed in Light´J; LED PC-Control 512
- Flicker-free projection
- Effect: Strobe effect
- Very high color rendering index (CRI)
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 18 W |
| IP classification: | IP20 |
| Protection class: | Class I |

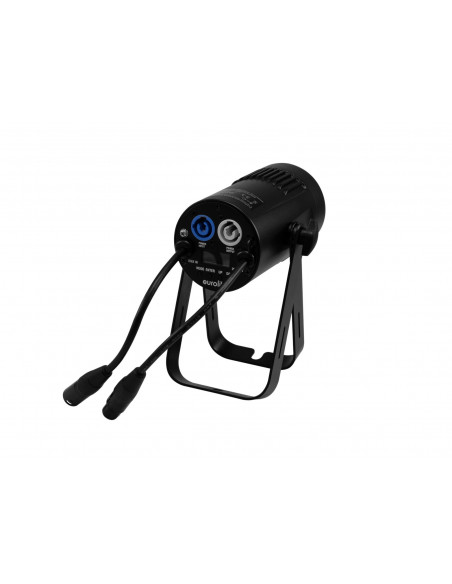

| Power connection: | Mains input P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x P-Con (gray), mounting version |
| Lamp type: | LED lamp |
| LED: | 1 x high-power 15 W warm white (WW) |
| Color temperature: | 3100K |
| DMX channels: | 1; 2 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Passive convection |
| Control: | Stand-alone; DMX; IR remote control; RDM; Light´J; LED PC-Control 512 |
| Beam angle: | 4° |
| Beam angle (1/2 peak): | 4°
10°
25° |
| Beam angle (1/10 peak): | 7° |
| Color rendering index (CRI) more than: | 95 Ra |
| Housing color: | Black |
| Dimensions: | Width: 13,5 cm
Depth: 17,5 cm
Height: 20,5 cm |
| Weight: | 1,45 kg |
| Noise classification: | Class 0 (no noise at all) |
| Remote control |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
