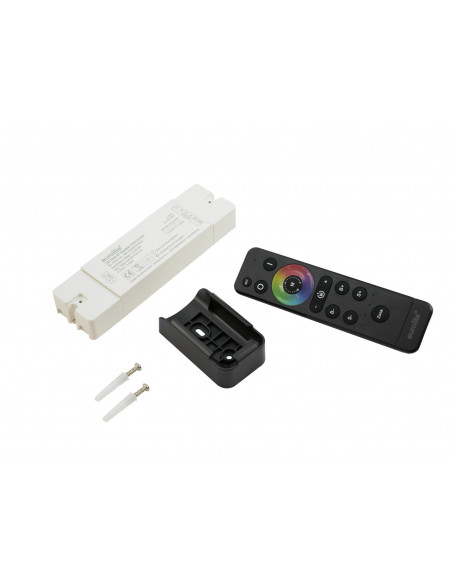

5-channel wireless LED controller with remote control for RGB and dual white
- User-friendly LED controller with 4 zones (5 x 4A) and remote control
- Controls single- and multi-colored (CW+WW, RGB, RGBW) LED strips (12-24 V) as desired
- Innovative wireless technology allows multiple controllers to be controlled synchronously and asynchronously with just one remote control
- Synchronous color sequences even over several hours with multiple controllers and different LED types
- Excellent signal transmission with 2.4 GHz - no perceptible difference to a wired system
- All controllers communicate with each other and cover a large range
- No visible contact between remote control and controller required
- Any number of controllers possible in 4 zones
- Extension controllers can be easily added to the system (item no. 50531155)
- Color selection via touch-sensitive color wheel
- 9 built-in programs
- Adjustable program speed and brightness
- On/off button
- Memory function saves last setting when switching off
- Supplied with wall holder and mounting material
Remote control
- Controlling by Wireless remote control included
- Use a operating range up to 20m
| Controller |
| Power supply: | 12/24V DC |
| Power consumption: | Max. 480 W 24 V DC
Max. 240 W 12 V DC
96 W 24 V DC per channal
48 W 12 V DC per channal |
| Output current: | Max. 4 x 5 A per channal |
| Power connection: | Screw terminal |
| Power output: | Screw terminal |
| Carrier frequency: | 2,4 GHz |
| Dimensions: | Length: 16 cm
Width: 4,6 cm
Height: 2,5 cm |
| Weight: | 100 g |
| Remote control |
| Battery: | 2 x Micro (AAA) (provided) |
| Control: | Wireless remote control included |
| Range: | 20 m |
| Dimensions: | Length: 14,8 cm
Width: 4 cm
Height: 1,9 cm |
| Weight: | 70 g |
