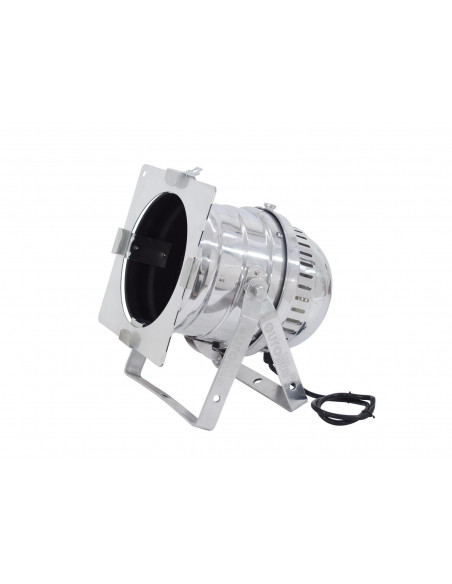

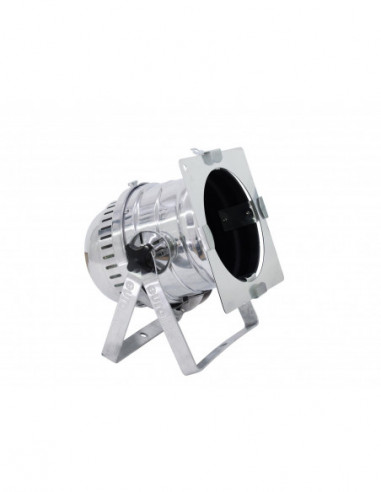

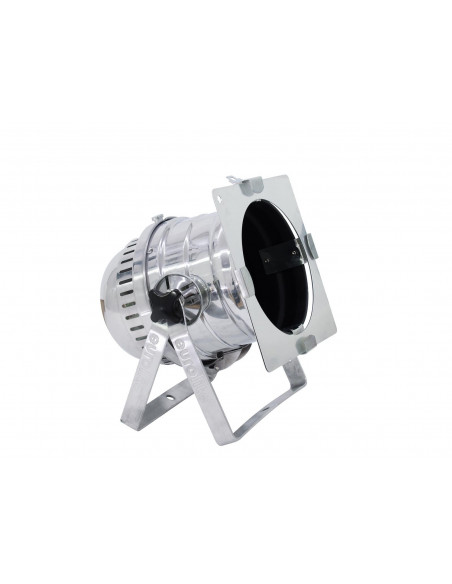

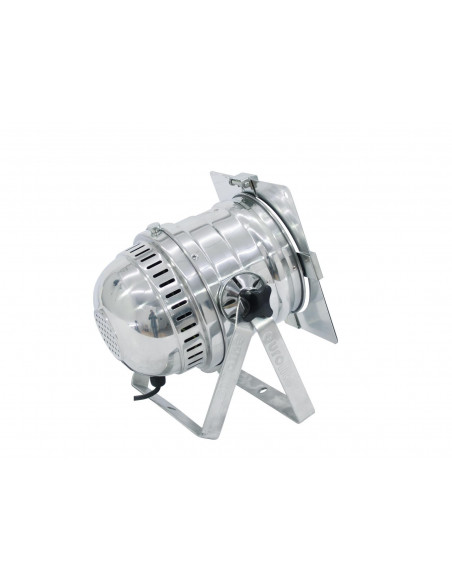

Short PAR-64 housing (double bracket) with open cable ends
- Rugged aluminum housing
- Strong aluminum mounting bracket
- Heat-resistant fixing screw
- The screw is protected against turning it too far out
- 4 clip-to-hold clamps with spring locks for comfortable opening of the color filter frame
- Safety grille (splinter protection) is integrated in the tube
- Blackened tube for precise light output
- Strong brass clamps with extension spring for safe hold and for quick opening of the rear housing cover
- Protection grille on the rear housing cover - complies with CE regulations

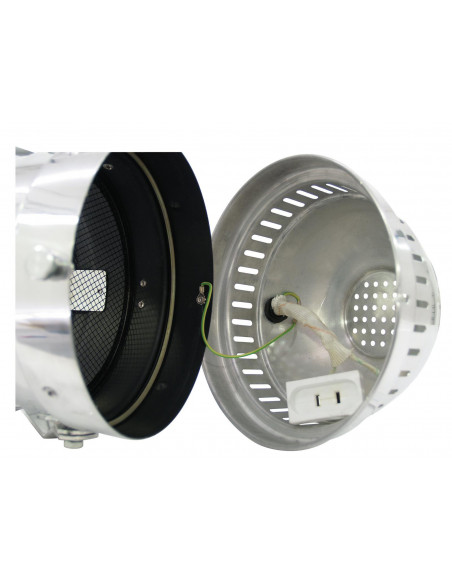

- Comes fully-wired with black silicone cable, stable earthing in the housing and directly clamped ceramic socket
- Color filter frame included in delivery
- Strong cable tension relief
- Well-suited for easy installation of our Raylight reflectors with matching connector (GX16)
- Simple mounting: connect with ceramic socket - ready!
- Power plug has to be ordered separately; delivery is with open cable ends
- Via color filter frame (optional)
- For PAR 64
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 1000 W |
| IP classification: | IP20 |
| Protection class: | Class I |
| Power connection: | Fixed Supply cord with open wires |
| Cable length: | Approx. 0,7 m |
| Base: | GX16d |
| Lamp type: | Selectable |
| Color generation: | Via color filter frame (optional) |
| Housing color: | Silver |
| Dimensions: | Length: 34 cm
Width: 27 cm
Height: 27 cm |
| Weight: | 1,60 kg |
| Filter frame |
| Dimensions: | Length: 25,5 cm
Width: 25,5 cm
Diameter: Ø 20,3 cm |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
