30248380
441,87 €

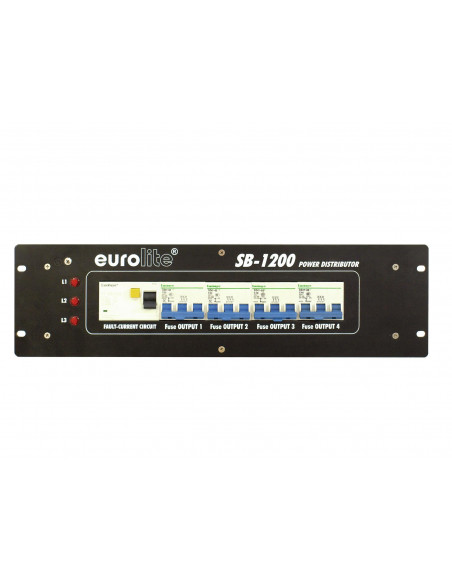

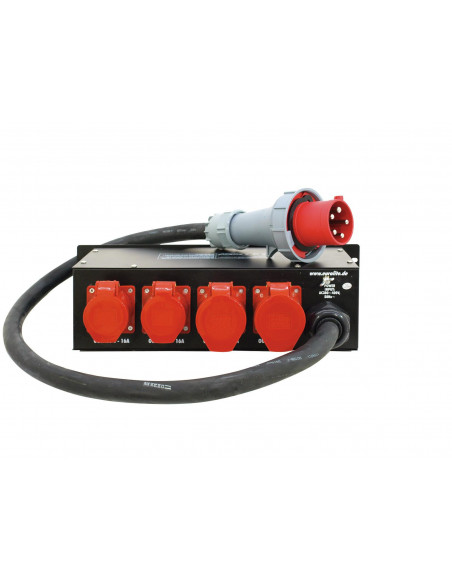

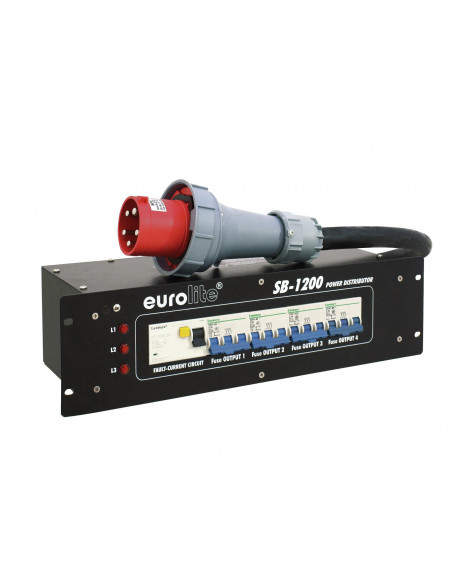

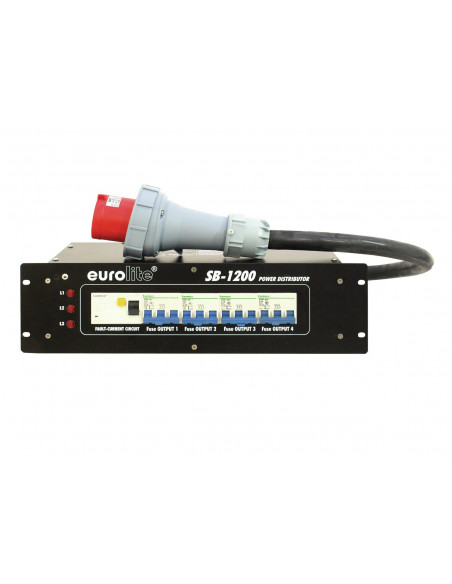

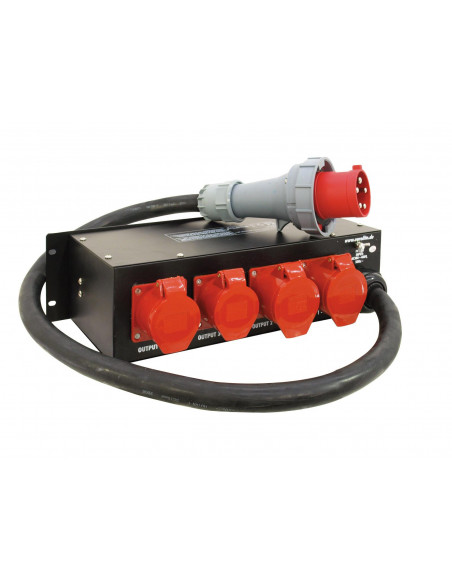

Practical 63 A distributor in 483 mm housing (19")

  • Specially designed for larger distribution needs
  • 3 U necessary for installation
  • 63 A three-phase current input via 1 meter long 5 x 16 mm² power cable and plug
  • The entire distributor is secured via 30 mA Residual Current Device (RCD)
  • 2 x 32 A three-phase current outputs via mounted sockets, each individually secured on the rearpanel by a 3-pole 32 A circuit breaker
  • 2 x 16 A three-phase current outputs via mounted sockets, each individually secured on the rearpanel by a 3-pole 16 A circuit breaker
  • Control lamps indicate each phase
  • With earthing screw in order to ground a rigg if necessary
  • (19") 48.3 cm rack installation 3 U


Power supply:380-400V AC, 50Hz
Power connection:Fixed CEE 63A 5-pin (M)
Power output:2 x CEE 32A 5-pol (F) recessed mounting fused
2 x CEE 16A 5-pol (F) recessed mounting fused
Protection:1 x fault-current circuit breaker (FI) 63A/0,03A 4-pol
2 x circuit breaker C 16A 3-pol
2 x circuit breaker C 32A 3-pol
Housing design:(19") 48.3 cm rack installation 3 U
Dimensions:Width: 48,3 cm
Depth: 31 cm
Height: 13,35 cm
Weight:8,00 kg
