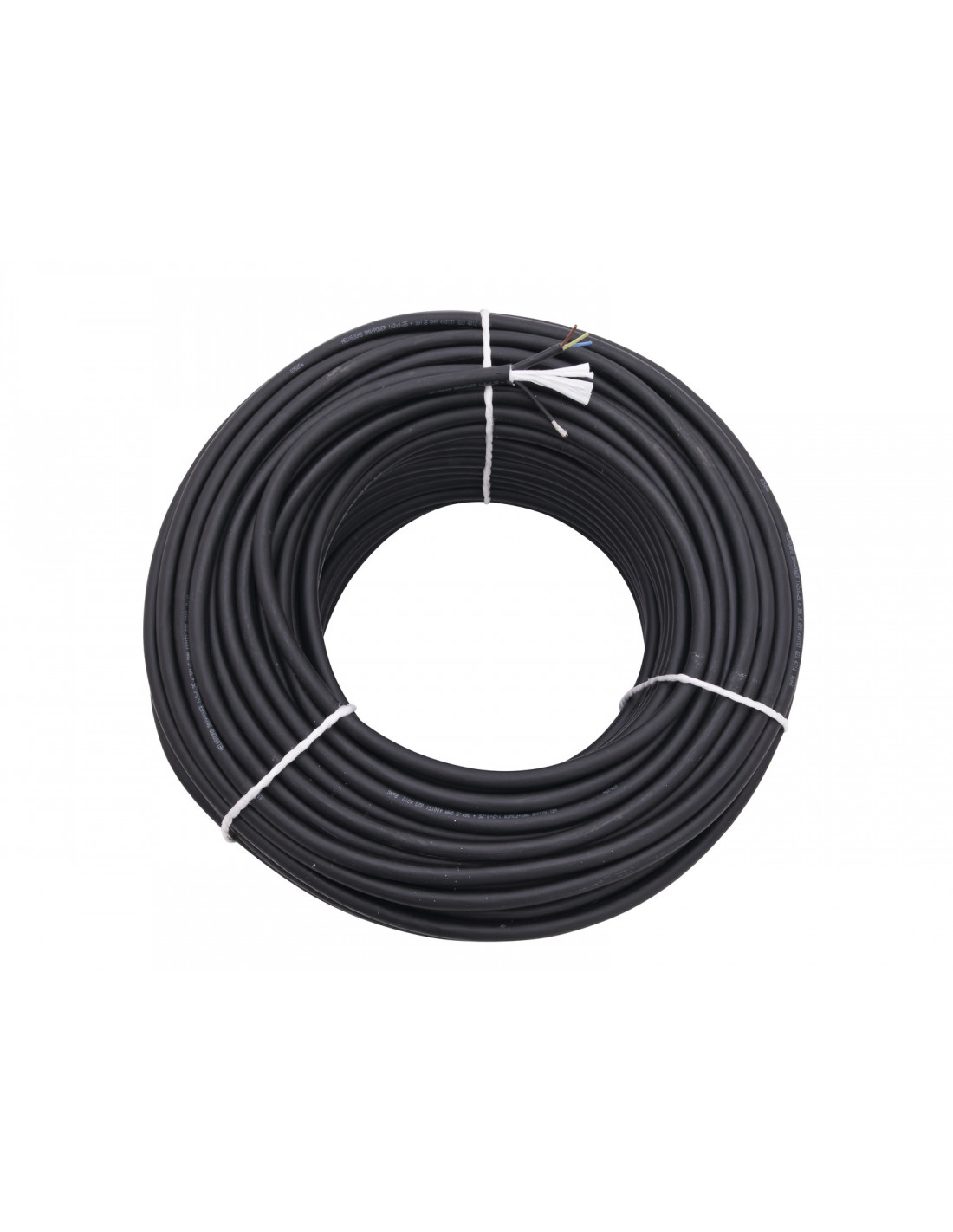

HELUKABEL Combi Cable 1x2x0.25+3G1.5 100m
HELUKABEL Combi Cable 1x2x0.25+3G1.5 100m
HELUKABEL Combi Cable 1x2x0.25+3G1.5...
HELUKABEL Combi Cable 1x2x0.25+3G1.5...

HELUKABEL Combi Cable 1x2x0.25+3G1.5 100m

30306320
521,95 €

The HELUSOUND® DMX+POWER hybrid cable combines a shielded light control wire and the power supply wire. The DMX-cable, which is shielded by a tin-coated copper braiding is perfectly suited for the control of light systems and mixing boards (110 Ohm characteristic intrinsic impedance). It highlights a soft PVC insulation and it is qualified for the use at indoor and outdoor installations. The DMX cable can also be used for the transmission of audio signals such as a microphone wire or as a power supply wire for active loudspeaker systems.

High quality combi cable

  • Parallel control for lighting boards through one cable via power line and DMX signal
  • Very flexible and enormously tread-resistant
  • Very good pairwise shielding of the DMX lines
  • Control line for DMX lighting consoles (wave impedance of 110 ohms)
  • Analogue + digital audio multipair with power supply

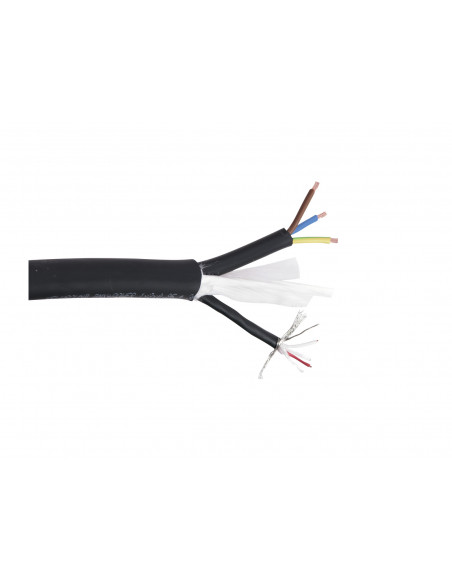

Cable construction:2 x 0,22 mm² DMX wire; 3 x 1,5 mm² Power cable
Cable length:100 m
Dimensions:Length: 100 m
Weight:21,10 kg
