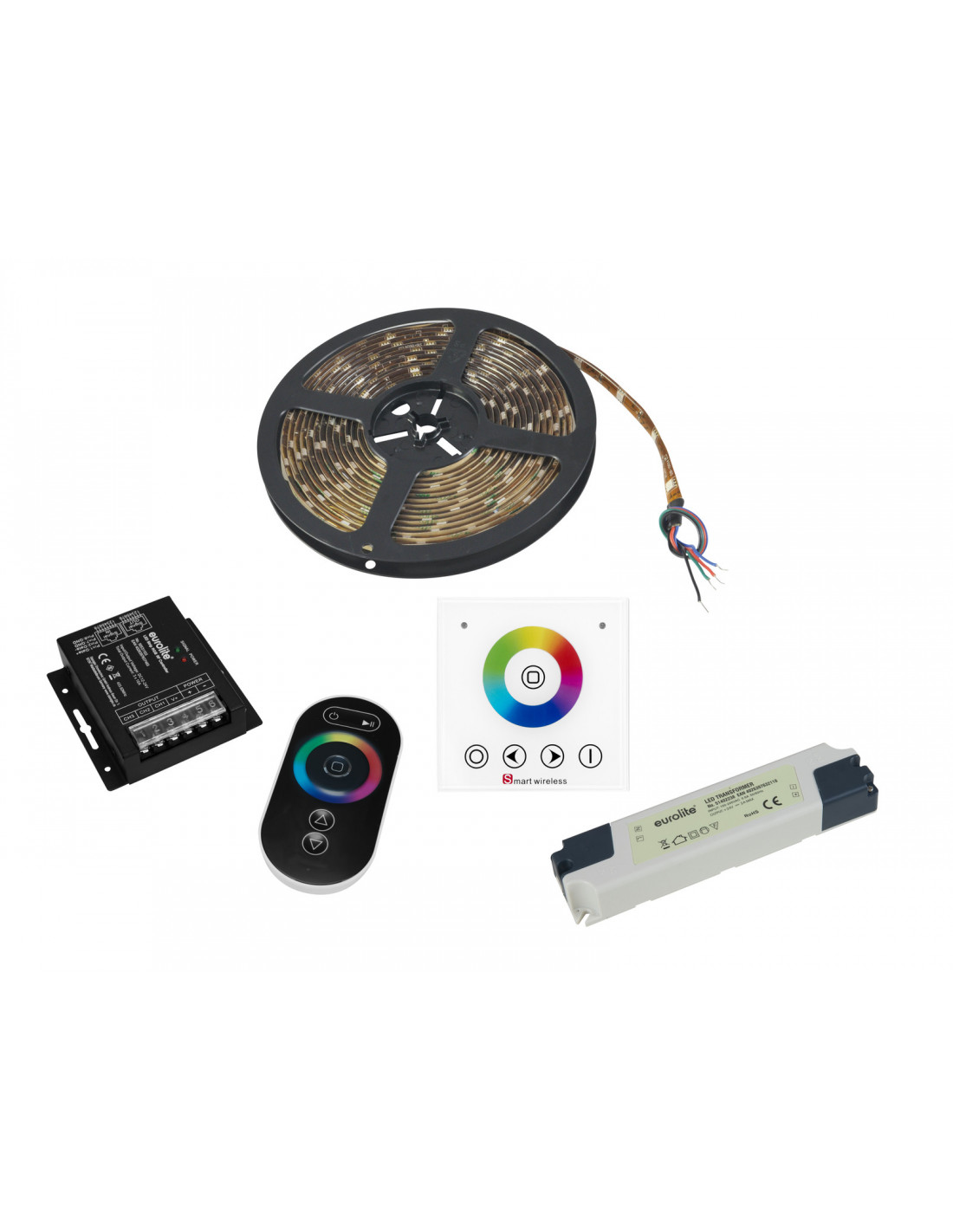

LED IP Strip 5m, wireless remote control, wireless wall dimmer and Transformer 24V
EUROLITE LED IP Strip 150 5m RGB 24V
Flexible RGB LED strip for indoor and outdoor use, 24 V
- Flexible LED strip for decorative lighting
- Perfect for indirect lighting, custom-made versions for fair or shop applications as well as all kinds of background lighting
- 150 super-bright SMD 5050 LEDs
- For indoor and outdoor use (IP65)
- Can be cut into segments of variable size (groups of 5 LEDs)
- Self-adhesive rear side
- Supplied on a plastic reel
- Matching control units, power units and mounting materials optionally available
- LED: 150 x SMD 5050 3in1 TCL RGB (homogenous color mix)
- Controlling by system controller
- Suitable for outdoor use
EUROLITE LED Strip RGB RF Controller
3-channel LED controller with wireless remote control for RGB LED strips 12-24V
- For controlling RGB LED strips 12-24 V
- Ergonomic, user-friendly wireless remote control
- Color selection via touch-sensitive color wheel
- 10 built-in programs
- Adjustable program speed and brightness
- Transmission frequency 433.92 MHz
- Screw terminals for connecting the LEDs and the power supply
- RJ45 jacks for serial connection
- Use a operating range up to 20m
Remote control
- Controlling by Wireless remote control included
EUROLITE LED Strip Wall Panel for RGB RF Controller
Wireless wall dimmer for RGB LED strips
- For controlling RGB LED strips 12-24 V
- LED controller 50531103 is required for operation
- Color wheel selection
- 10 built-in programs
- Adjustable program speed and brightness
- Transmission frequency 433.92 MHz
- Terminals for connecting the power supply (100-240 V)
- Suitable for flush-mounted sockets, device screw spacing: 60 mm
- Use a operating range up to 20m
EUROLITE Electr. LED Transformer, 24V, 2A
Stabilized LED power supply unit DC 24 V, 2 A
- Especially for LED installations
- Indoor use only
- Input voltage AC 100-240 V
- Output voltage DC 24 V, 2 A
- Protected against short circuit, overload, overheating and overvoltage
- Connection via bare cable ends
- L x W x H: 175 x 40 x 25 mm
- 150 g
| Weight: | 710 g |
| EUROLITE LED IP Strip 150 5m RGB 24V |
| Power supply: | 24 V DC |
| Power consumption: | 30 W |
| IP classification: | IP65 |
| Protection class: | Class III |
| Luminous flux (Lumen) per meter: | 300 lm/m |
| Power connection: | Supply cord with open wires |
| Cable length: | Approx. 0,15 m |
| LED: | 150 x SMD 5050 3in1 TCL RGB (homogenous color mix) |
| Control: | System controller |
| Standing/fixation: | Self adhesive |
| Lamps/meter: | 30 pc/pcs |
| Power/meter: | 7,2 W |
| Lamps/tube: | 150 pc/pcs |
| Lamp distance: | 33 mm |
| Cutting mark: | 17 cm |
| Housing color: | White |
| Dimensions: | Length: 5 m
Width: 1 cm
Height: 2 mm |
| Weight: | 180 g |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
| EUROLITE LED Strip RGB RF Controller |
| Power supply: | 12/24V DC |
| Power consumption: | Max. 360 W 12 V DC
Max. 720 W 24 V DC
120 W 12 V DC per channal
240 W 24 V DC per channal |
| Output current: | Max. 3 x 10 A per channal |
| Power connection: | Mains input screw terminal |
| Power output: | 4 x screw terminal |
| Battery: | 1.5V AAA Micro LR03 alkaline manganese (not included) |
| Connections: | Signal via 2 x RJ-45 (F) mounting version |
| Carrier frequency: | 433,920 MHz |
| Range: | 20 m |
| Dimensions: | Length: 9 cm
Width: 9 cm
Height: 2,4 cm |
| Weight: | 260 g |
| Remote control |
| Control: | Wireless remote control included |
| Dimensions: | Height: 2,2 cm |
| Legal specifications |
| EUROLITE LED Strip Wall Panel for RGB RF Controller |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | Max. 1 W |
| Power connection: | Mains input screw terminal |
| Power output: | 1 x screw terminal |
| Carrier frequency: | 433,920 MHz |
| Range: | 20 m |
| Dimensions: | Length: 8,6 cm
Width: 8,6 cm
Depth: 3,4 cm |
| Weight: | 130 g |
| Legal specifications |
| EUROLITE Electr. LED Transformer, 24V, 2A |
| Power supply: | 100-240 V AC, 50/60 Hz |
| IP classification: | IP20 |
| Protection class: | Class II |
| Power connection: | Mains input screw terminal |
| Power output: | Screw terminal |
| Housing color: | White matte |
| Output: | 24 V DC, stabilized; 2 A; |
| Material: | Plastic |
| Dimensions: | Length: 18 cm
Width: 4 cm
Height: 2,5 cm |
| Weight: | 140 g |
