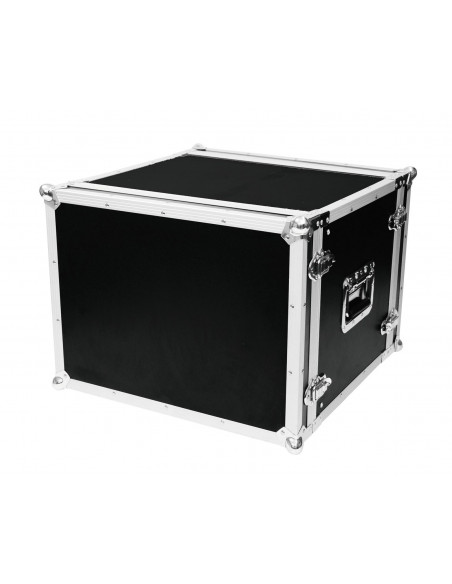

Flightcase for 483 mm unitsThe ROADINGER effect rack CO DD with 8 U and built-in rack rails is ideal for transporting your 483 mm control and effect units. The two removable lids (double door version) allow you to access your equipment quickly and easily. The high-quality workmanship with 7 mm wall thickness as well as the aluminium profile frame with rounded corners and three-legged, medium-sized steel ball corners ensure stability. The flight case also has eight snap locks with eyelets for locking and two chrome-plated case folding handles. The four large, steel-reinforced rubber feet provide the necessary standing security. The case can be loaded with a maximum of 25 kg.
Flightcase for 483 mm devices (19")
- Suitable for 483 mm effectors and controllers (19")
- 2 removable covers (double-door version)
- Built-in rack rails
- Delivery includes mounting screws
- Available in different height units (1 U = 44 mm)
- High-quality workmanship with plywood glued 7 mm, black, laminated
- Aluminum profile frames 22mm with rounded edges
- 2 hinged, chromium plated case handles
- 8 high-quality spring locks with shut-off function
- With 4 rubber feet
- With profile rails suitable for (19") approx. 48 cm units
- 8 U
| Maximum load: | 25 kg |
| Aluminum profile frames: | 22 mm |
| Case handles: | 2 pc/pcs |
| Lock: | Spring lock: 8 pc/pcs with shut-off function |
| Transport aid: | 4 x rubber feet |
| Material: | Plywood glued, 7 mm |
| Color: | Black, laminated |
| Front panel width: | (19") approx. 48 cm |
| Mounting height: | Approx. 35.5 cm (8 U) |
| Mounting depth: | 250 mm |
| Housing design: | 8 U |

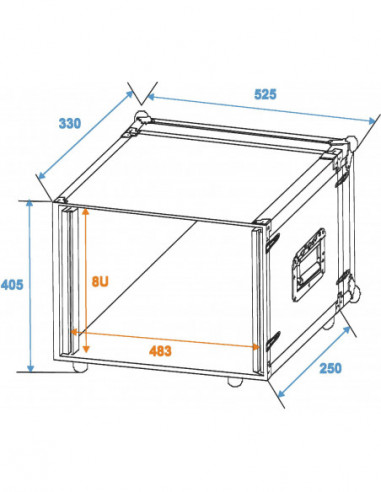

| Dimensions: | Width: 52,5 cm
Depth: 40 cm
Height: 42 cm |
| Weight: | 8,45 kg |
