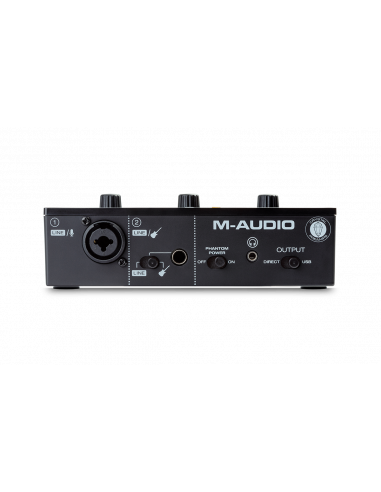

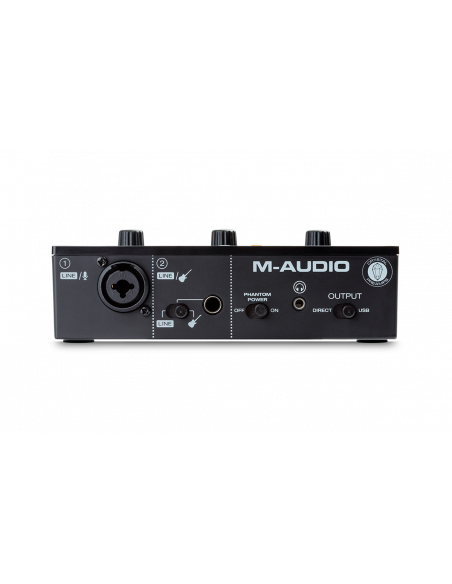

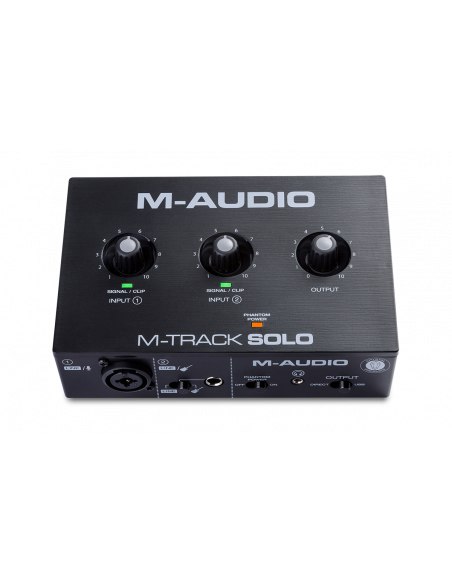

M-AUDIO M-TRACK-SOLO Interface USB

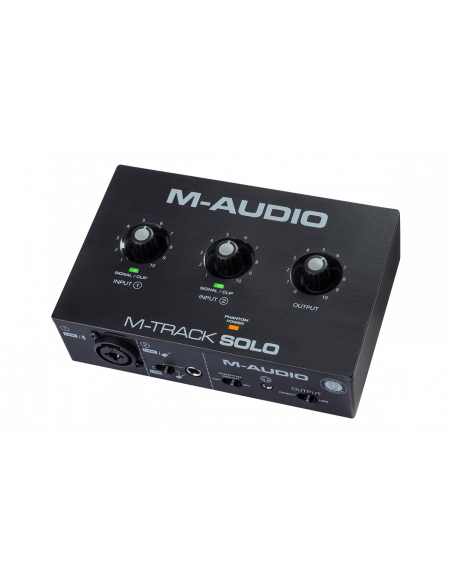

M-AUDIO M-TRACK SOLO
M-AUDIO M-TRACK-SOLO Interface USB
M-AUDIO M-TRACK-SOLO Interface USB
M-AUDIO M-TRACK SOLO
M-AUDIO M-TRACK-SOLO Interface USB

M-AUDIO M-TRACK-SOLO Interface USB

M-Track Solo
44,72 €

48-KHz, 2-channel USB Audio Interface with 1 Crystal Preamp, Phantom Power and Instrument Input

2-Channel USB recording interface for Mac and PC

(1) Combo input with Crystal Preamp for amazing audio quality

+48V phantom power for connecting studio condenser microphones

Dedicated instrument input for guitar or bass

Stereo line input for connecting digital piano, keyboard and more!

1/8” headphone and RCA stereo outputs provide easy monitoring

USB/Direct switch for listening to the input signal or the computer signal

Software bundle, including: Pro Tools | First M-Audio Edition, MPC Beats, AIR Music Tech Xpand!2, Eleven Lite guitar amp plugin and 20 AVID plugin effects



Mic Input (balanced XLR)

Frequency Response

20 Hz – 20 kHz (+0.1 dB)

Signal-to-Noise Ratio

109 dB (A-weighted)

THD+N

0.003% (min. gain, 0 dBu out, A-weighted)

Preamp EIN

-128 dBu (max. gain, 40 Ω source, A-weighted)

Gain Range

0 dB to +54 dB



Line Input (balanced 1/4" [6.35 mm] TRS)

Frequency Response

20 Hz – 20 kHz (+0.1 dB)

Sensitivity

-43 dBu

THD+N

0.002% (min. gain, 0 dBu out, A-weighted)

Gain Range

-10 dB to +44 dB



Instrument Input (unbalanced 1/4" [6.35 mm] TS)

Frequency Response

20 Hz – 20 kHz (+0.1 dB)

THD+N

0.005% (min. gain, 0 dBu output, A-weighted)

Input Impedance

1 MΩ

Gain Range

-10 dB to +44 dB



RCA Outputs

Frequency Response

20 Hz – 20 kHz (+0.1 dB)

Signal-to-Noise Ratio

109 dB (A-weighted)

THD+N

0.002% ( 0 dBu output, A-weighted)

Max Output Level

+4 dBu



Headphone Output (1/8” [3.5 mm] TRS)

Power

60 mW/Ch, 32 Ω

Frequency Response

20 Hz – 20 kHz (+0.5 dB)

THD+N

0.02% (A-weighted)

Signal-to-Noise Ratio

100 dB (A-weighted)
