Full color mixing laser with analog color modulation
- Suitable for both beginners and professional users

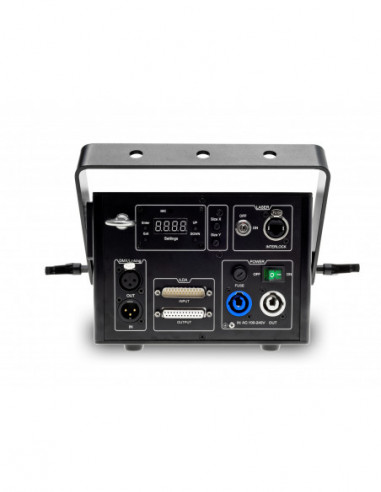

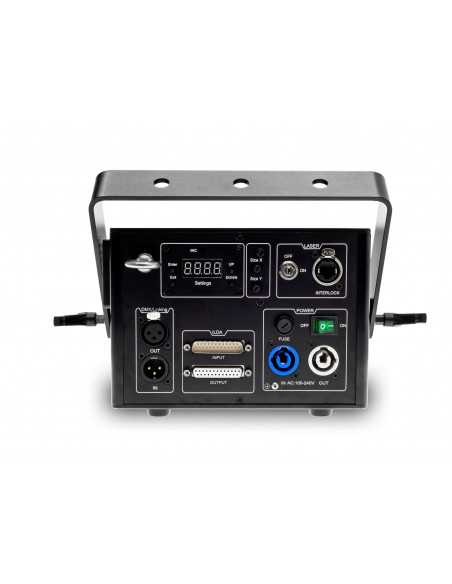

- Upgrades of version 2021: new back plate with Interlock IN, Power IN and THRU, new rotary knobs for X/Y size
- New operation menu including axis invert, DMX values, internal effects
- Galvo system with fast 30 kpps@4°
- Extremely sharp intense beams - 3mm beam diameter and low divergence of 2 mrad
- Integrated memory with 200 preset patterns
- Three built-in grating effects (Line, Burst & Radial)
- Control via Stand-alone, Sound to light via Microphone, DMX, ILDA, Master/slave function
- Safety features: key switch, interlock interface
- Swivel mounting bracket
- Can be operated in 14 CH mode
- The device is cooled by cooling fan
- Controlling by stand-alone; Sound to light via Microphone; DMX; ILDA; Master/slave function
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 120 W |
| IP classification: | IP20 |
| Protection class: | Class I |
| Power connection: | Mains input P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x P-Con (gray), mounting version |
| Laser class: | Class 4 |
| Laser color: | R/G/B |
| Laser module: | Red (R) 250 mW 635nm
Green (G) 250 mW 532nm
Blue (B) 1100 mW 445nm |
| DMX channels: | 14 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | Stand-alone; Sound to light via Microphone; DMX; ILDA; Master/slave function |
| Housing color: | Black |
| Display type: | 4 digits 7-segment LED display |
| Dimensions: | Length: 19 cm
Width: 27,4 cm
Height: 16 cm |
| Weight: | 3,70 kg |
