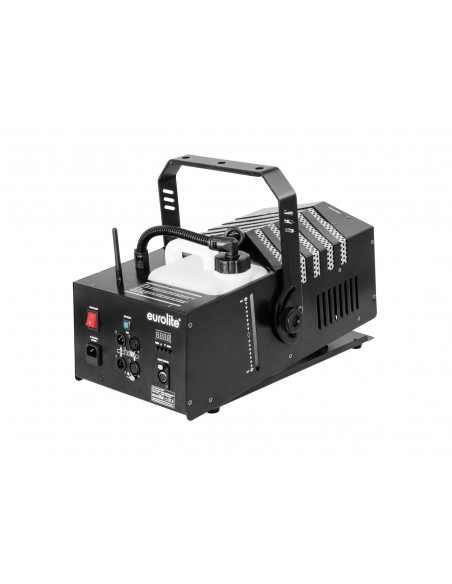

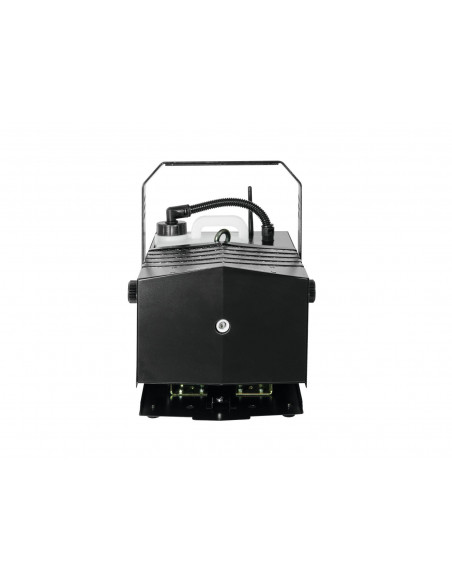

DMX machine with 1500 W power, adjustable output angle, timer and remote
- High-output fog machine for clubs and stage applications
- Concentrated and steady fog output
- Ideal for accentuating light and laser beams
- Vertically adjustable output angle for a perfect fog distribution

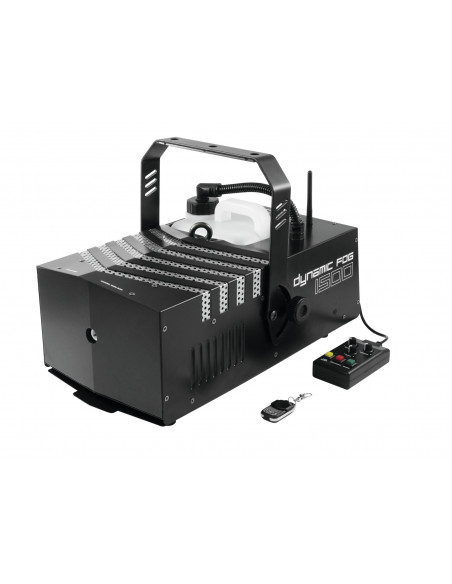

- Control via integrated DMX interface or supplied cable remote control
- Additional handy transmitter for continuous activation
- Control panel with LED display for easy configuration
- Adjustable timer with interval, duration and output volume
- Temperature control via thermo switch
- Removable tank with level indication
- Low fluid sensor
- Fan grille with blue LED illumination, switchable

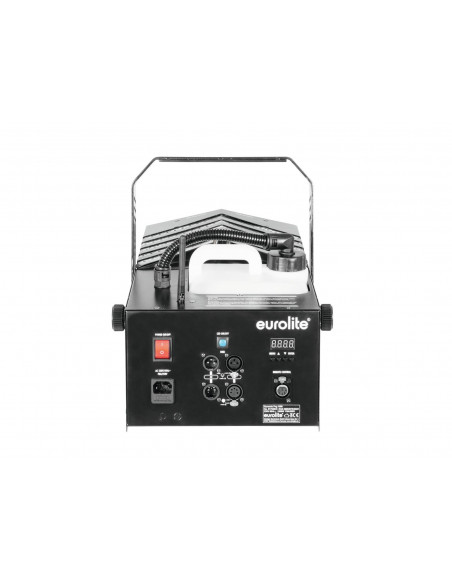

- DMX interface with 3- and 5-pin connectors
- Operates on standard water-based fluid

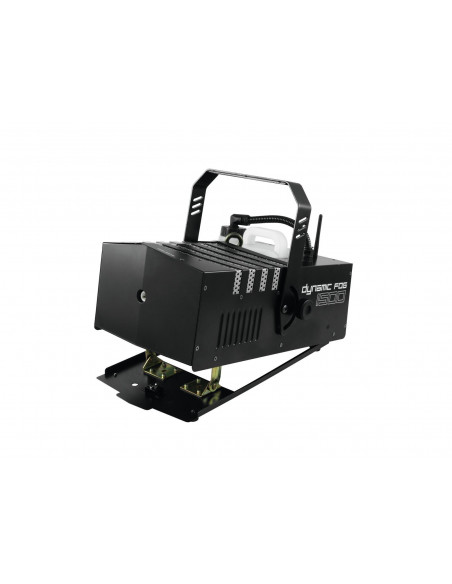

- Rugged metal housing with swivel mounting bracket and safety eyelet
- Output distance: Approx. 5 m
- Can be operated in 1 CH mode
- Controlling by DMX; Wireless remote control (provided); wired remote control
- Preprogrammed in LED PC-Control 512
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 1500 W |
| IP classification: | IP20 |
| Power connection: | Mains input IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Warm-up time: | Approx. 4,5 min |
| Output volume: | Approx. 430 m³/min |
| Output distance: | Approx. 5 m |
| Tank capacity: | 3,0 l |
| Fluid consumption: | Approx. 90 ml/min |
| DMX channels: | 1 |
| DMX input: | 1 x 3-pin XLR (M) mounting version
1 x 5-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version
1 x 5-pin XLR (F) mounting version |
| Control: | DMX; Wireless remote control (provided); wired remote control; LED PC-Control 512 |
| Housing color: | Black |
| Carrier frequency: | 433,92 MHz |
| Color: | Black |
| Dimensions: | Width: 31,5 cm
Depth: 47,5 cm
Height: 37 cm |
| Weight: | 11,15 kg |
| Remote control |
| Battery: | 1 x 12V LR27 alkaline manganese built-in |
