DMX fog machine with 1500 W, LED illumination, vertical fog output
- LED light effect with fog spouter in one device
- Your all-in-one solution with powerful vertical smoke output
- Output nozzle with RGB LED illumination for impressive effect presentations
- 5-7 meter high fog output
- Control panel with LED display for easy configuration
- Control via supplied wireless controller or integrated DMX512 interface
- Additional button for manual activation

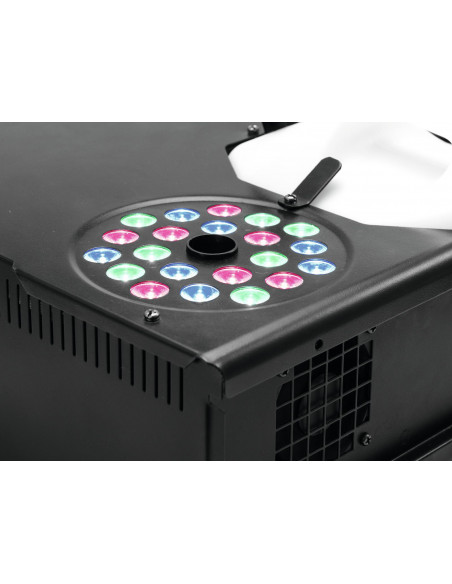

- Equipped with 21 x 3 W LED: 7 x red, 7 x green, 7 x blue
- LED color, color change and strobe effect selectable
- Removable tank with level indication
- Optoelectronic low fluid detector
- LED: 21 x 3 W R/G/B
- Output distance: Approx. 6 m
- Can be operated in 8 CH mode
- Controlling by DMX; stand-alone; Wireless remote control included
- Preprogrammed in Light´J; LED PC-Control 512
- For application areas such as: Carnival; Stage; Lender; Clubs/dancing school
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 1580 W |
| IP classification: | IP20 |
| Power connection: | Mains input IEC connector (M) mounting version power supply cord with safety plug (provided) |
| LED: | 21 x 3 W R/G/B |
| Warm-up time: | Approx. 5 min |
| Output volume: | Approx. 1130 m³/min |
| Output distance: | Approx. 6 m |
| Tank capacity: | 2,5 l Smoke fluid |
| Fluid consumption: | Approx. 95 ml/min |
| DMX channels: | 8 |
| DMX input: | 1 x 3-pin XLR (M) mounting version
1 x 5-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version
1 x 5-pin XLR (F) mounting version |
| Control: | DMX; stand-alone; Wireless remote control included; Light´J; LED PC-Control 512 |
| Housing color: | Black |
| Color: | Black |
| Dimensions: | Width: 41 cm
Depth: 63,5 cm
Height: 20,5 cm |
| Weight: | 7,90 kg |
| Remote control |
| Battery: | 1 x 12V LR27 alkaline manganese built-in |
| Carrier frequency: | 433,920 MHz |
