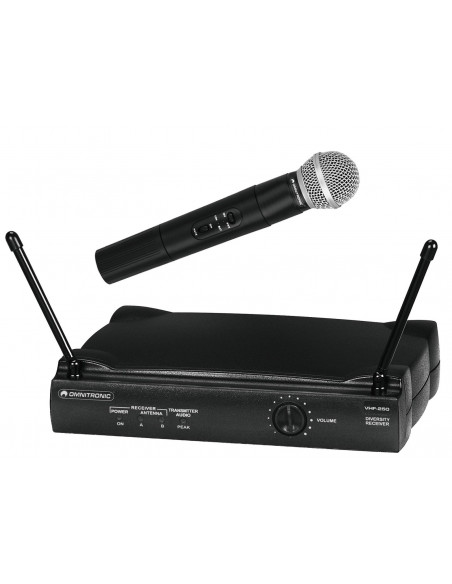

Complete VHF diversity wireless microphone system
- Set includes receiver unit and one wireless microphone
- Matches transmitter TM-250 with the same carrier frequency
- Switching diversity system with two folding antennas
- Operation with fixed VHF frequency 214.000 MHz
- LED indicator for power, signal input and AF peak
- Output level control
- Squelch control to eliminate noise bursts
- 6.3 mm and XLR output
- Microphone with gain control
- Operation of the receiver unit via supplied power unit
- Power supply of microphone via 9 V battery (supplied)
- 1 m jack-jack cable included
- License-free and approved in Germany and other EU countries

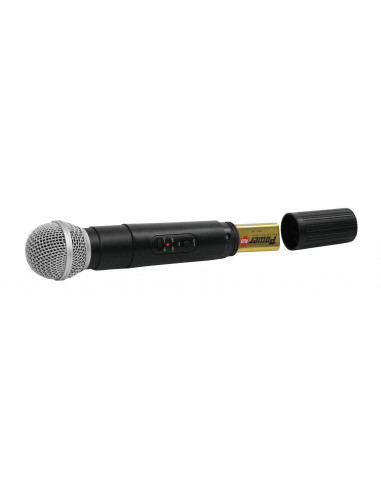

Microphone
- Polar pattern: Cardioid
- Use a operating range up to 50m with line of sight
| Type: | Wireless set |
| Connections: | Output: Microphone via 1 x 6.3 mm plug (unbal.) |
| Weight: | 1,00 kg |
| Receiver |
| Power supply: | 100-240 V AC, 50/60 Hz
17 V DC 300 mA |
| Power consumption: | 5,00 W |
| Power connection: | Mains input Coaxial power connector (M) power supply cord with AC adapter (provided) |
| Number of channels: | 1 |
| Frequency range: | 50 - 20000 Hz |
| S/N ratio: | >90 dB |
| Connections: | Output: Microphone via 1 x 3-pin XLR |
| Frequency band: | VHF |
| Carrier frequency: | 214 MHz |
| Frequency selection: | Fixed frequencies |
| Modulation: | FM |
| Frequency stability: | ± 0,005 % |
| Diversity: | Antenna diversity |
| Material: | Plastic |
| Microphone |
| Capsule type: | Dynamic |
| Polar pattern: | Cardioid |
| Battery: | 1 x 9.0 V E block (provided) |
| RF power output: | 8,5 mW |
| Range: | 50 m with line of sight |
| Switch: | On/off switch; Mute control |
| Dimensions: | Length: 26 cm
Diameter: Ø 5 cm |
