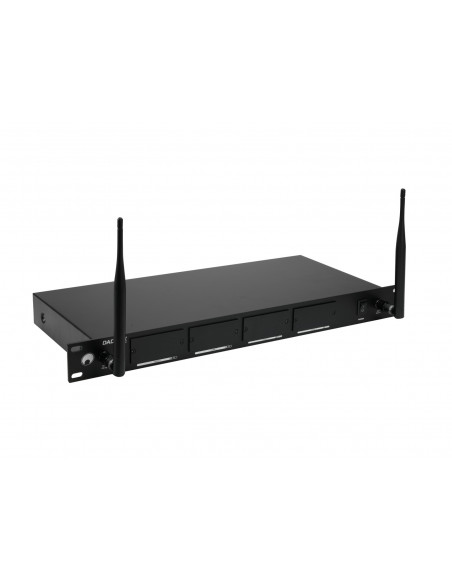

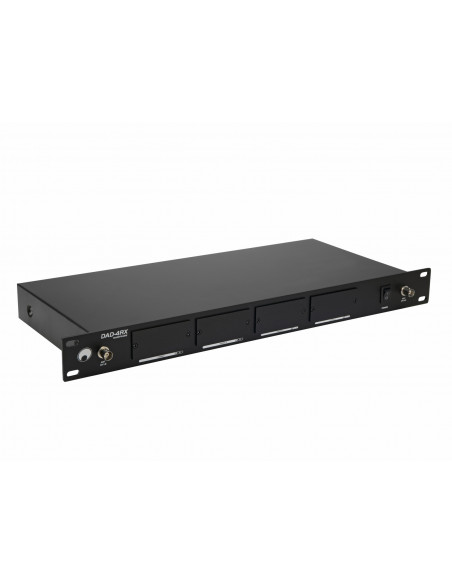

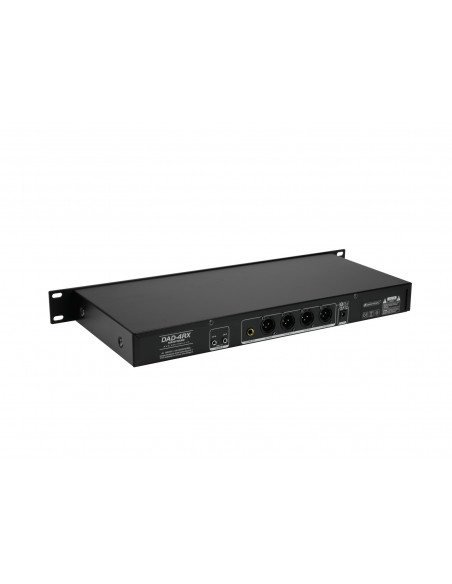

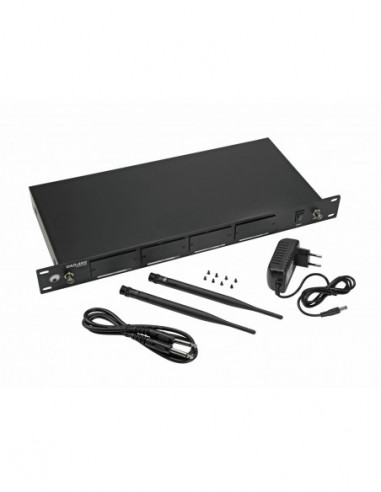

OMNITRONIC DAD-4RX 4-Channel Receiver Housing for MOM/DAD Modules

13106940
80,94 €



4-channel housing for wireless modules of the MOM and DAD series

  • 4 insert slots for receiver and transmitter modules of the MOM and DAD series
  • Works with MOM and DAD wireless microphones and bodypacks
  • Supports the WMT/R-2M wireless system
  • Operation in the license-free frequency ranges 823-832 MHz and 863-865 MHz
  • Balanced XLR output per channel
  • Unbalanced 6.3 mm jack for mixed signal output
  • 2 antenna inputs (BNC)
  • 2 AUX inputs (3.5 mm jack) for channel 3 and 4
  • Durable metal housing
  • (19") 48.3 cm rack installation 1 U


Type:Audio transmission
Power supply:100-240 V AC, 50/60 Hz
12 V DC 1 A
Power consumption:Max. 6 W
Power connection:Mains input Coaxial power connector (M) power supply cord with AC adapter (provided)
Number of channels:4
Connections:Input: line via 2 x 3.5 mm jack (stereo) mounting version
Output: Microphone via 4 x 3-pin XLR (M) mounting version
Output: master via 1 x 6.3 mm plug (unbal.)
Frequency band:UHF 823 - 832 MHz; UHF 863 - 865 MHz
Switch:On/off switch
Material:Metal
Color:Black
Housing design:(19") 48.3 cm rack installation 1 U
Dimensions:Width: 48,1 cm
Depth: 24,5 cm
Height: 4,5 cm
Weight:2,50 kg
