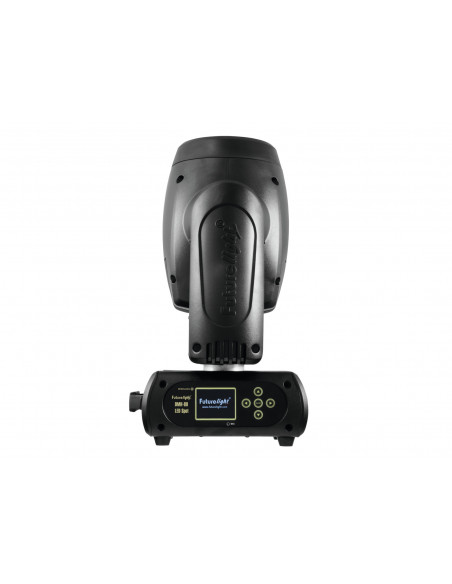

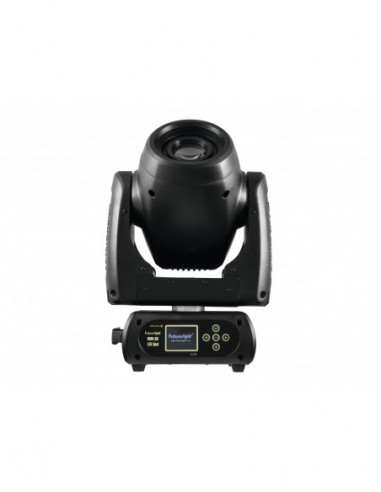

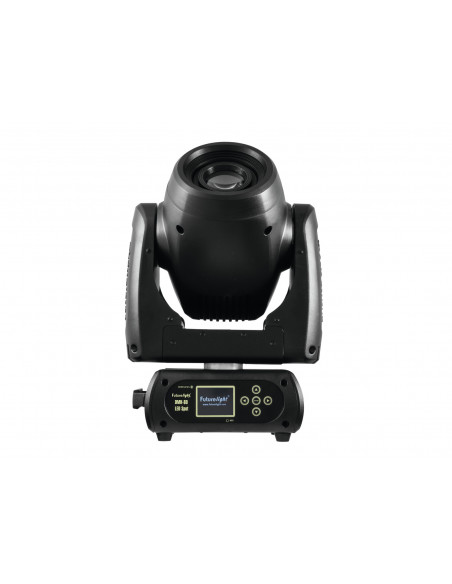

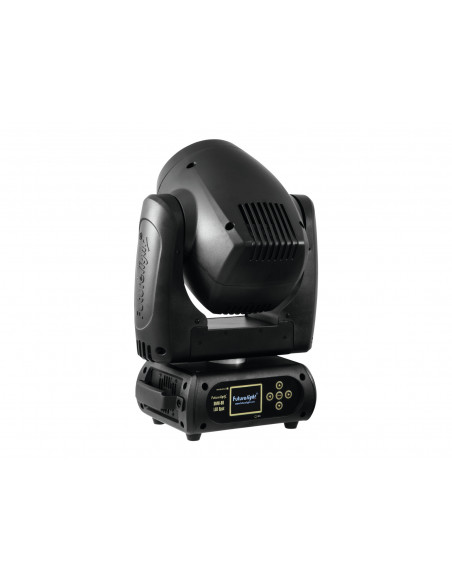

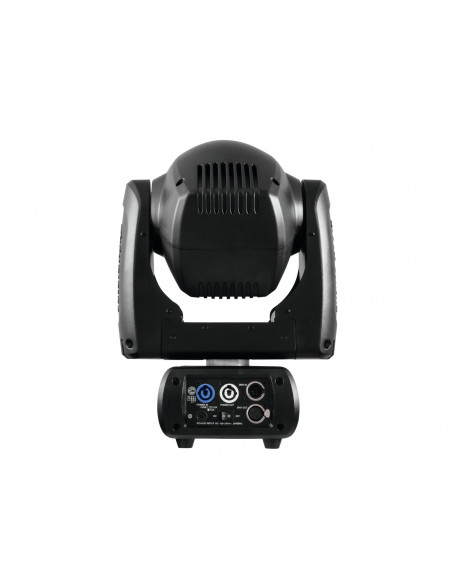

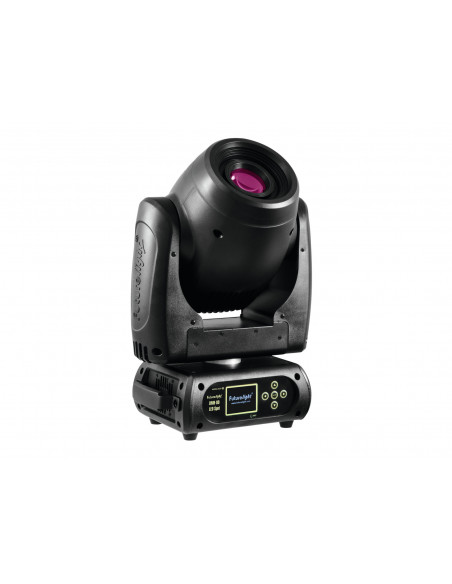

FUTURELIGHT DMH-80 LED Spot

Referência 51841841

827,97 €

Descrição
Detalhes do produto

PRO moving-head with 75 W LED and unique 16-facet prism

1 extra bright 75 W LED for best luminance
High PAN/TILT speed
Upgrade via optional wireless receiver module for WDMX operation (Wireless Solution - made in Sweden)
Effect wheel with rotating 16-facet prism
Exact positioning via 16 bit PAN/TILT movement resolution
Motorized focus
Electronic dimmer (0-100%)
Strobe effect with adjustable speed
Random strobe effect
Automatic position correction
PAN angle switchable between 630° and 540°
Control panel with LC display for easy configuration
Stand-alone, master/slave and DMX mode
Number of scenes can be changed individually
The scenes can be modified via the Control Board or via an external controller and loaded into the memory
Software upload by optional accessories via DMX link
LED: 1 x COB (chip-on-board) 75 W cold white (CW)
Color wheel 8 dichroic filters plus open
Rainbow effect with adjustable speed in both directions
Gobo wheel with rotating gobos, 7 gobos and open
shake effect
Gobos changeable
Slot-in gobo system for exchanging gobos without tools
Can be operated in 11; 13; 17; 18 CH mode
The device is cooled by temperature-controlled fan
Controlling by stand-alone; DMX; RDM; Sound to light via Microphone
Preprogrammed in Light´J; LED PC-Control 512
Effect: Gobo effect; Single Beam

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	135 W
IP classification:	IP20
Power connection:	Mains input PowerCON (blue), mounting version power supply cord with safety plug (provided)
Power output:	1 x PowerCON (gray), mounting version
Lamp type:	LED lamp
LED:	1 x COB (chip-on-board) 75 W cold white (CW)
Max. TILT movement:	Exact positioning (16 bit resolution) 270° Auto position correction (feedback)
Max. PAN movement:	Exact positioning (16 bit resolution) 540° Positioning switchable to 630° Auto position correction (feedback)
Equipment:	Gobo wheel with rotating gobos; Prism 16-fold; Focus motor-driven
Color generation:	Color wheel 8 dichroic filters plus open
Gobos:	Gobo wheel with rotating gobos, 7 gobos and open Outside diameter 24mm Image diameter 19mm Shake effect Gobos changeable Slot-in gobo system for exchanging gobos without tools
DMX channels:	11; 13; 17; 18
DMX input:	1 x 5-pin XLR (M) mounting version
DMX output:	1 x 5-pin XLR (F) mounting version
Cooling:	Temperature-controlled fan
Control:	Stand-alone; DMX; RDM; Sound to light via Microphone; Light´J; LED PC-Control 512
Beam angle:	10 - 16°
Beam angle (1/2 peak):	10 - 16°
Beam angle (1/10 peak):	10 - 16°
Illuminance in Lux (lx):	Narrow cold white (CW) 3m: 8334 lx, 6m: 2169 lx Wide cold white (CW) 3m: 5211 lx, 6m: 1339 lx
Housing color:	Black
Display type:	Multicolor LCD display
Dimensions:	Width: 29,9 cm Depth: 25,2 cm Height: 39,8 cm
Weight:	9,55 kg
Noise classification:	Class 2 (slight noise)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
