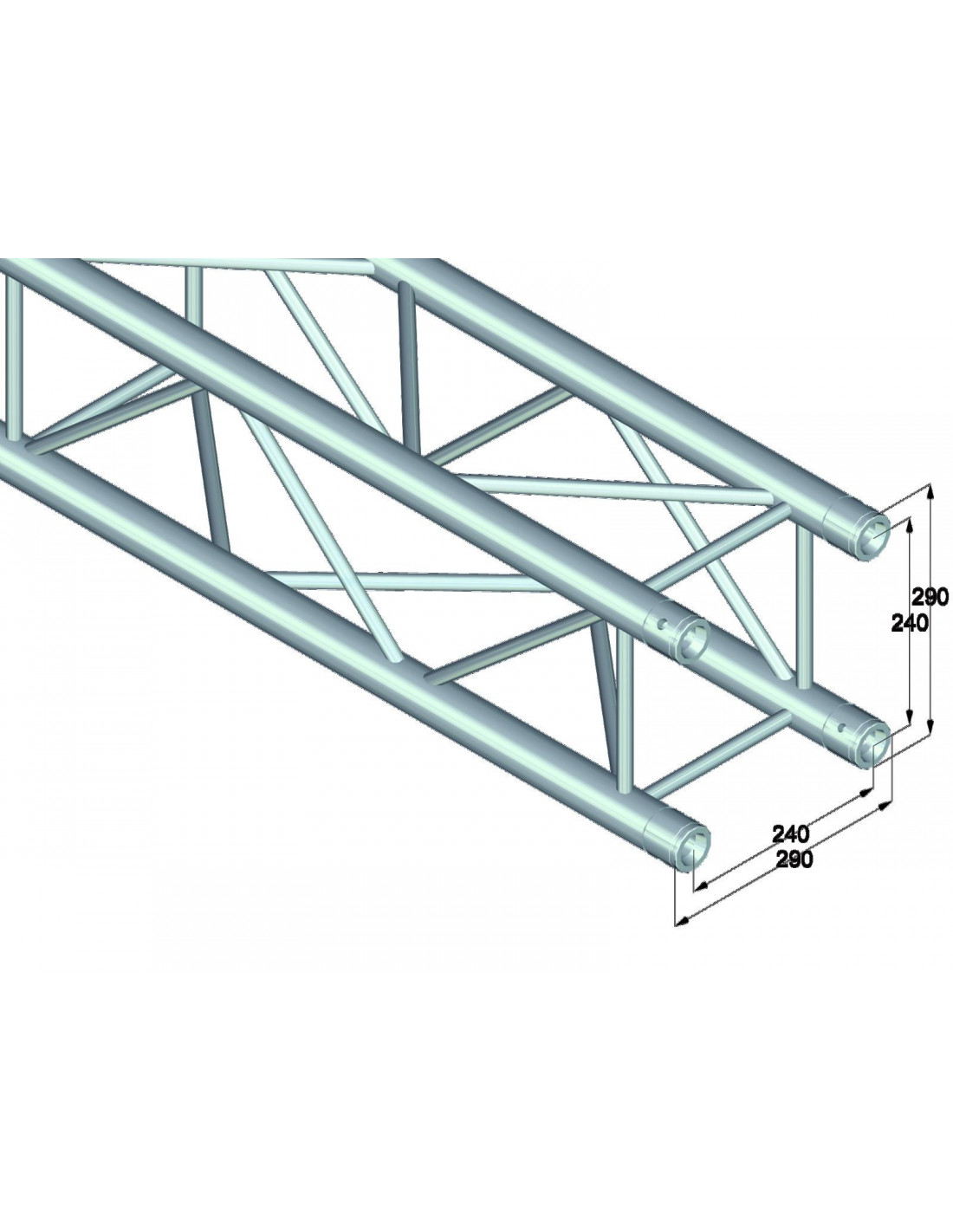

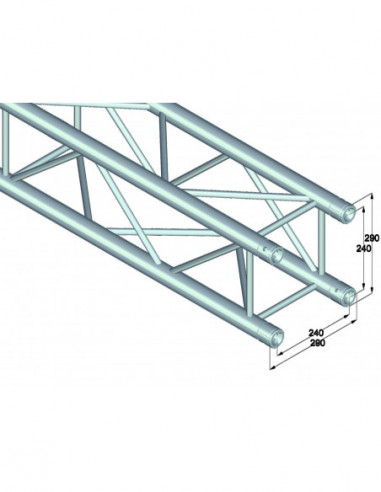

ALUTRUSS QUADLOCK QL-ET34-2000 4-way cross beam
4-point truss system
- Strong EN-AW 6082 alloy for high loads
- High-quality aluminum-tubes with 50 mm in diameter
- Easy installation
- Low weight
- Distance center - center: 240 mm
- For exhibition and shop installers, discotheque and theatre installations
- 1 x Connection set included
- Trusspipe: 50 mm
- Made in Europe

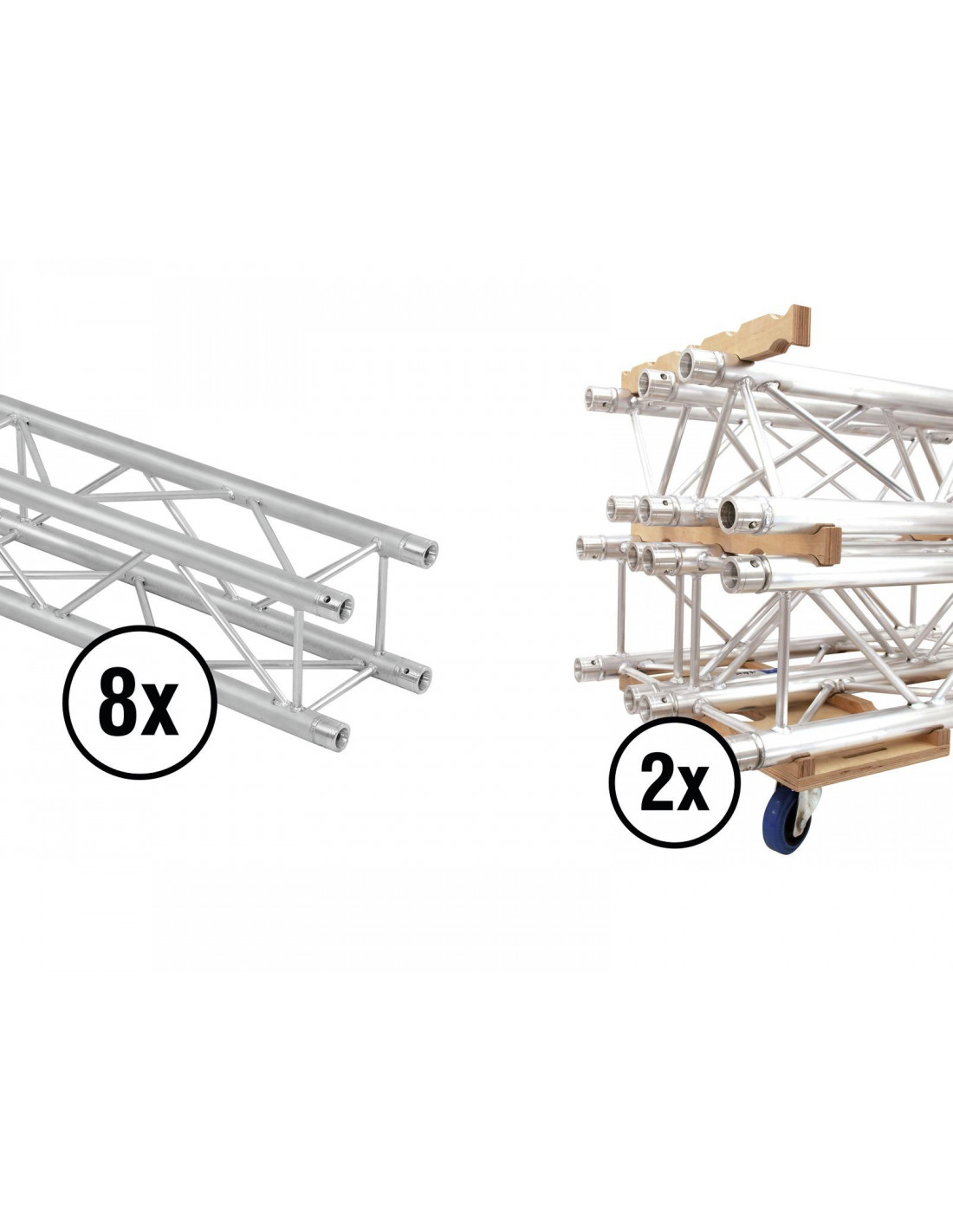

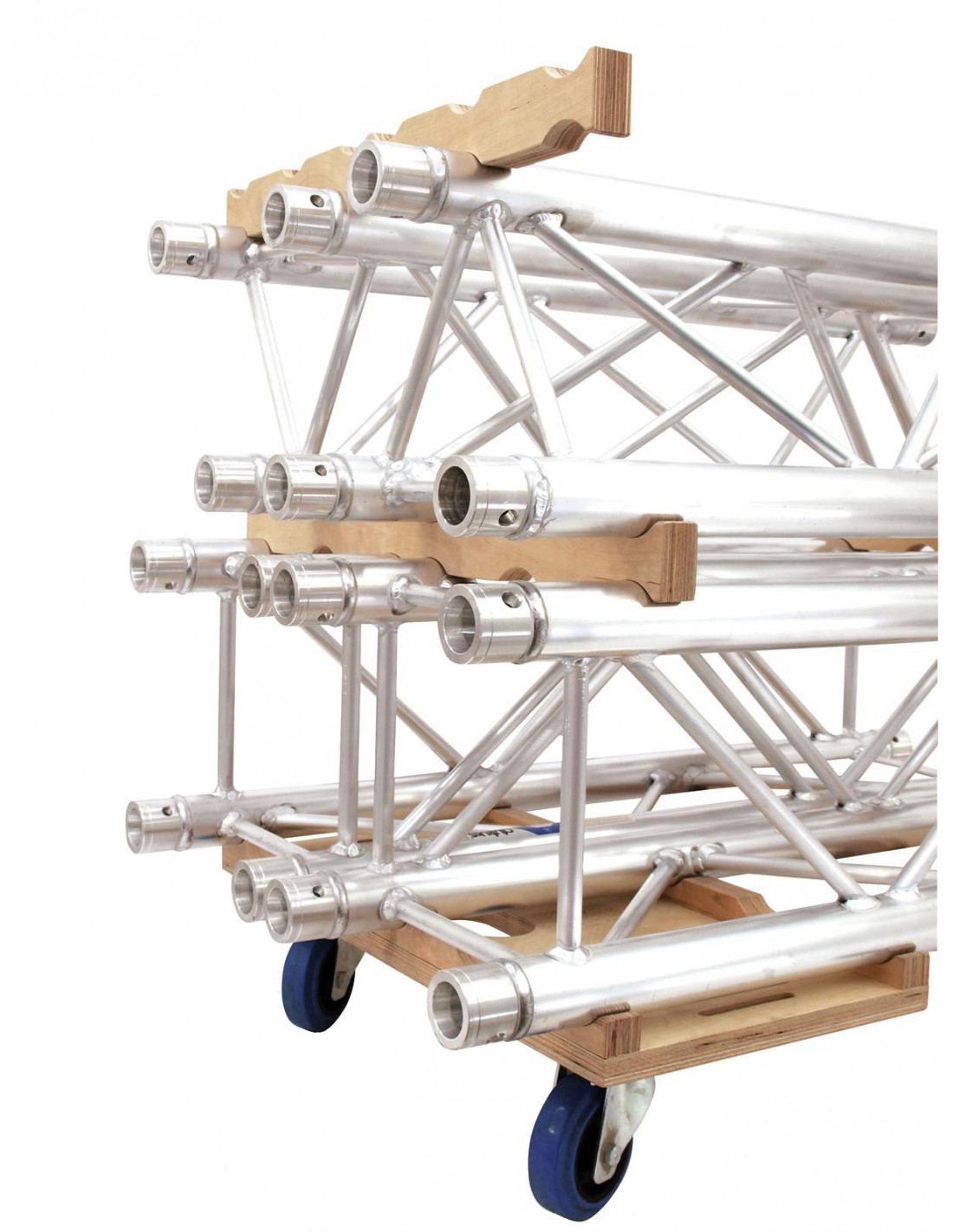

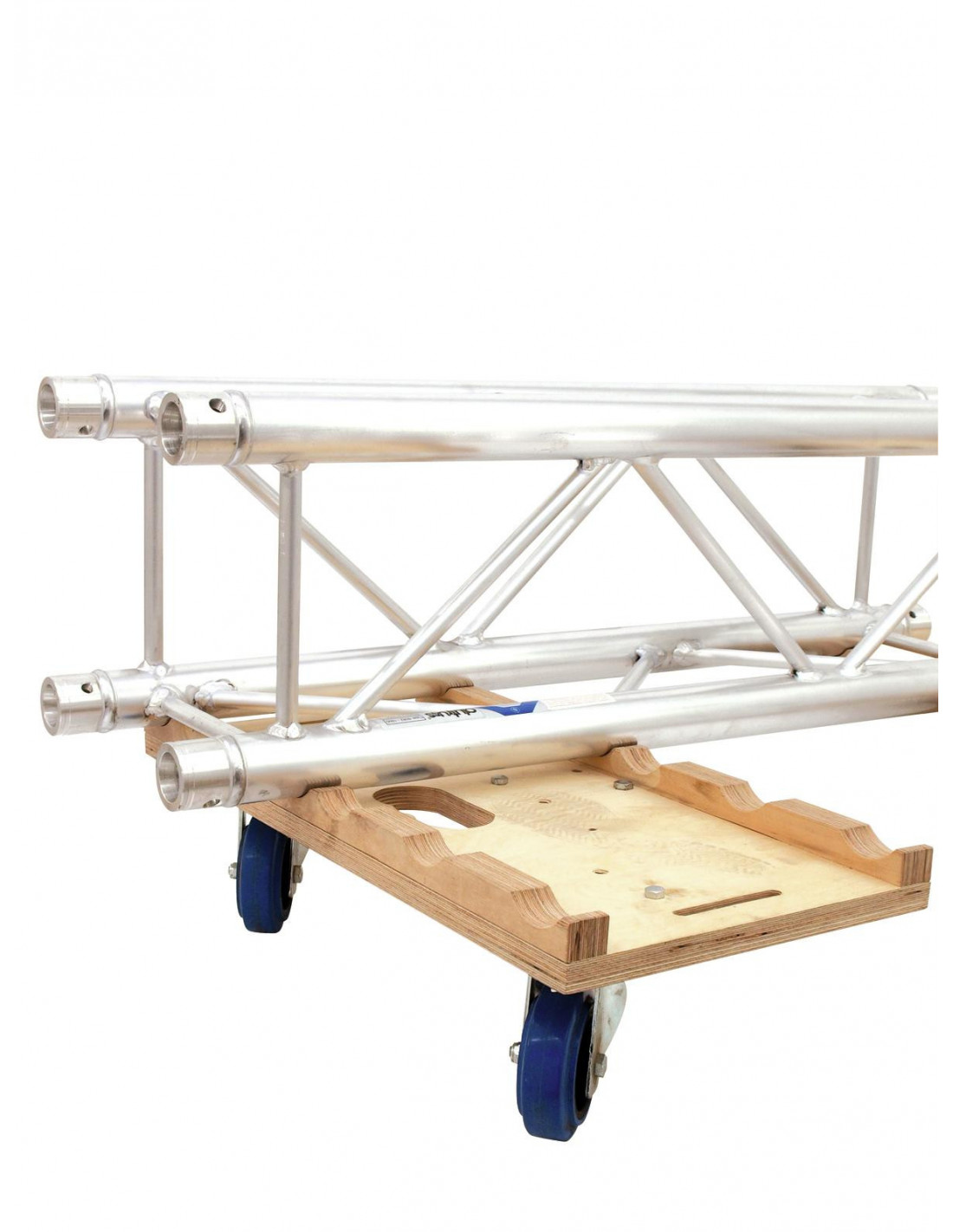

ALUTRUSS Truss Transport Board Combo for 3 Wheels
Transport cart for QUADLOCK and TRILOCK truss elements
- Practical transport cart made of multiplex wood (15 mm)
- Suitable for QUADLOCK and TRILOCK truss elements with 290 mm
- Quick and secure stacking with optional stacking ridges
- Cut-outs for safety bands for safe transport of the truss elements
- Grip hole
- 12 borings for mounting castors (optional)
- The combination of 2 transport carts and 10 stacking ridges allows transport of 12 truss elements (recommended maximum load)
- Made in Germany
ROADINGER Swivel Castor 100mm BLUE WHEEL light blue
100 mm swivel castor
- Double ball race
- Housing made of steel, zinc-plated
- Blue elastic tyre
- Roller race hub bearing
- Replaceable bolt-on wheel
- Height: 128 mm
- Carrying capacity: 450 kg per set (4 castors)
- Made in Germany
ROADINGER Swivel Castor 100mm BLUE WHEEL with brake
100 mm swivel castor
- Double-action brake (wheel and swivel)
- Double ball race
- Housing made of steel, zinc-plated
- Blue elastic tyre
- Roller-race hub bearing
- Replaceable bolt-on wheel
- Height: 128 mm
- Carrying capacity: 450 kg per set (4 castors)
- Made in Germany
ROADINGER Bolt Set for Wheels
Complete set (4 x screw, 4 x nut, 4 x washer)
- Screw: hexagon screw M8 x30 DIN933 galvanized
- Nut: hexagon screw Kl.8 M8 DIN 934 galvanized
- Washer: FormA 8,4 DIN125 galvanized

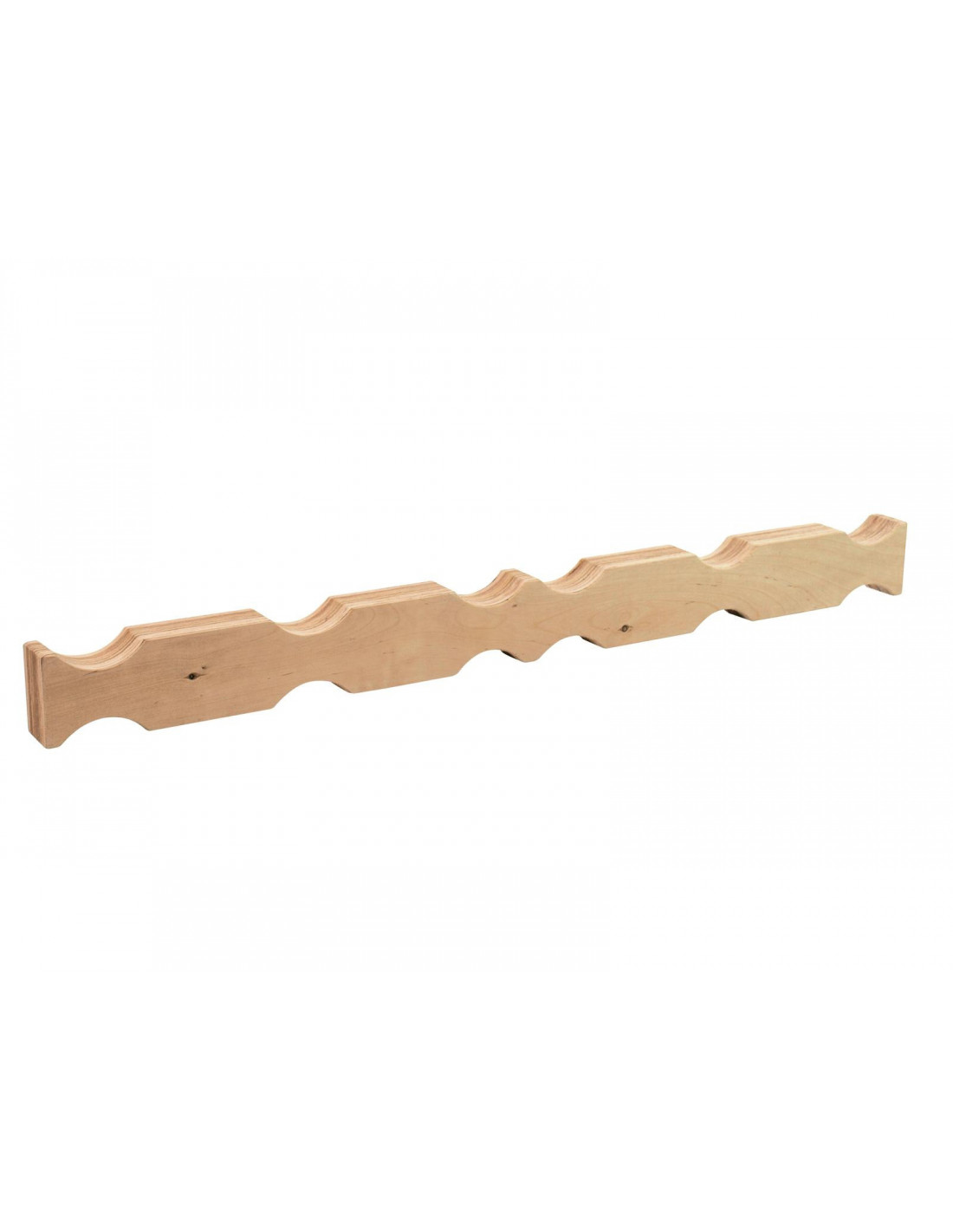

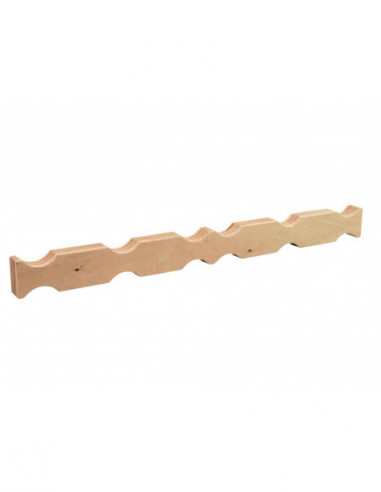

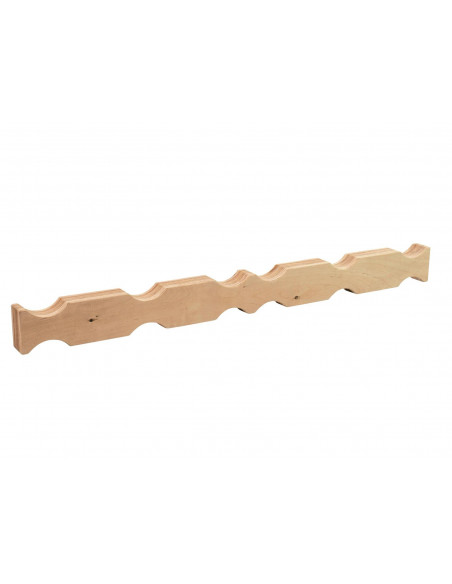

ALUTRUSS Truss Transport Ridge Combo
Stacking rail for QUADLOCK and TRILOCK truss elements
- Stacking ridge for quick and secure stacking of truss elements on matching transport carts
- Suitable for QUADLOCK and TRILOCK truss elements with 290 mm
- Multiplex wood (30 mm)
- Made in Germany
SHZ Clamping Belt S400 Ratchet 5m/25mm black
Clamping belt
- 1-part
- LC400/800daN surroundings
- With ratchet
| Weight: | 103,58 kg |
| ALUTRUSS QUADLOCK QL-ET34-2000 4-way cross beam |
| Trusspipe: | 50 mm x 2 mm |
| Welding technique: | TIG-welding |
| Welding material: | AlMg 5 |
| Alloy: | AIMgSi1 T6 |
| Color: | Alu colored |
| Strut diameter x thickness: | 20 x 2mm |
| Dimensions: | Length: 2 m
Width: 29 cm
Height: 29 cm |
| Weight: | 11,2 kg |
| ALUTRUSS Truss Transport Board Combo for 3 Wheels |
| Maximum load: | 6 truss systems vertical (height approx. 2.10 m) |
| Dimensions: | Length: 60 cm
Width: 30 cm
Height: 4,10 cm |
| Weight: | 2,19 kg |
| ROADINGER Swivel Castor 100mm BLUE WHEEL light blue |
| Color: | Light blue |
| Dimensions: | Diameter: Ø 10 cm |
| Weight: | 660 g |
| ROADINGER Swivel Castor 100mm BLUE WHEEL with brake |
| Color: | Light blue |
| Dimensions: | Diameter: Ø 10 cm |
| Weight: | 930 g |
| ROADINGER Bolt Set for Wheels |
| Weight: | 90 g |
| ALUTRUSS Truss Transport Ridge Combo |
| Dimensions: | Length: 60 cm
Width: 3 cm
Depth: 5 cm |
| Weight: | 500 g |
| SHZ Clamping Belt S400 Ratchet 5m/25mm black |
| Standard: | EN 12195-2, |
| Color: | Black |
| Dimensions: | Length: 5 m
Width: 2,50 cm |
| Weight: | 300 g |
