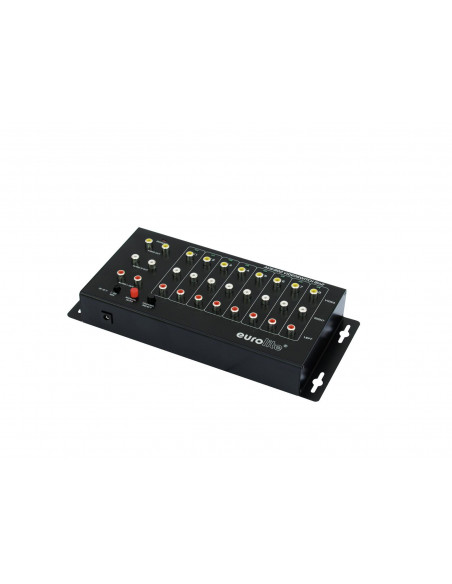

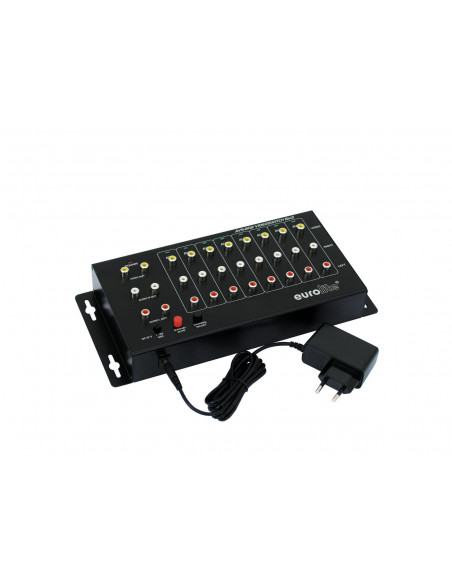

8-fold AV switch
- For switching eight AV sources (audio, composite video and s-video television signals) to up to two television monitors
- Typical applications are security or information systems in shopping centres, schools, hotels, railway stations, airports etc.
- 8 inputs (RCA), manually or automatically switchable
- Automatic switching time adjustable from 1 to 25 seconds
- 2 outputs (RCA)
- Simultaneous recording to one or two video or DVD recorders
- A stereo system can be connected via the second output
- 12 V power supply via power unit included in the delivery
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 6,00 W |
| Frequency range: | 20 - 100 Hz |
| S/N ratio: | >100 dB |
| THD: | <0,05 % at 1 kHz |
| Dimensions: | Width: 28,2 cm
Depth: 12,8 cm
Height: 5 cm |
| Weight: | 940 g |
| Video: | |
| 8 x inputs: | 1 Vpp/ 75 ohms, composite RCA |
| 2 x outputs: | 1 Vpp/ 75 ohms, composite RCA |
| Gain: | 2 V, 1 V (terminated)/ 75 ohms |
| Return loss: | >18 dB |
| Video bandwidth: | >100 MHz |
| Audio: | |
| 8 x inputs: | 22 kohms, stereo RCA |
| 2 x output: | 1 kohms, stereo RCA |
| Gain: | nominal 0 dB |
| Channel separation: | >75 dB |
