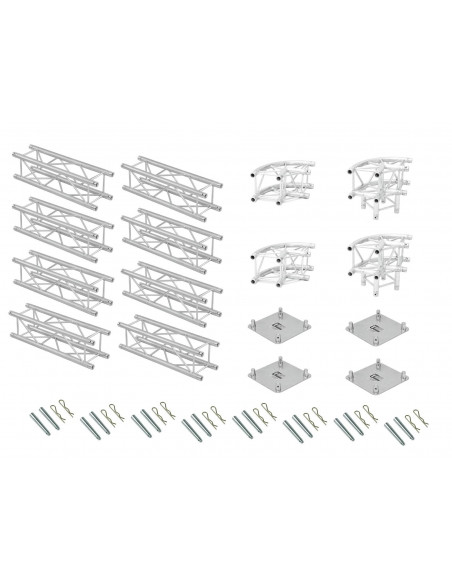

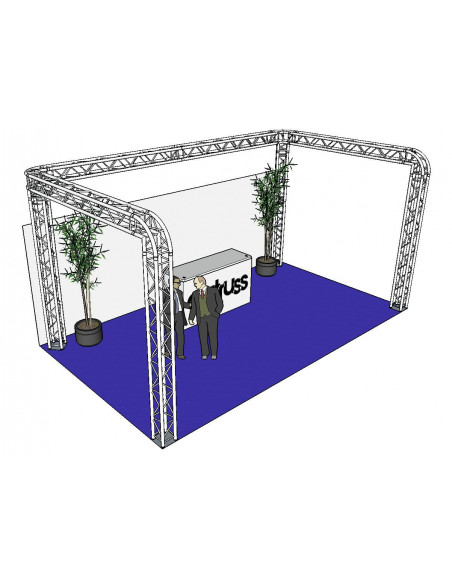

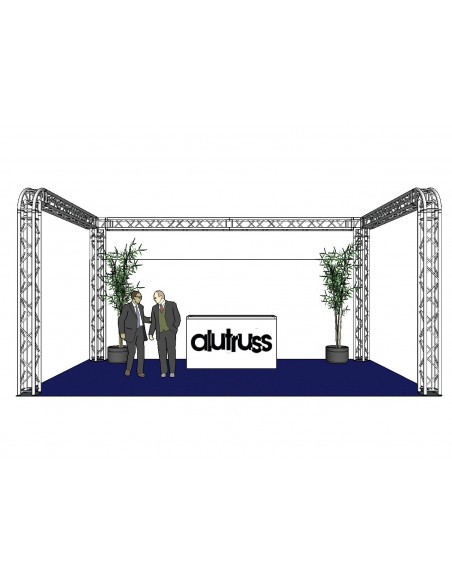

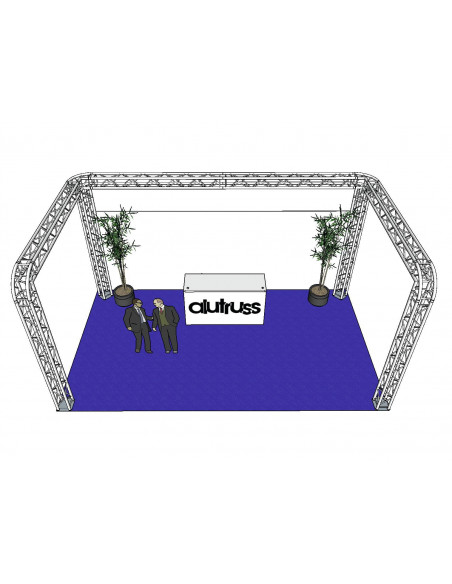

Three-sided Quadlock exhibition stand
ALUTRUSS QUADLOCK 6082-3000 4-Way Cross Beam
4-point truss system
- Strong EN-AW 6082 alloy for high loads
- High-quality aluminum-tubes with 50 mm in diameter
- Easy installation
- Low weight
- Distance center - center: 240 mm
- For exhibition and shop installers, discotheque and theatre installations
- 1 x Connection set included
- Trusspipe: 50 mm
- TÜV Süd certified
ALUTRUSS QUADLOCK 6082C-21R 2-Way Corner 90°
4-point truss system
- Strong EN-AW 6082 alloy for high loads
- High-quality aluminum-tubes with 50 mm in diameter
- Easy installation
- Low weight
- Distance center - center: 240 mm
- For exhibition and shop installers, discotheque and theatre installations
- 1 x Connection set included
- Trusspipe: 50 mm
- Made in Europe
ALUTRUSS QUADLOCK 6082C-30R 3-Way Corner 90°
4-point truss system
- Strong EN-AW 6082 alloy for high loads
- High-quality aluminum-tubes with 50 mm in diameter
- Easy installation
- Low weight
- Distance center - center: 240 mm
- For exhibition and shop installers, discotheque and theatre installations
- 2 x Connection set included
- Trusspipe: 50 mm
- Made in Europe
ALUTRUSS QUICK-LOCK Spare Pivot with Pin
QUICK-LOCK set
- Accessories for the robust truss system with Quick-Lock
- For use with TRI/QUAD system
- Trusspipe: 50 mm
- Made in Europe
ALUTRUSS QUADLOCK End Plate QQGP-Male
- Trusspipe: 50 mm
- Made in Europe
| Weight: | 147,04 kg |
| ALUTRUSS QUADLOCK 6082-3000 4-Way Cross Beam |
| Trusspipe: | 50 mm x 2 mm |
| Welding technique: | TIG-welding |
| Welding material: | AlMg 5 |
| Alloy: | AIMgSi1 T6 |
| Color: | Alu colored |
| Strut diameter x thickness: | 16 x 2mm |
| Dimensions: | Length: 3 m
Width: 29 cm
Height: 29 cm |
| Weight: | 14,2 kg |
| ALUTRUSS QUADLOCK 6082C-21R 2-Way Corner 90° |
| Trusspipe: | 50 mm x 2 mm |
| Color: | Alu colored |
| Strut diameter x thickness: | 16 x 2mm |
| Dimensions: | Length: 50 cm
Width: 50 cm
Height: 29 cm |
| Weight: | 5,30 kg |
| ALUTRUSS QUADLOCK 6082C-30R 3-Way Corner 90° |
| Trusspipe: | 50 mm x 2 mm |
| Color: | Alu colored |
| Strut diameter x thickness: | 16 x 2mm |
| Dimensions: | Length: 50 cm
Width: 50 cm
Height: 50 cm |
| Weight: | 8,15 kg |
| ALUTRUSS QUICK-LOCK Spare Pivot with Pin |
| Trusspipe: | 50 mm |
| Color: | Alu colored |
| Weight: | 90 g |
| ALUTRUSS QUADLOCK End Plate QQGP-Male |
| Trusspipe: | 50 mm |
| Color: | Alu colored |
| Weight: | 1,45 kg |
