Overview

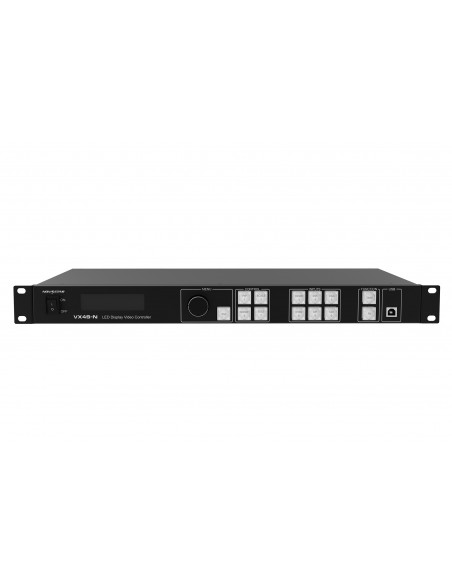

The VX4S-N is a professional LED display controller developed by NovaStar. Besides the function of display control,
it also features powerful image processing capabilities. With excellent image quality and flexible image control, the
VX4S-N greatly meets the needs of the media industry.
Features
- Industry-standard input connectors
− 1x CVBS
− 1x VGA
− 1x DVI (IN+LOOP)
− 1x HDMI 1.3
− 1x DP 1.1
− 1x 3G-SDI (IN+LOOP)
- 4x Gigabit Ethernet outputs, capable of loading
up to 2,300,000 pixels
- Quick screen configuration supported
Computer software for system configuration is
not necessary.
- Seamless high-speed switching and fade effect
supported, to present professional-quality
images
- Adjustable PIP position and size, free control at
will
- Nova G4 engine adopted, enabling exquisite
image display with a good sense of depth,
without flickering and scanning lines
White balance calibration and color gamut
mapping based on different features of LEDs
used by screens, to ensure the reproduction of
true colors
- Independent external audio output supported
- High bit-depth video input: 10-bit and 8-bit
- Multiple device units connected for image
mosaic
- NovaStar's new-generation pixel level calibration
technology adopted, ensuring a fast and efficient
calibration process
- An innovative architecture adopted, allowing for
smart screen configuration
The screen debugging can be completed within
several minutes, which greatly shortens the
preparation time on the stage.
