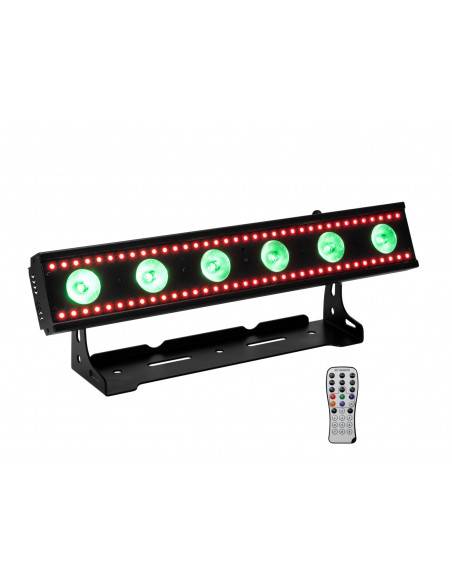

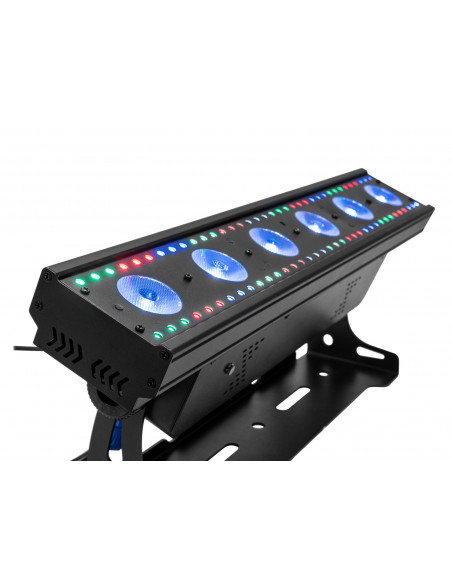

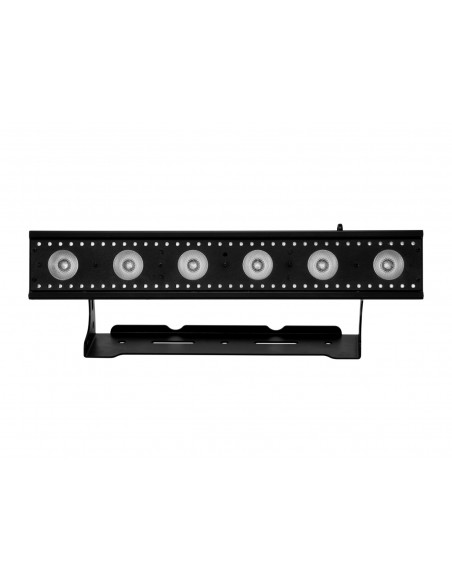

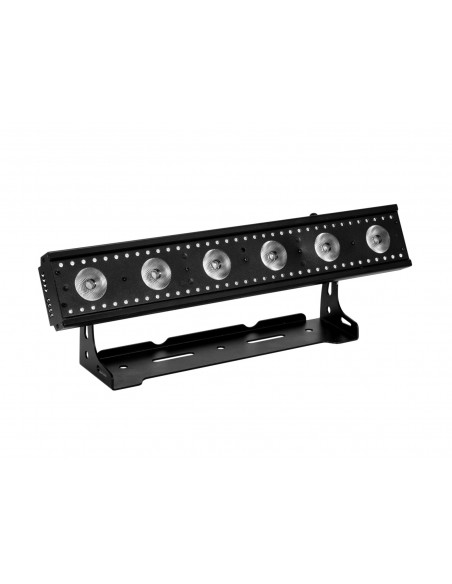

Light effect bar with RGBA/CW/WW+UV LEDs and pixel control
- 6 high-power 9 W RGBA/CW/WW+UV LEDs (7in1) for wash light and blacklight effects
- 72 additional 0.5 W RGB LEDs for dynamic chase and strobe effects
- Built-in auto and music show programs
- Direct color selection for 27 preset colors
- Each 7in1 LED can be controlled individually
- Variable color temperature 2700-8000 K
- Supports QuickDMX - the wireless DMX system from Eurolite
- Built-in phantom-powered USB port for QuickDMX, CRMX and WDMX receivers (optional)

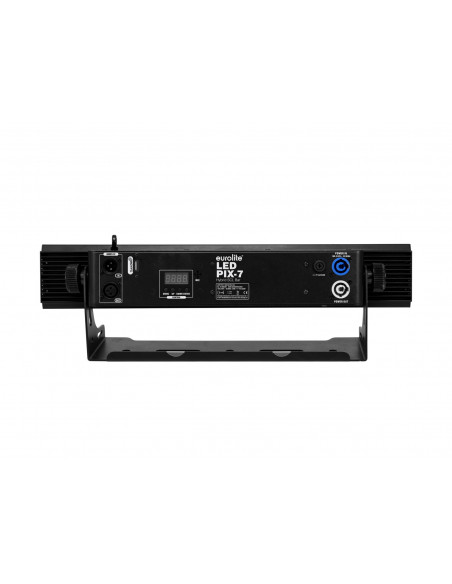

- Control panel with LED display for easy configuration
- Convenient wireless control via included IR remote control
- Swivel mounting bracket
- Mains input and output for power linking up to 8 units
- LED: Strobe effect 72 x SMD 0,5 W 3in1 TCL RGB (homogenous color mix)
- LED: Wash effect 6 x high-power 9 W 7in1 SCL RGB/CW/WW/A/UV (homogenous color mix)
- Can be operated in 3; 7; 9; 22; 43 CH mode
- The device is cooled by passive convection
- Controlling by stand-alone; DMX; Sound to light via Microphone; IR remote control included; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Preprogrammed in LED PC-Control 512
- Flicker-free projection
- Effect: Strobe effect; UV effect
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 50 W |
| IP classification: | IP20 |
| Power connection: | Mains input P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x P-Con (gray), mounting version |
| Lamp type: | LED lamp |
| LED: | Strobe effect 72 x SMD 0,5 W 3in1 TCL RGB (homogenous color mix)
Wash effect 6 x high-power 9 W 7in1 SCL RGB/CW/WW/A/UV (homogenous color mix) |
| Flash rate: | 0 - 20 Hz |
| DMX channels: | 3; 7; 9; 22; 43 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Passive convection |
| Control: | Stand-alone; DMX; Sound to light via Microphone; IR remote control included; Master/slave function; LED PC-Control 512; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Beam angle: | 18° |
| Beam angle (1/2 peak): | 18° |
| Beam angle (1/10 peak): | 35° |
| Housing color: | Black |
| Dimensions: | Length: 50 cm
Depth: 10 cm
Height: 14,9 cm |
| Weight: | 3,95 kg |
| Noise classification: | Class 0 (no noise at all) |
| Remote control |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
