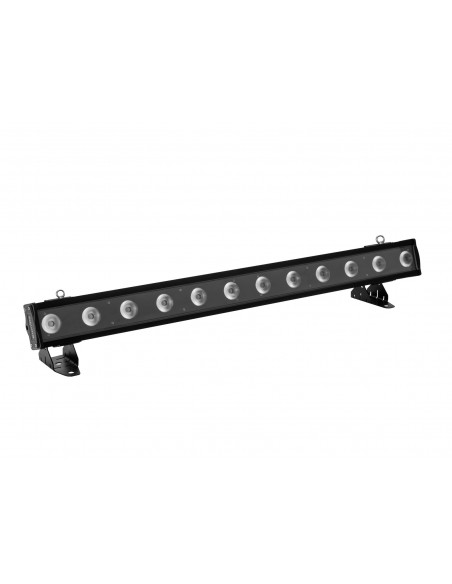

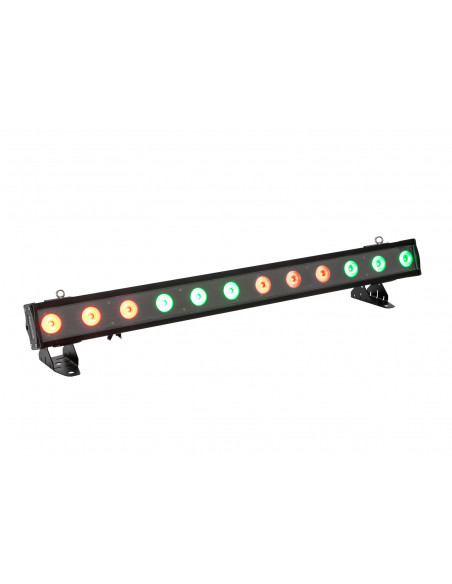

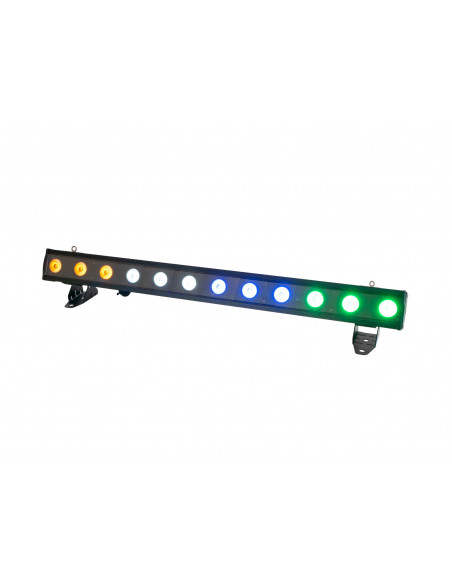

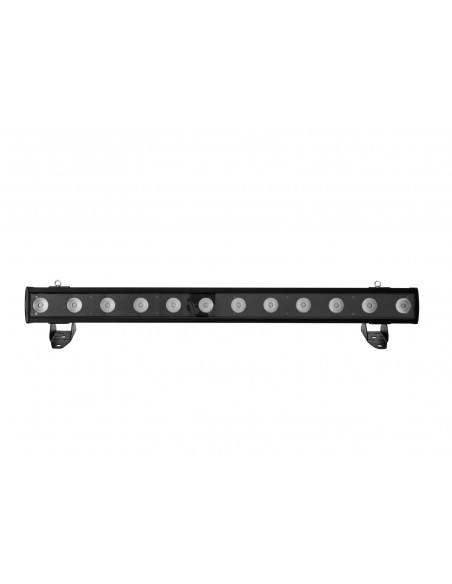

Weather-proof (IP65) bar with RGBAW+UV color mixing and pixel control
- 12 high-power 10 W RGBAW+UV LEDs (6in1)
- Each LED can be controlled via DMX individually or in segments with 2 or 3 LEDs each
- For indoor and outdoor use (IP65)
- Built-in auto show programs
- Direct color selection for 45 preset colors
- Stepless color blend, color change, color fade, dimmer and strobe effect
- Various dimmer curves adjustable

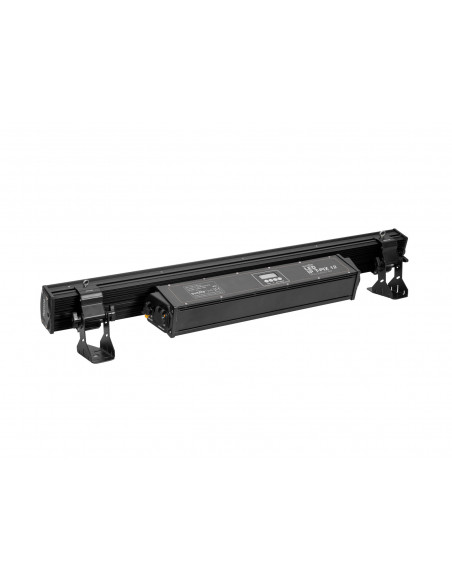

- Control panel with LC display for easy configuration
- Swivel mounting bracket
- Incl. quick-lock Omega holder
- DMX and power terminals intelligently designed for easy wiring
- LED: 12 x high-power 10 W 6in1 HCL RGBWA/UV (homogenous color mix)
- Can be operated in 6; 11; 24; 41; 77 CH mode
- The device is cooled by passive convection
- Controlling by stand-alone; DMX; Master/slave function; Sound to light via Microphone
- Preprogrammed in LED PC-Control 512; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE
- Flicker-free projection
- Suitable for outdoor use
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 125 W |
| IP classification: | IP65 |
| Protection class: | Class I |
| Power connection: | Mains input IP T-Con (M) mounting version power supply cord with safety plug |
| Power output: | 1 x IP T-Con (F) mounting version |
| Lamp type: | LED lamp |
| LED: | 12 x high-power 10 W 6in1 HCL RGBWA/UV (homogenous color mix) |
| Flash rate: | 1 - 25 Hz |
| DMX channels: | 6; 11; 24; 41; 77 |
| DMX input: | 1 x 3-pin XLR (M) mounting version IP |
| DMX output: | 1 x 3-pin XLR (F) mounting version IP |
| Cooling: | Passive convection |
| Control: | Stand-alone; DMX; Master/slave function; Sound to light via Microphone; LED PC-Control 512; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE |
| Beam angle: | 25° |
| Beam angle (1/2 peak): | 25° |
| Beam angle (1/10 peak): | 50° |
| Housing color: | Black |
| Display type: | LCD display |
| Dimensions: | Length: 99 cm
Depth: 16 cm
Height: 14 cm |
| Weight: | 8,30 kg |
| Noise classification: | Class 0 (no noise at all) |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
