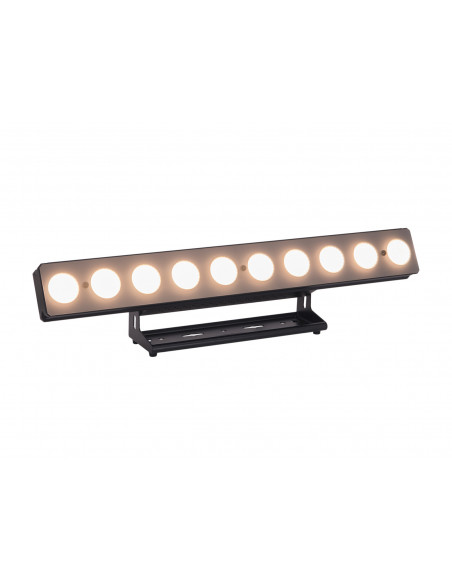

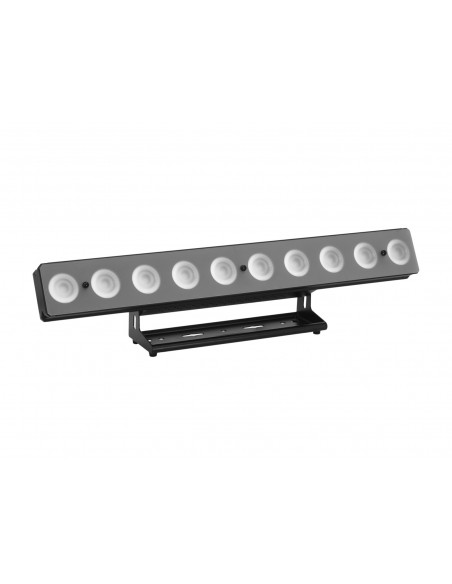

High performance LED bar with 17 W white light LEDs and dim-to-warm function
- Equipped with ten warm white LEDs
- Particularly bright illuminating power of the LEDs
- Color temperature 3000 K

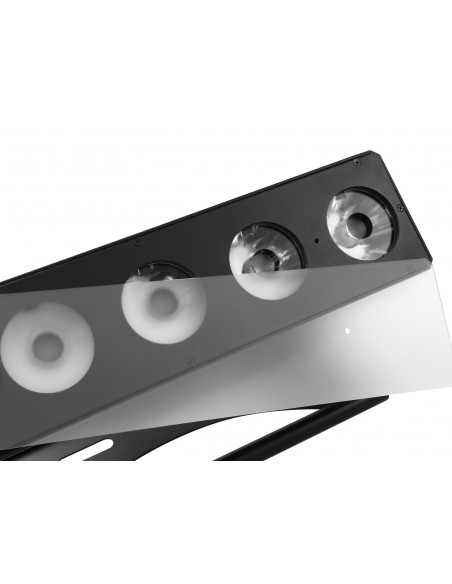

- Removable frost filter
- Homogeneous beams with 20° beam angle
- New LED technology that simulates the color temperature curve of a halogen lamp when dimming

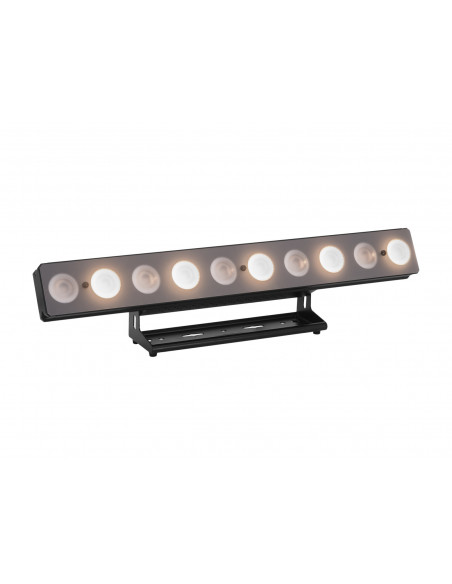

- Each LED can be controlled individually
- Strobe effect with adjustable speed
- Dimmer speed (step response) adjustable
- Strobe effect with 18 flashes per second
- Built-in programs
- Stand-alone, master/slave, DMX and Art-Net mode
- For large stage backgrounds in public places, main halls and lounges
- Swivel mounting brackets

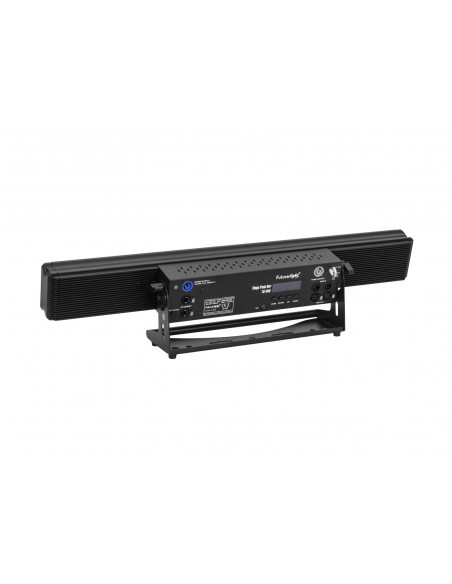

- Control panel with LC display for easy configuration
- EtherCON network terminals
- Mains input and output for power linking up to 8 units
- LED: 10 x COB (chip-on-board) 17 W Dim to warm (homogenous color mix)
- Can be operated in 2; 10; 12 CH mode
- The device is cooled by passive convection
- Controlling by RDM; ArtNet; stand-alone; DMX; Sound to light via Microphone
- Preprogrammed in LED PC-Control 512
- Flicker-free projection
- Very high color rendering index (CRI)
- NEUTRIK
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 185 W |
| IP classification: | IP20 |
| Power connection: | Mains input PowerCON (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x PowerCON (gray), mounting version |
| Lamp type: | LED lamp |
| LED: | 10 x COB (chip-on-board) 17 W Dim to warm (homogenous color mix) |
| Color temperature: | 3000K |
| Flash rate: | 0 - 18 Hz |
| DMX channels: | 2; 10; 12 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Network connection: | Protocol: ArtNet 3 via 2x RJ-45 etherCON (F) mounting version |
| Cooling: | Passive convection |
| Control: | RDM; ArtNet; stand-alone; DMX; Sound to light via Microphone; LED PC-Control 512 |
| Beam angle: | 20° |
| Beam angle (1/2 peak): | 20° |
| Color rendering index (CRI) more than: | 90 Ra |
| Housing color: | Black |
| Use of brands: | NEUTRIK |
| Dimensions: | Length: 87,5 cm
Depth: 14 cm
Height: 18 cm |
| Weight: | 9,45 kg |
| Noise classification: | Class 0 (no noise at all) |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
