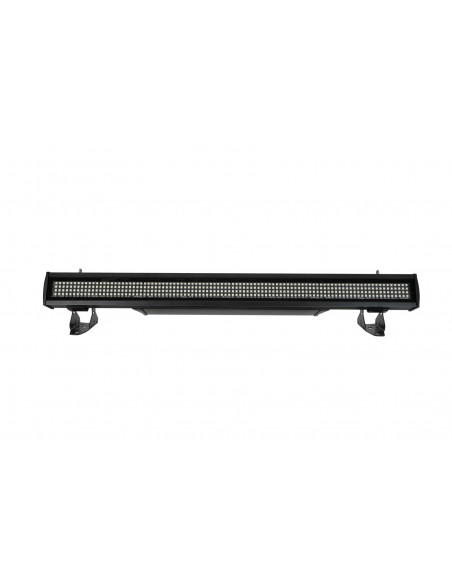

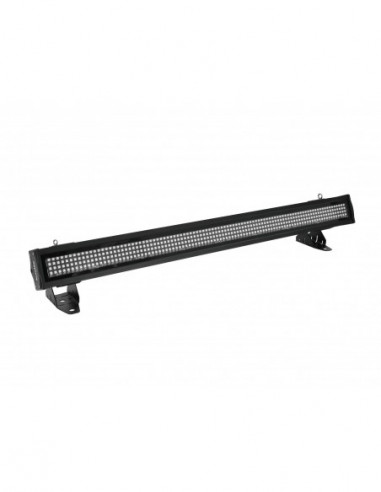

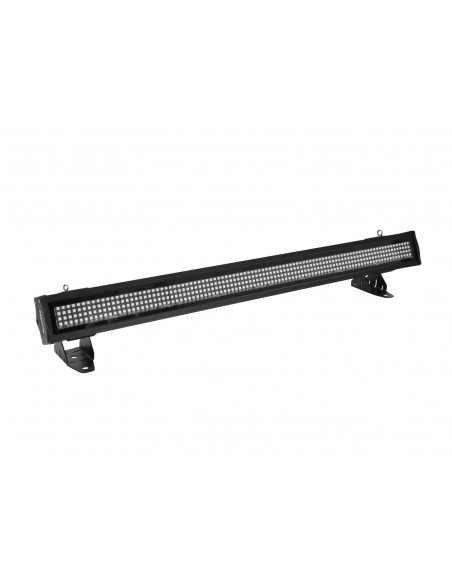

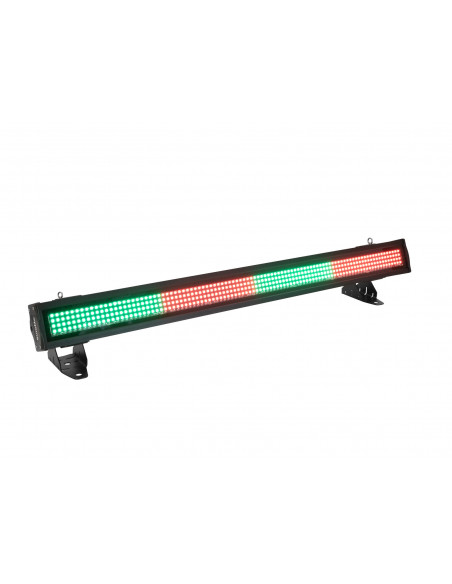

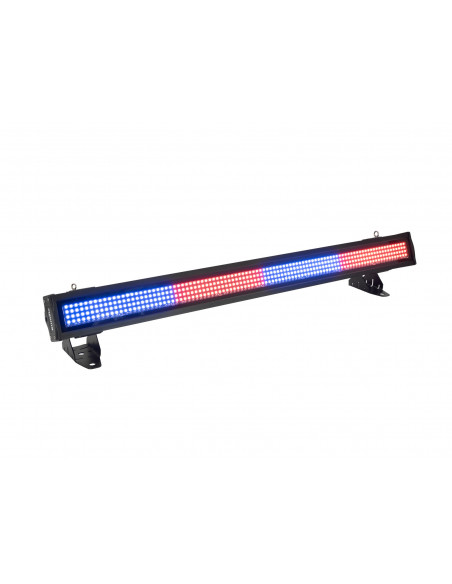

Weather-proof (IP65) bar with RGBW color mixing and segment control
- 384 x 0.4 W RGBW LEDs (4in1)
- The LEDs can be controlled via DMX in segments with 48 or 96 LEDs each
- For indoor and outdoor use (IP65)
- Built-in auto show programs
- Direct color selection for 32 preset colors
- Stepless color blend, color change, color fade, dimmer and strobe effect
- Various dimmer curves adjustable

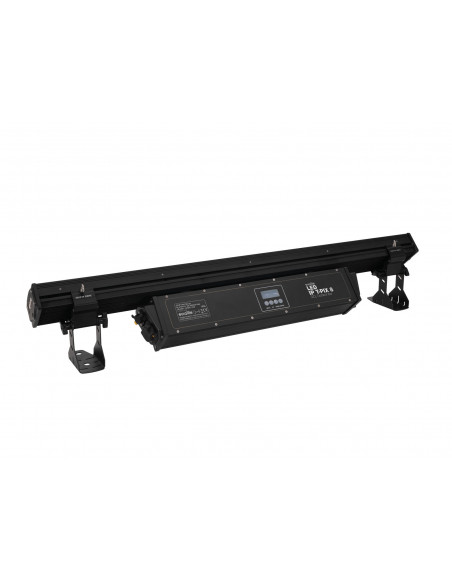

- Control panel with LC display for easy configuration
- Swivel mounting bracket
- Incl. quick-lock Omega holder
- DMX and power terminals intelligently designed for easy wiring
- LED: 384 x SMD 5050 0,4 W 4in1 QCL RGBW (homogenous color mix)
- Can be operated in 4; 9; 16; 37 CH mode
- The device is cooled by passive convection
- Controlling by stand-alone; DMX; Master/slave function; Sound to light via Microphone
- Flicker-free projection
- Suitable for outdoor use
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 130 W |
| IP classification: | IP65 |
| Power connection: | Mains input IP T-Con (M) mounting version power supply cord with safety plug |
| Power output: | IP T-Con (F) mounting version |
| Lamp type: | LED lamp |
| LED: | 384 x SMD 5050 0,4 W 4in1 QCL RGBW (homogenous color mix) |
| Flash rate: | 1 - 25 Hz |
| DMX channels: | 4; 9; 16; 37 |
| DMX input: | 3-pin XLR (M) mounting version IP |
| DMX output: | 3-pin XLR (F) mounting version IP |
| Cooling: | Passive convection |
| Control: | Stand-alone; DMX; Master/slave function; Sound to light via Microphone |
| Beam angle: | 120° |
| Beam angle (1/2 peak): | 120° |
| Housing color: | Black |
| Dimensions: | Length: 99,0 cm
Depth: 16,0 cm
Height: 14,0 cm |
| Weight: | 8,20 kg |
| Noise classification: | Class 0 (no noise at all) |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
