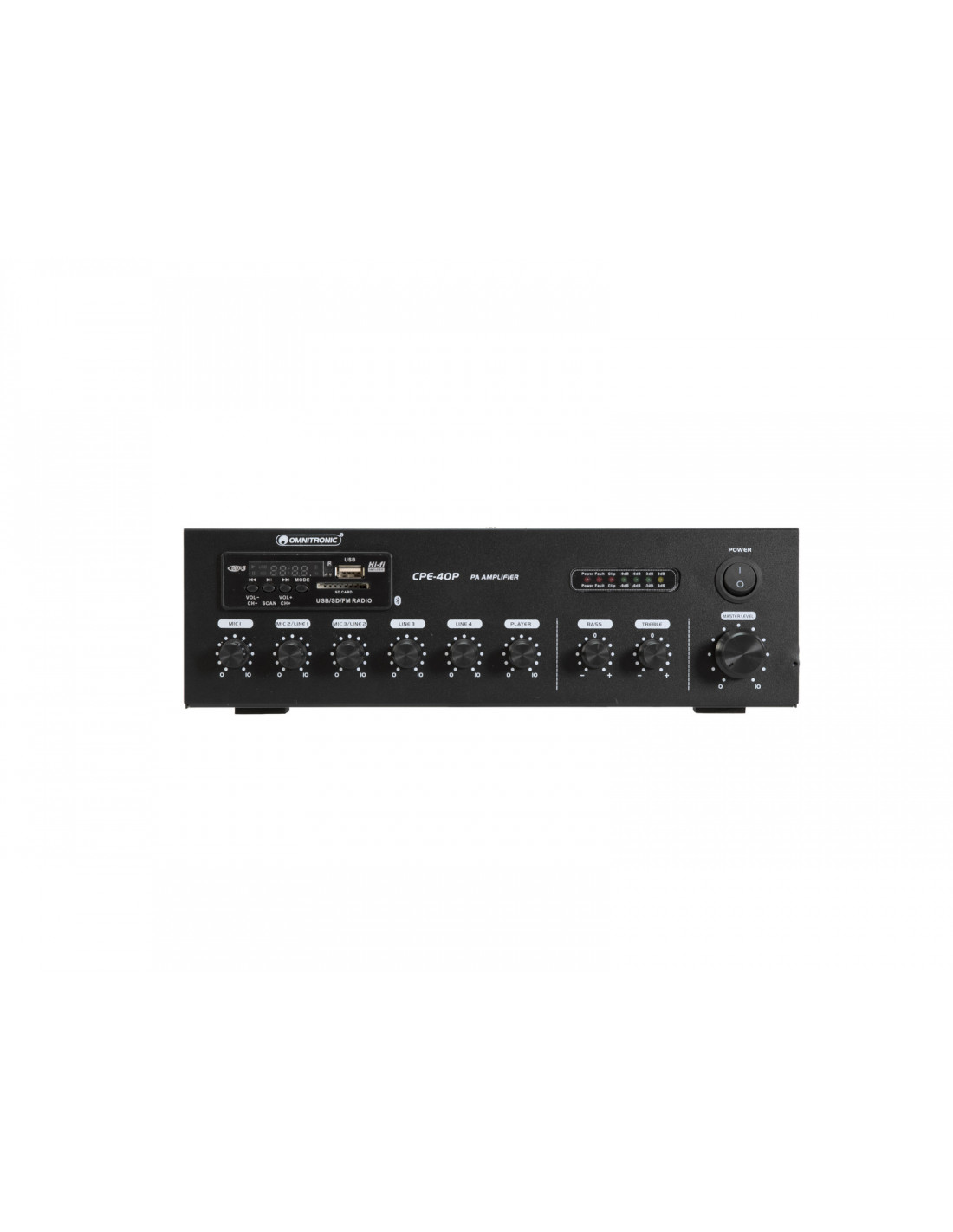

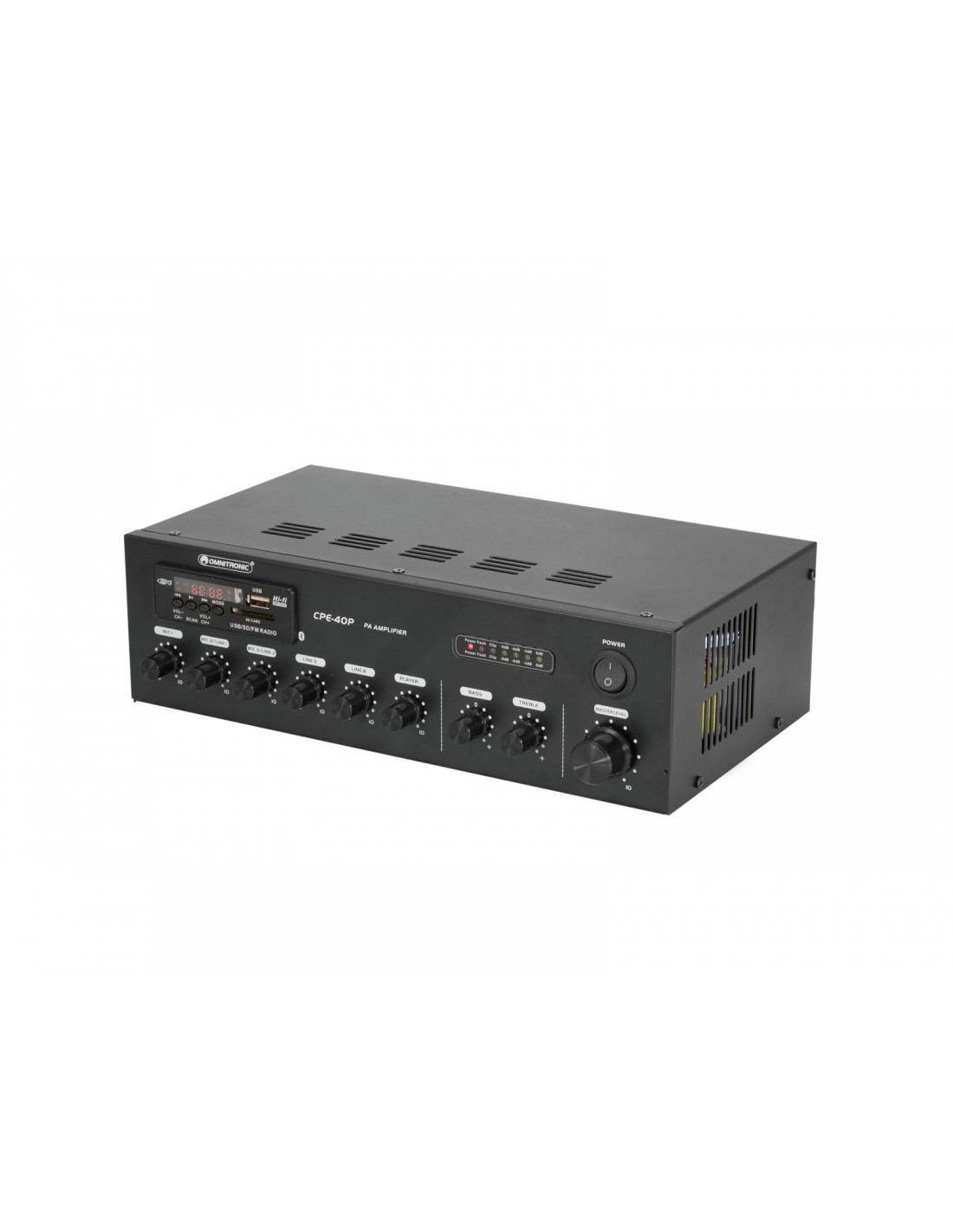

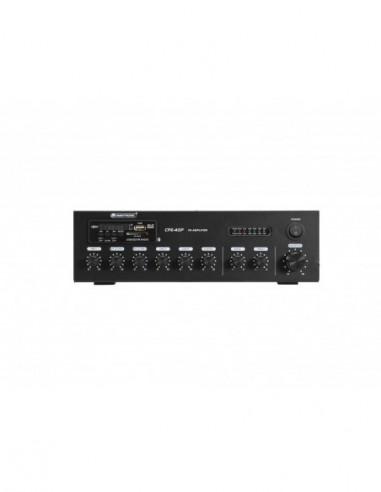

PA mono mixing amplifier with MP3 player and IR remote control, Bluetooth, 40 watts
- PA outputs for 70 V or 100 V PA speakers
- PA outputs for low-impedance speakers (4-16 ohms)
- Built-in audio player with Bluetooth receiver and IR remote control
- Stream music wirelessly from your mobile devices (e.g. smartphone, tablet) via Bluetooth
- SD card slot and USB input

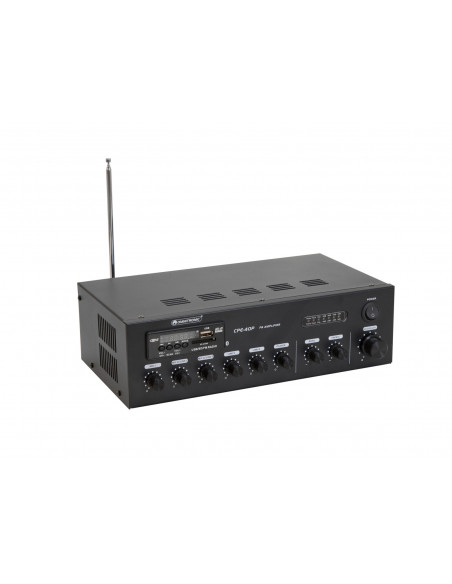

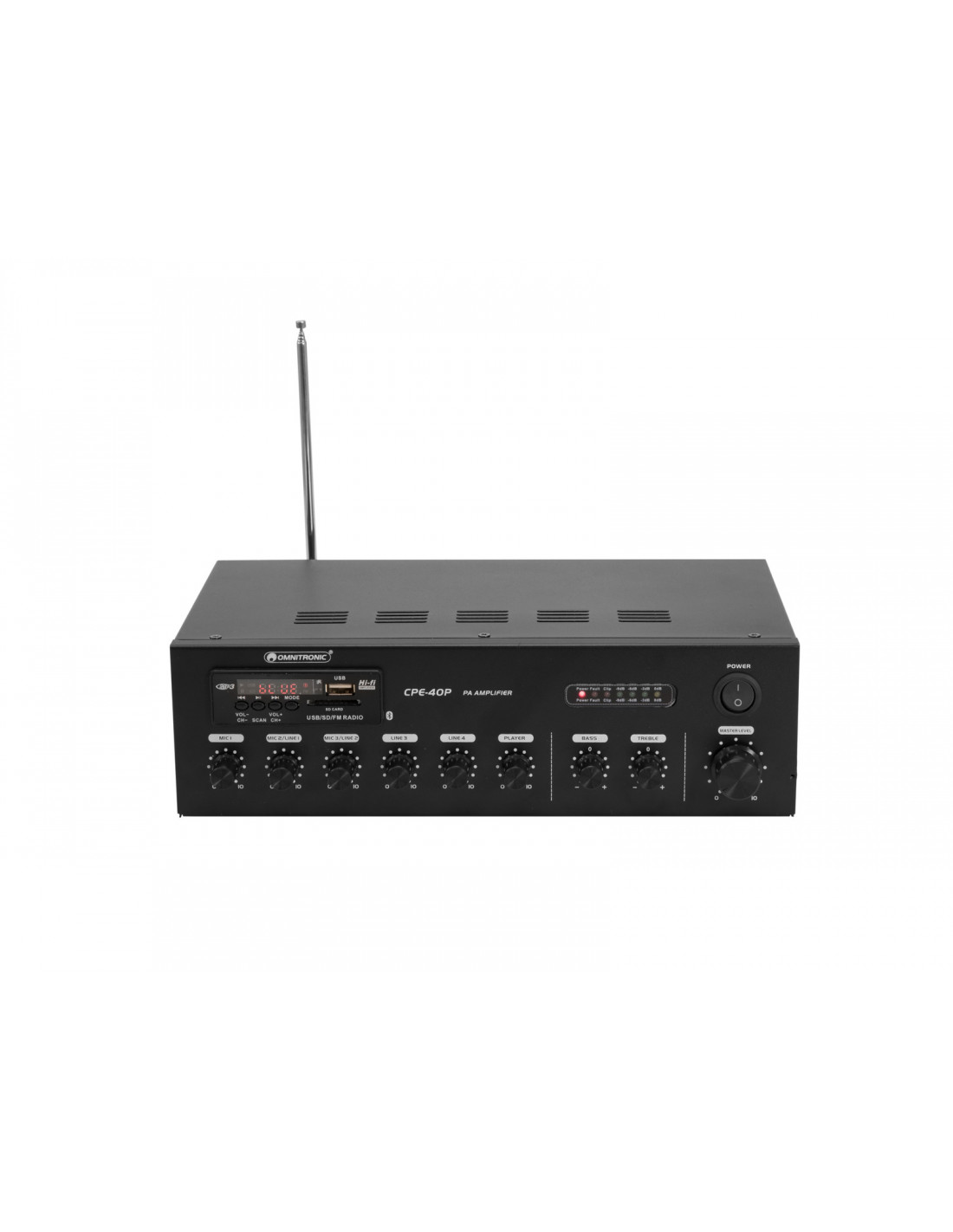

- FM tuner with auto scan
- 3 microphone inputs with separate level controls
- Mic 1 with phantom power and priority circuit
- Mic 2 and 3 switchable mic/line
- 2 line inputs with separate level controls
- 1 line output
- Treble and bass and master controls for the output signal
- 4-fold LED level display
- Protection circuits with LED indication: overload, short circuit, clip limiter, overheat
- Mains operation and 24 V emergency power operation
- Compact desktop console
- Controlling by Bluetooth; IR remote control included
- 2 U
| Power supply: | 230 V AC, 50 Hz
Or
24 V |
| Power consumption: | 80 W |
| Output power: | 40 W RMS |
| Power connection: | Mains input IEC connector (M) mounting version power supply cord with safety plug included |
| Impedance: | 1 x 4 ohms; 1 x 8 ohms; 1 x 16 ohms; 1 x Public address systems 100V |
| Control: | Bluetooth; IR remote control included |
| Audio player: | USB + SD + Bluetooth + FM Radio |
| Circuitry: | Class D |
| Equalizer: | Master: 1 x 2-band tone control |

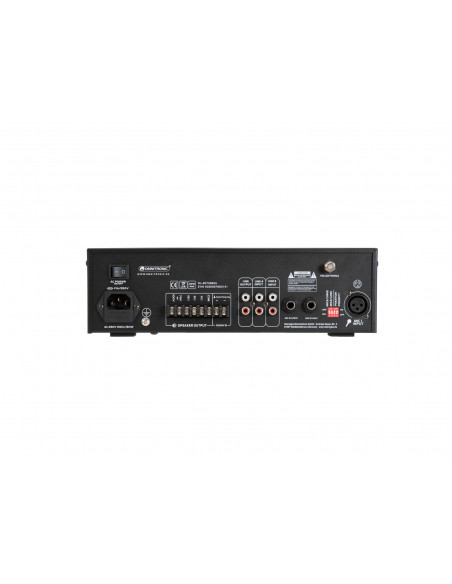

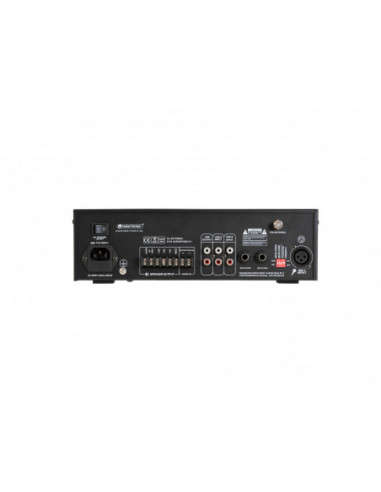

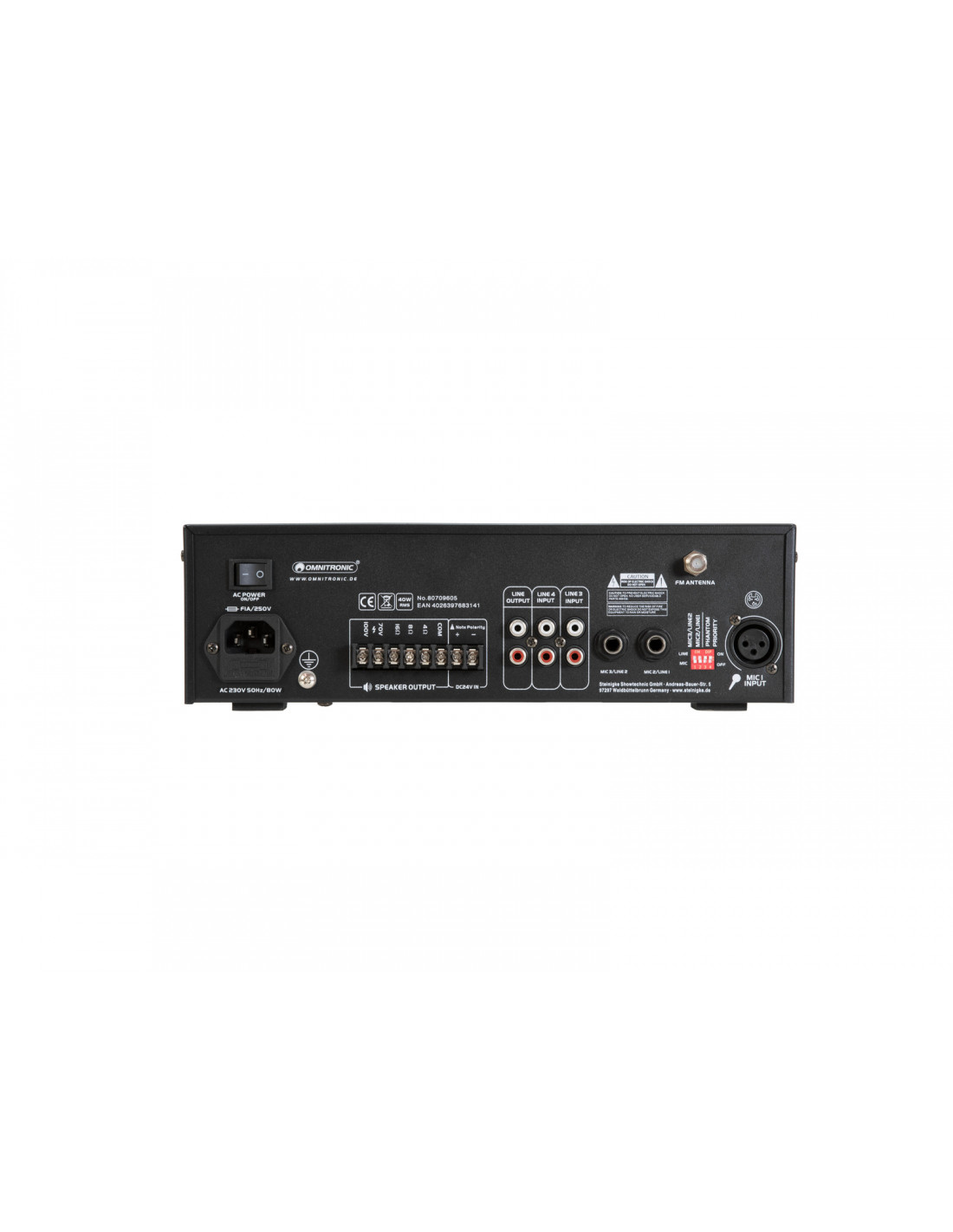

| Connections: | Input: Microphone via 1 x 3-pin XLR
Input: mic/line via 2 x 6.3 mm jack socket (stereo) mounting version
Input: line via 2 x stereo RCA
Output: line via 1 x stereo RCA 0,774 V
Output: speakers via screw terminal |
| Format: | MP3 |
| Housing design: | 2 U |
| Dimensions: | Width: 30,3 cm
Depth: 22 cm
Height: 9,1 cm |
| Weight: | 2,73 kg |
| Remote control |
| Battery: | 1 x button cell CR2025 Button cell 3.0 V CR2025 lithium manganese built-in |
