Universal wall speaker systemUse the OD-22T 100 V PA speaker by OMNITRONIC for sound reinforcement in restaurants, bars, shops or in your conference or recreation area.The 2 x 6 cm full-range speaker feature a 3.5 x 6 cm passive membrane and a 100 V transformer. The attractive impact and scratch-resistant ABS plastic housing is equipped with a metal grille.The stable mounting plate is equipped with a swivel and tilt joint, which allows wall and ceiling mounting at any angle.
Universal wall speaker system with 2.5" full-range speakers and 15 W RMS
- 100 V PA speaker system for general applications

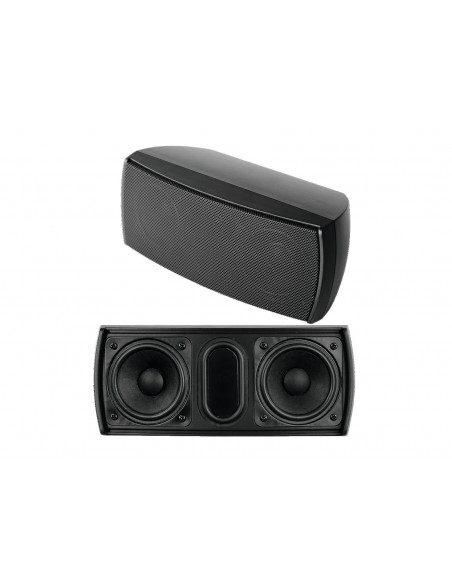

- 2 x 6 cm full-range speaker (2 x 2.5")
- 3.5 x 6 cm passive membrane
- 100 V transformer
- Attractive ABS plastic cabinet (scratch-resistant) with metal grille

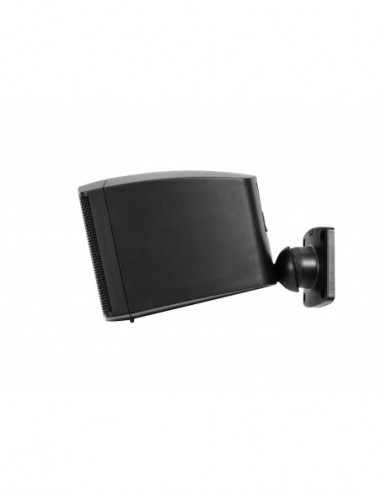

- Durable mounting plate with joint for panning and tilting allows ceiling or wall installation in most varying angles
- Spring clamps
- Ideal for PA applications in restaurants, bars, shops or conferences
- Suitable for outdoor use
| Power supply: |
100 V DC |
| Rated power: |
15 W RMS (8 ohms); 6 W RMS (100V PA) |
| Program power: |
30 W |
| Frequency range: |
120 - 22000 Hz |
| Sensitivity: |
88 dB |
| Max. SPL: |
95 dB |
| Dispersion angle: |
60° x 60° |
| Impedance: |
Public address systems 100V; 8 ohms |
| Connections: |
Input: speakers via Spring terminal |
| Speakers: |
1 x woofer (2.5") approx. 6.35 cm |
| Type of speaker: |
Compact cabinet speaker |
| Dimensions: |
Width: 20,9 cm
Depth: 10,9 cm
Height: 11 cm |
| Weight: |
1,10 kg |
