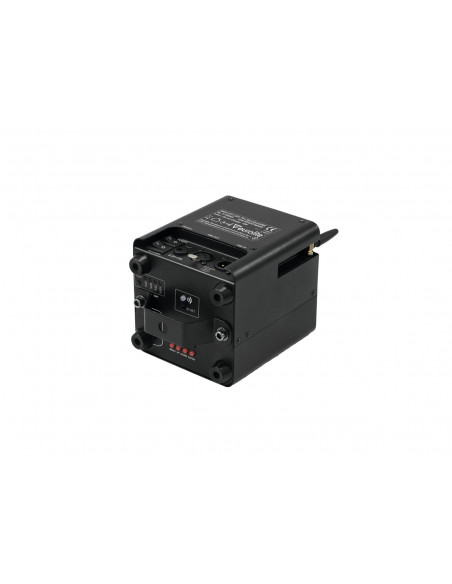

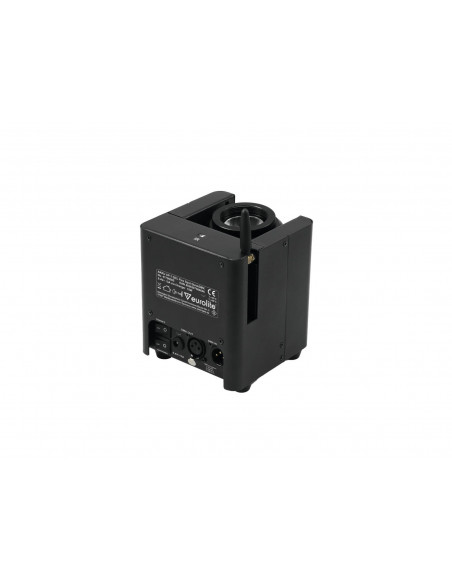

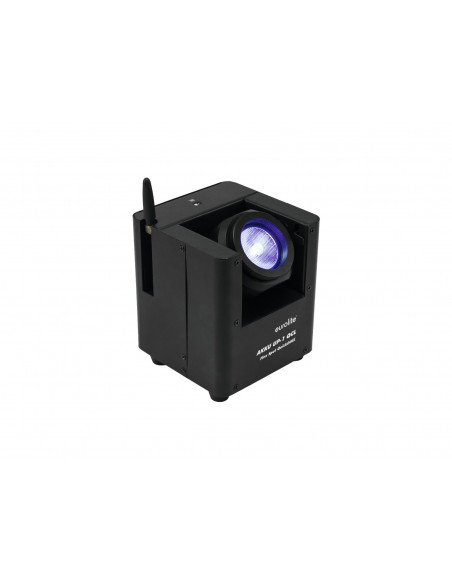

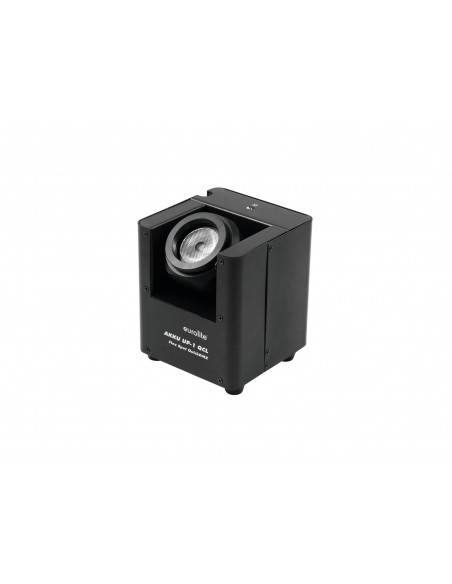

LED Uplight with 15 W 4in1 LED, tiltable head and QuickDMX transceiver
- Cordless and versatile
- Equipped with a 15 W QCL (quadcolor LED) in red, green, blue and white
- Inclination angle of the LED head manually adjustable
- Interchangeable front lens for 9° or 15° beam angle
- With integrated QuickDMX transceiver for wireless reception of DMX512 signals
- Operation via included power supply unit or built-in rechargeable lithium-ion battery with up to 18 hours operating time
- Integrated automatic charging of the battery with indicator
- Stepless color blend, color change, preset colors, dimmer and strobe effect
- Dimmer speed (step response) adjustable

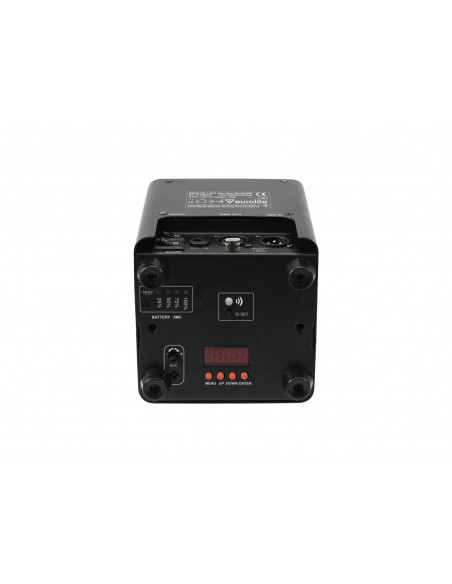

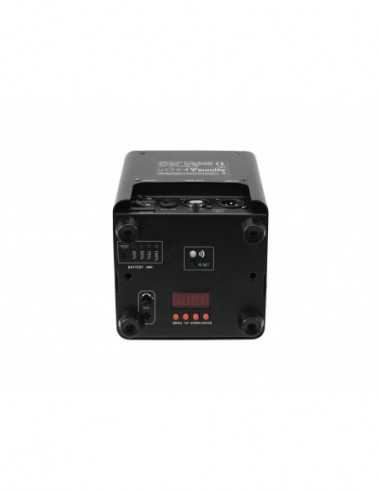

- Control panel with LED display for easy configuration
- Charger included in delivery
- LED: 1 x high-power 15 W 4in1 QCL RGBW (homogenous color mix)
- Can be operated in 3; 4; 6; 8; 10 CH mode
- The device is cooled by passive convection
- Controlling by DMX; stand-alone; QuickDMX built-in; Sound to light via Microphone; IR remote control included
- Preprogrammed in Light´J; LED PC-Control 512
- Flicker-free projection
- For application areas such as: Small lender; Wedding/gala
| Power consumption: | 15 W |
| IP classification: | IP20 |
| Protection class: | Class III |
| Power connection: | Battery/battery pack
Mains input Coaxial power connector (M) power supply cord with Euro plug (provided) |
| Battery pack type: | 1 x lithium ion 7,4 V, 8800 mAh, 65,12 Wh |
| Battery pack: | Battery operation up to 18h depending on program used
Recharging time 6h |
| Lamp type: | LED lamp |
| LED: | 1 x high-power 15 W 4in1 QCL RGBW (homogenous color mix) |
| DMX channels: | 3; 4; 6; 8; 10 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Passive convection |
| Control: | DMX; stand-alone; QuickDMX built-in; Sound to light via Microphone; IR remote control included; Light´J; LED PC-Control 512 |
| Beam angle: | 9° |
| Beam angle (1/2 peak): | 9°
15° |
| Beam angle (1/10 peak): | 18°
30° |
| Housing color: | Black |
| Carrier frequency: | 2,4 GHz |
| Dimensions: | Width: 12 cm
Depth: 12 cm
Height: 14,2 cm |
| Weight: | 2,21 kg |
| Noise classification: | Class 0 (no noise at all) |
| External mains adapter |
| Power supply: | 100-240 V AC, 50/60 Hz
8,4 V 3 A |
| Remote control |
| Battery: | 1 x Button cell 3.0 V CR2032 lithium manganese built-in |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
