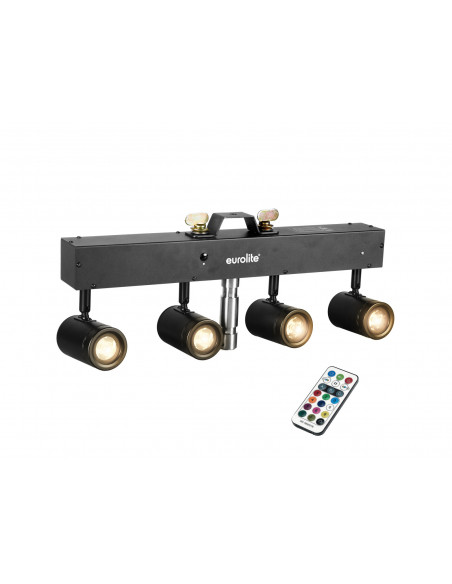

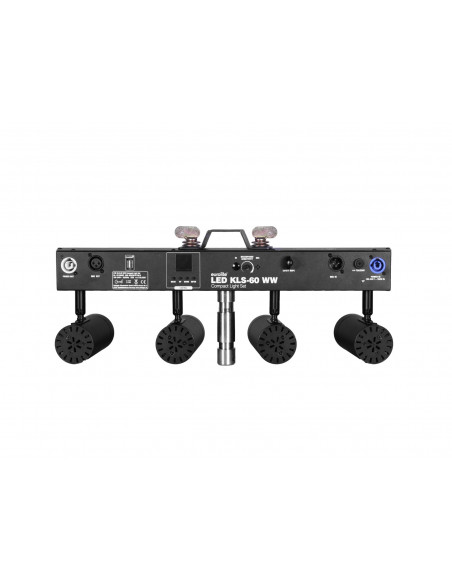

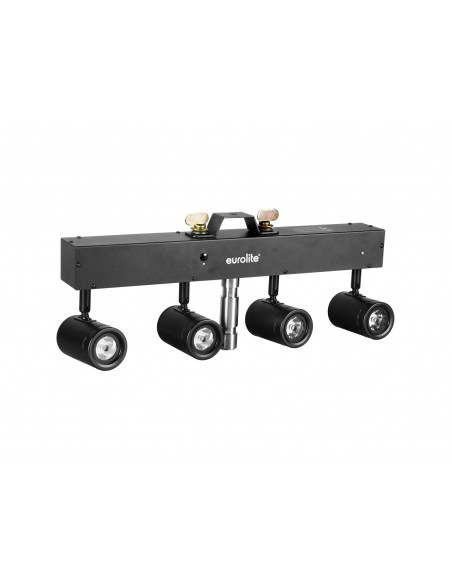

Bar with 4 bright, warm white spots, QuickDMX port, IR remote control and bag
- DMX light set with 4 LED spots
- 4 high-power warm white 15 W COB LEDs
- Color temperature: 3200 K
- Brightness and strobe settings individual adjustable for each spot
- Ultra-light, ideally suited for mobile use
- Crossbar with integrated DMX control unit and TV spigot for tripod installation
- Quick truss installation via quick-lock omega holders
- Spots can be turned 170° vertically and 340° horizontally
- Spots with 5° beam angle; 2 frost filters per spot (15° and 22°) included in delivery

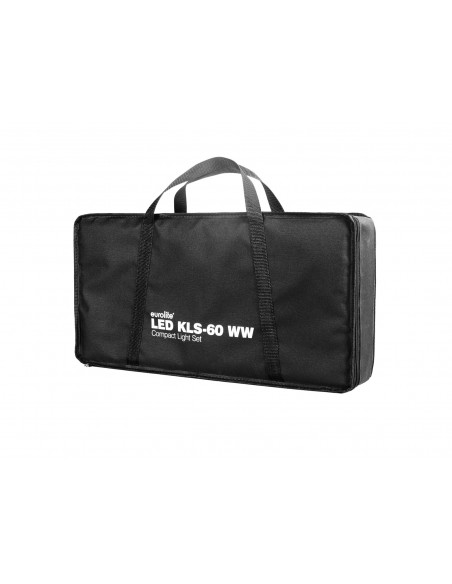

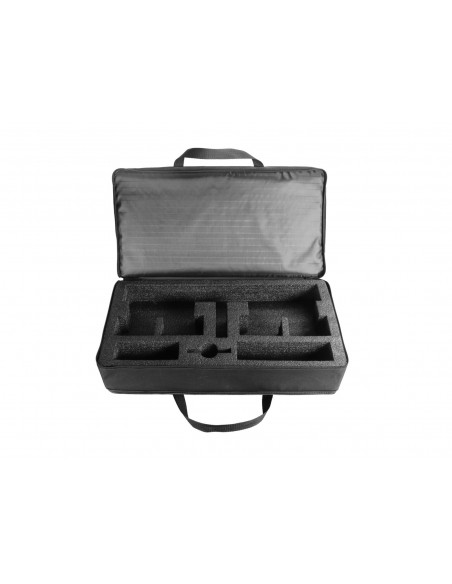

- Comes with practical transport bag
- Supports QuickDMX - the wireless DMX system from Eurolite
- Built-in phantom-powered USB port for QuickDMX, CRMX and WDMX receivers (optional)
- 12 built-in auto and music show programs
- Control panel with colored OLED display for easy configuration
- Mains input and output for power linking up to 8 units
- LED: 4 x high-power 15 W warm white (WW)
- Can be operated in 1; 3; 4; 5; 7; 8 CH mode
- The device is cooled by passive convection
- Controlling by DMX; stand-alone; IR remote control (provided); Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free projection
- Very high color rendering index (CRI)
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 50 W |
| IP classification: | IP20 |
| Protection class: | Class I |
| Power connection: | Mains input P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x P-Con (gray), mounting version |
| Fuse: | 5 x 20 mm, T 2 A Fuse replaceable |
| Lamp type: | LED lamp |
| LED: | 4 x high-power 15 W warm white (WW) |
| Color temperature: | 3200K |
| DMX channels: | 1; 3; 4; 5; 7; 8 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Passive convection |
| Control: | DMX; stand-alone; IR remote control (provided); Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Beam angle: | 5° |
| Beam angle (1/2 peak): | 5°
11°
24° |
| Beam angle (1/10 peak): | 10°
24°
43° |
| Color rendering index (CRI) more than: | 90 Ra |
| Illuminance in Lux (lx): | Warm white (WW) 1m: 16000 lx, 3m: 1200 lx, 6m: 350 lx |
| Housing color: | Black |
| Attachment system: | TV spigot Ø 28mm |
| Dimensions: | Width: 51 cm
Depth: 12,1 cm
Height: 21,2 cm |
| Weight: | 4,20 kg |
| Noise classification: | Class 0 (no noise at all) |
| Remote control |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese (provided) |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
