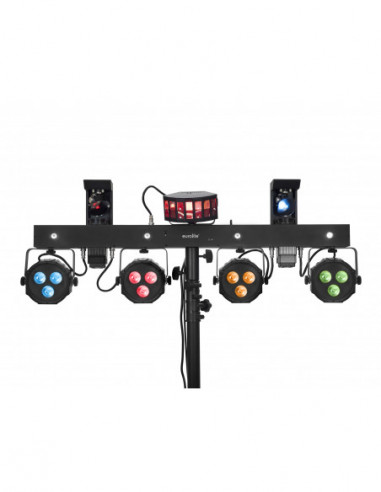

Compact bar with derby, spots, scanners, UV effect, QuickDMX port and bag
- DMX light effect bar with 1 rotating LED derby, 4 LED spots, 2 scanners and UV LEDs
- Ultra-light, ideally suited for mobile use
- Crossbar with integrated DMX control unit and TV spigot for tripod installation
- Swivel mounting brackets
- Comes pre-assembled with practical transport bag
- Convenient control via included IR remote control or optional wireless foot switch
- Several diverse DMX modes for various consoles and requirements
- LED derby and LED spots individually tiltable and controllable
- Spots with 15° beam angle

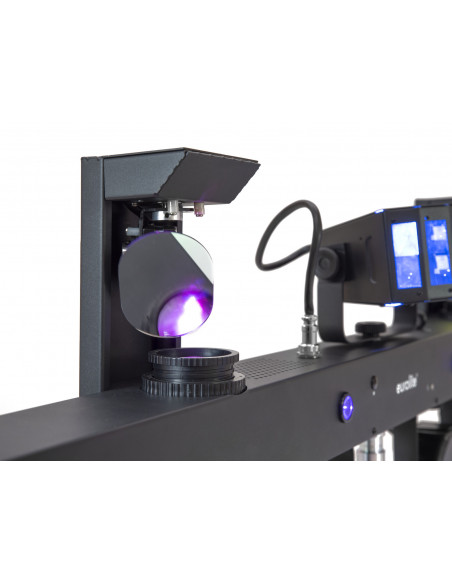

- Mirror movement can be inverted separately for both scanners (e.g. for common, counter-rotating control)
- Brand-new software design with smart programs
- 20 built-in auto and music show programs that include all 4 effect units
- Control panel with OLED display for easy configuration
- Supports QuickDMX - the wireless DMX system from Eurolite
- Built-in phantom-powered USB port for QuickDMX, CRMX and WDMX receivers (optional)
- When fog is used, this effect becomes especially attractive
- Mains input and output for power linking up to 8 units
- Can be operated in 3; 7; 13; 14; 15; 18; 19; 30; 32; 39 CH mode
- The device is cooled by cooling fan
- Controlling by DMX; IR remote control (provided); Sound to light via Microphone; stand-alone; Master/slave function; Wireless footswitch (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- For application areas such as: Wedding/gala; Lender; Small lender
spotlight
- LED: Spot each 3 x high-power 7 W 4in1 QCL RGB/WW (homogenous color mix)
light effect
- LED: Multi beam effect each 1 x 3 W R/G/B
moving light
- LED: Scanner each 1 x 15 W cold white (CW)
bar
- LED: 4 x high-power 1 W ultra violet (UV)
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 115 W |
| IP classification: | IP20 |
| Protection class: | Class I |
| Power connection: | Mains input P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | P-Con (gray), mounting version |
| Fuse: | 5 x 20 mm, T 2 A Fuse replaceable |
| Lamp type: | LED lamp |
| Equipment: | Color wheel; gobo wheel with static gobos |
| DMX channels: | 3; 7; 13; 14; 15; 18; 19; 30; 32; 39 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | DMX; IR remote control (provided); Sound to light via Microphone; stand-alone; Master/slave function; Wireless footswitch (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Beam angle: | 15° |
| Beam angle (1/2 peak): | Spot 15° |
| Beam angle (1/10 peak): | Spot 28° |
| Illuminance in Lux (lx): | Red (R) 1m: 1022 lx, 3m: 125 lx, 6m: 33 lx
Green (G) 1m: 2448 lx, 3m: 285 lx, 6m: 75 lx
Blue (B) 1m: 395 lx, 3m: 47 lx, 6m: 13 lx
Warm white (WW) 1m: 1892 lx, 3m: 219 lx, 6m: 58 lx
All 1m: 4853 lx, 3m: 676 lx, 6m: 175 lx |
| Housing color: | Black |
| Attachment system: | TV spigot Ø 28mm |
| Display type: | OLED display |
| Dimensions: | Width: 1,1 m
Depth: 15,5 cm
Height: 43 cm |
| Weight: | 12,80 kg |
| Spotlight |
| LED: | Spot each 3 x high-power 7 W 4in1 QCL RGB/WW (homogenous color mix) |
| Light effect |
| LED: | Multi beam effect each 1 x 3 W R/G/B |
| Moving light |
| LED: | Scanner each 1 x 15 W cold white (CW) |
| Bar |
| LED: | 4 x high-power 1 W ultra violet (UV) |
| Remote control |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
