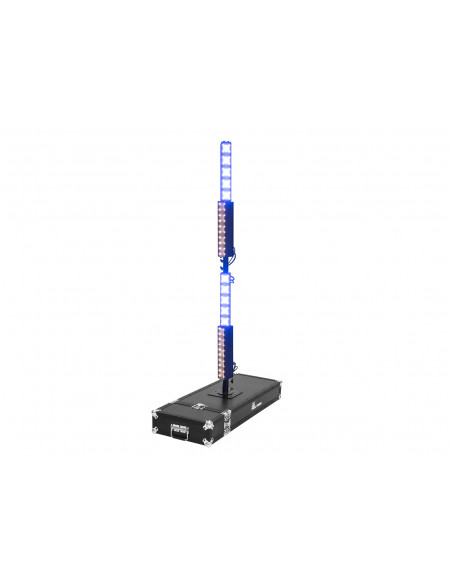

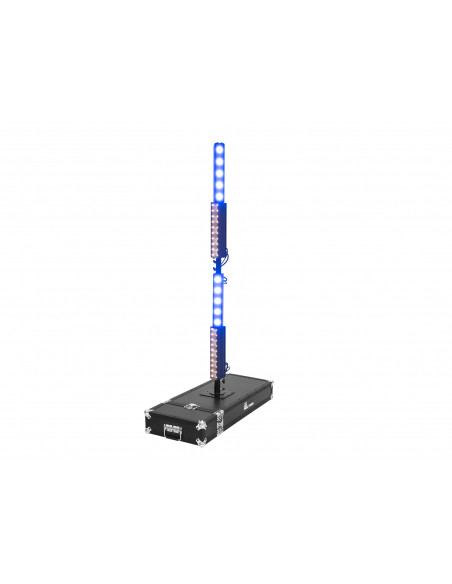

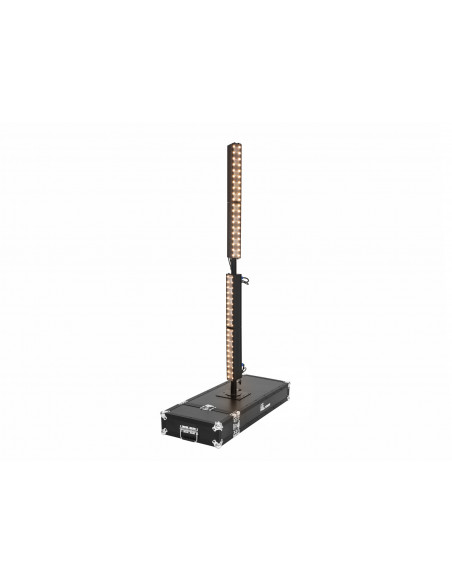

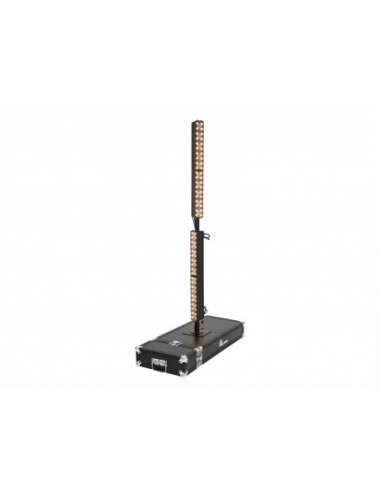

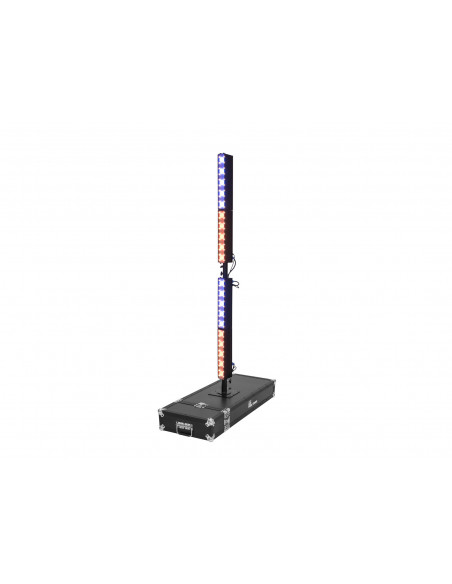

Multifunctional vertical light effect with mounting option on the supplied case

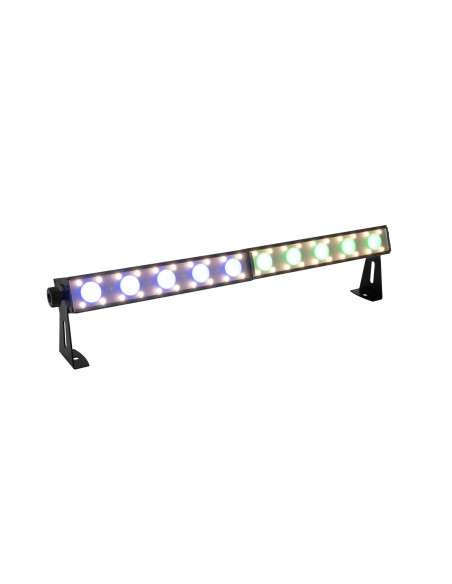

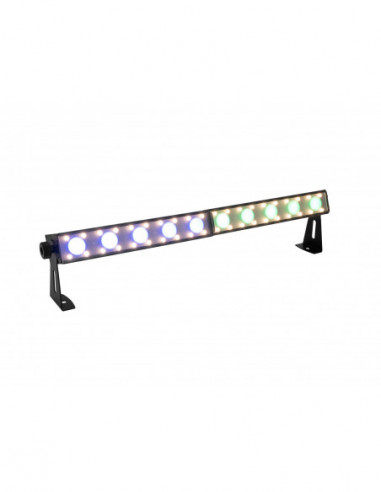

- Two LED bars with a total of 20 x 15 W RGBW LED (4in1) and 80 x SMD LED in warm white
- 8° beam angle; frost filter for a softer light included in delivery
- Comprehensive range of accessories for versatile applications included in the delivery
- Mounting options: singly or combined standing on the supplied case, hanging via mounting adapters, standing or hanging via mounting brackets or via TV spigots
- TV spigot for installation on stands with 28 mm inner diameter
- Comes with a professional flight case with transport wheels ideally suited for mobile use and safe storage
- Each RGBW LED can be controlled individually and, like the warm white LEDs, in four groups
- Every LED bar can be manually rotated centrally at the joint
- Auto, music and DMX mode
- Stepless color blend, color change, preset colors, dimmer and strobe effect
- 96 professionally designed integrated show programs in auto and music mode
- Convenient wireless control via included IR remote control
- Connection between the two LED bars can be extended spatially at will via P-Con and 3-pin XLR cables
- Addressing and setting via control board with LCD
- Supports QuickDMX - the wireless DMX system from Eurolite
- Built-in phantom-powered USB port for QuickDMX, CRMX and WDMX receivers (optional)
- LED: 80 x SMD 0,3 W warm white (WW)
- LED: 20 x high-power 15 W 4in1 QCL RGBW (homogenous color mix)
- Can be operated in 12; 20; 27; 84; 5 CH mode
- The device is cooled by passive convection
- Controlling by DMX; Sound to light via Microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Preprogrammed in LED PC-Control 512
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 250 W |
| IP classification: | IP20 |
| Lamp type: | LED lamp |
| LED: | 80 x SMD 0,3 W warm white (WW)
20 x high-power 15 W 4in1 QCL RGBW (homogenous color mix) |
| DMX channels: | 12; 20; 27; 84; 5 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Passive convection |
| Control: | DMX; Sound to light via Microphone; LED PC-Control 512; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Beam angle: | 8° |
| Beam angle (1/2 peak): | 8° |
| Housing color: | Black |
| Attachment system: | TV spigot Ø 28mm |
| Weight: | 12,00 kg |
| Noise classification: | Class 0 (no noise at all) |
| Device |
| Dimensions: | Length: 1,1 m
Width: 44 cm
Height: 2 m |
| Segment |
| Dimensions: | Length: 92 cm
Width: 10,1 cm
Height: 7 cm |
| Case |
| Dimensions: | Length: 1,1 m
Width: 44 cm
Height: 18 cm |
| Remote control |
| Battery: | Button cell 3.0 V CR2025 lithium manganese (provided) |
