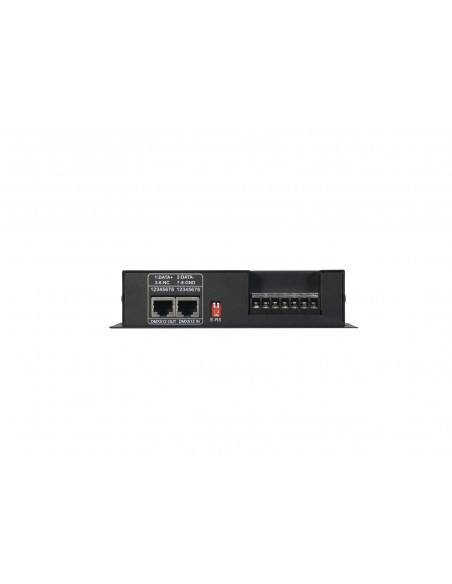

4-channel LED controller with DMX interface for RGB LEDs 12-24 V
- Compact LED controller for controlling RGB LEDs (12-24 V) via DMX
- Converts standard DMX512 signals to PWM signals e.g. for driving LED strips
- 4 separate control channels for individual color mixing of red, green, blue and white LEDs
- Built-in programs enable stand-alone operation (individual color selection, color change, color fade, running speed)
- DMX addressing and settings via DIP switches
- Switchable termination resistor
- Plug-in screw terminals for connecting the LEDs and the power supply
- RJ45 jacks for serial connection
- Rugged black metal housing
- Can be operated in 4 CH mode
Power supply: | 12/24V DC |
Power consumption: | Max. 384 W 12 V DC Max. 768 W 24 V DC Max. 96 W 12 V DC per channal Max. 192 W 24 V DC per channal |
Output current: | Max. 4 x 8 A per channal |
Power connection: | Screw terminal |
Power output: | Screw terminal |
DMX channels: | 4 |
DMX input: | Screw terminal 1 x RJ-45 (F) mounting version |
Dimensions: | Length: 16,4 cm Width: 6,6 cm Height: 3,8 cm |
Weight: | 300 g |
Legal specifications |
