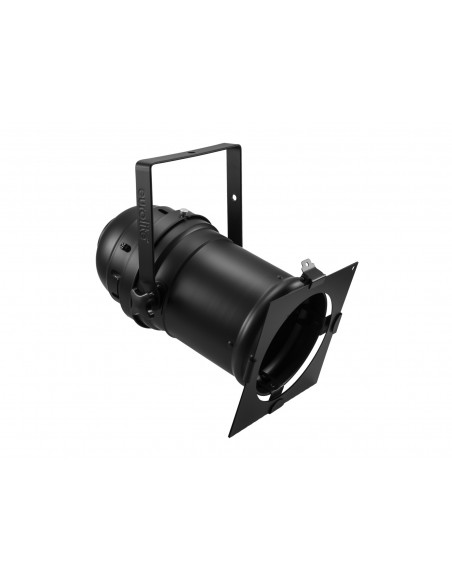

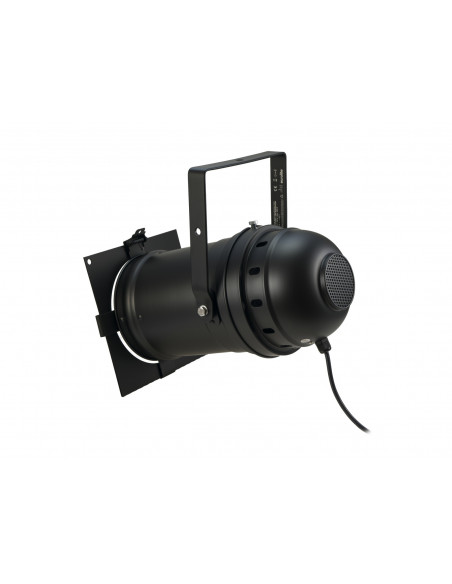

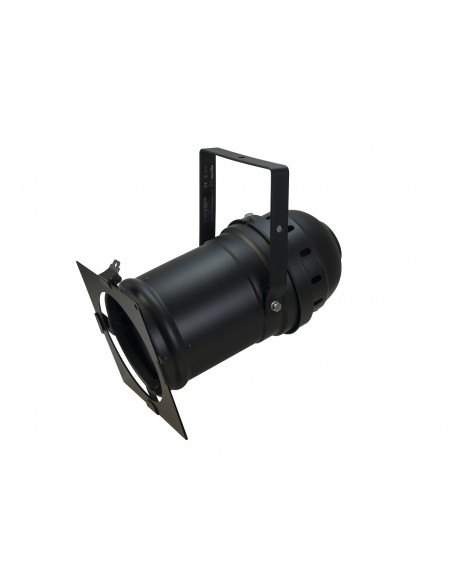

Long PAR-64 housing (with cable and plug)

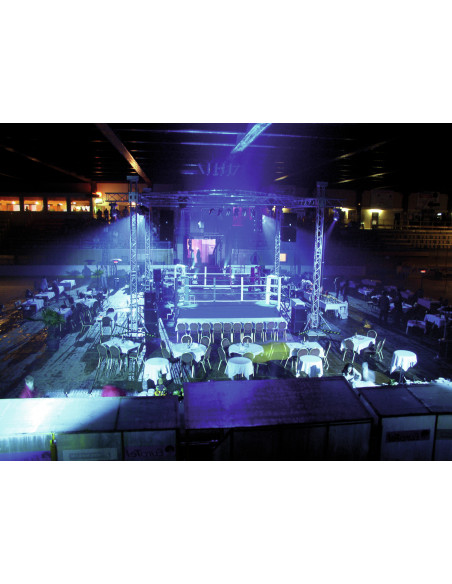

- Spotlight housing for stage, discotheques and trade fair stands

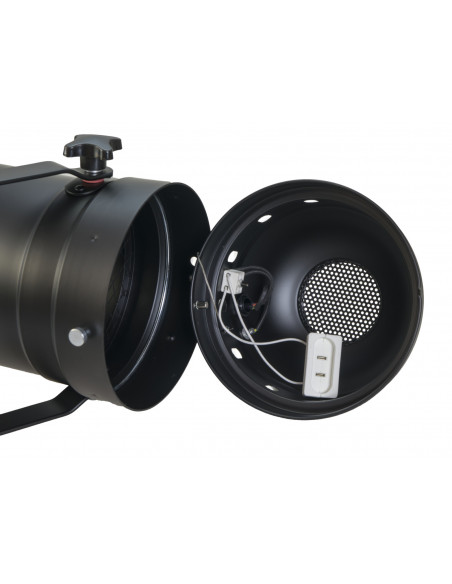

- Comes completely wired with black silicone cable, appropriate GX16pin connector, stable earthing in the housing, directly clamped ceramic socket and safety-plug
- Protection grille on the rear housing cover - complies with CE regulations
- For lamps with max. 1000 W
- Rugged aluminum housing
- Strong aluminum mounting bracket
- Heat-resistant fixing screw
- Color filter frame included in delivery
- 4 clip-to-hold clamps with spring locks for comfortable opening of the color filter frame
- Safety grille (splinter protection) is integrated in the tube
- Strong clamps with extension springs for safe hold and for quick opening of the rear housing cover and lamp change
- Well-suited for easy installation of our Raylight reflectors with matching connector (GX16)
- Simple mounting: connect with ceramic socket - ready!
- Strong cable tension relief
- Blackened tube for precise light output
- Supplied without lamp
- Available in silver or black
- Via color filter frame
- Controlling by plug and play
- For PAR 64
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | Max. 1000 W |
| IP classification: | IP20 |
| Protection class: | Class I |
| Power connection: | Fixed power supply cord with safety plug |
| Cable length: | Approx. 0,7 m |
| Base: | GX16d |
| Lamp type: | Selectable |
| Color generation: | Via color filter frame |
| Control: | Plug and play |
| Housing color: | Black matte |
| Material: | Metal |
| Slot for spot length: | 25,7 cm x 25,7 cm |
| Dimensions: | Length: 41 cm
Width: 26,5 cm
Height: 34,5 cm |
| Weight: | 1,9 kg |
| Filter frame |
| Material: | Metal |
| Dimensions: | Length: 25,5 cm
Width: 25,5 cm
Diameter: Ø 20,2 cm |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
