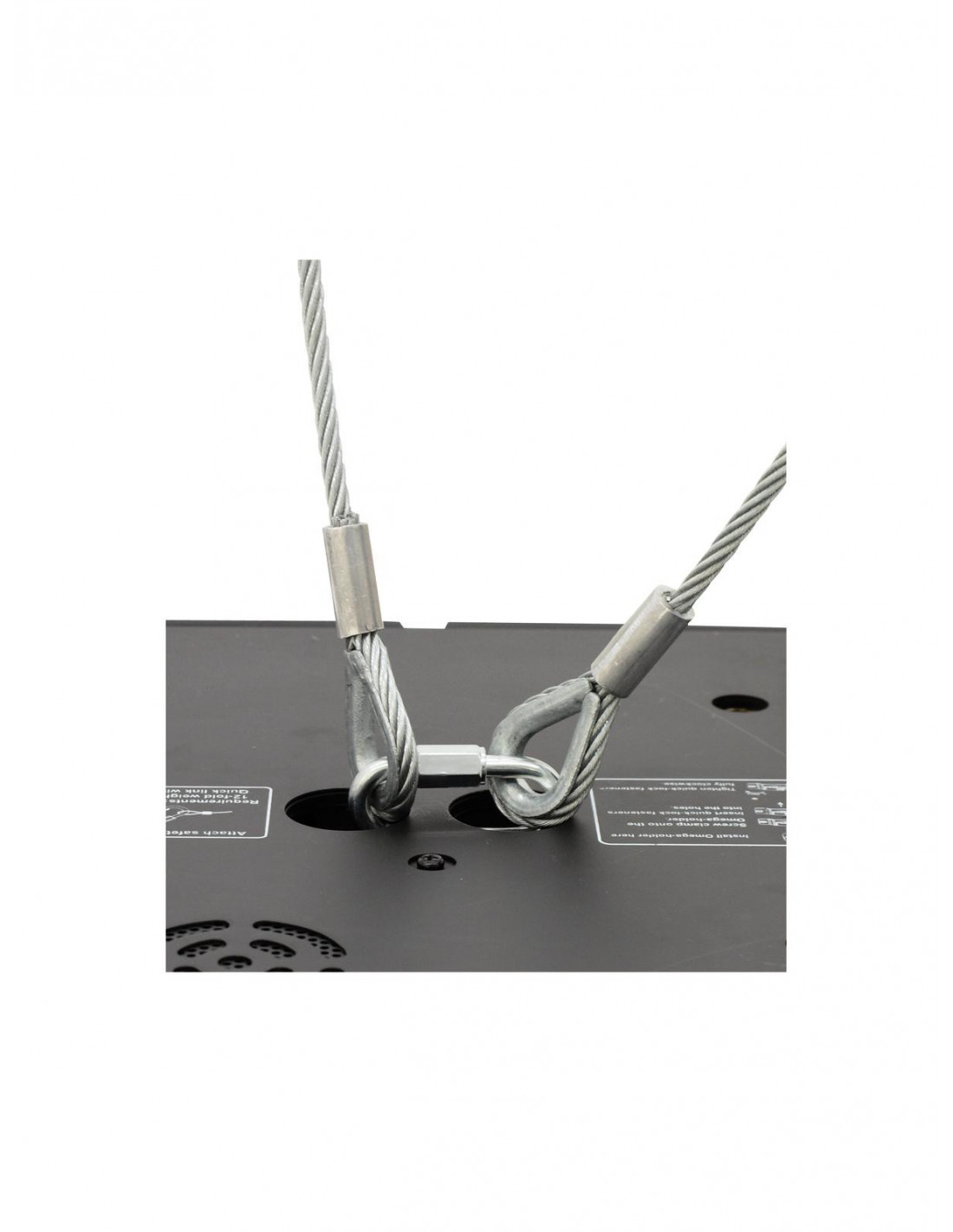

EUROLITE Safety bondsThe EUROLITE safety bonds comply with the current regulation of the German professional insurance association as summed up in BGI 810-3:2007-03 Loads above persons. The safety bonds are constructed in accordance with the European standards DIN EN 12385-4:2008-06 and DIN 56927:2009-03.The safety bonds are tested by the LGA, an independent and accredited testing institute. The breaking load testified by the LGA is documented in the test report according to DIN EN 10204 required by the German professional insurance association.Clearly, every user can secure loads above persons with these safety bonds in all areas where the BGV C1 is required.

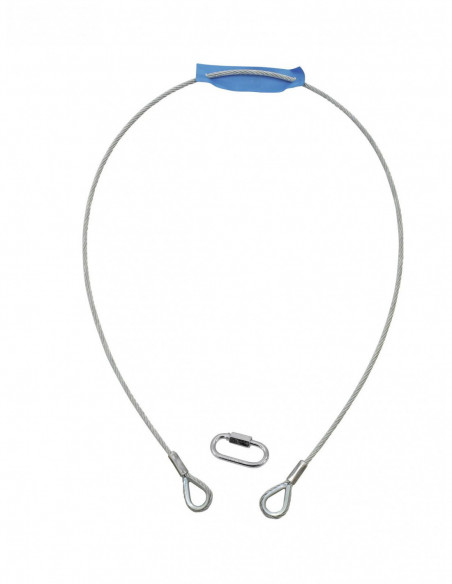

Approved safety bond
- Rope with thimble and connector
EUROLITE Steel Rope 1000x4mm silver with Thimble
Installation rope, safety bond, safety
- Round strand rope 6 x 19 with fibre core
- With two thimbles
- Suitable for installing and securing loads above persons
- 4 x 1000 mm
- WLL 175 kg
- Test report according to DIN EN 10204 as download
- Rope with thimble
EUROLITE Quick Link Type A-90
Quick link
- Form A (short)
- Galvanized
- Identification number: 90
- Stamp: DIN 56927 A 90
- Test report according to DIN EN 10204 as download
| Secured weight (BGV C1): | Max. 15 kg |
| Temperature range: | -40 °C - +100 °C |
| Weight: | 90 g |
| EUROLITE Steel Rope 1000x4mm silver with Thimble |
| Maximum load WLL (5-fold): | 175 kg |
| Design of the core: | 6 x 19 FC |
| Strength classification: | 1960 |
| Standard: | DIN EN 12385-4:2008-06, DIN 56927:2009-03 |
| Nominal tensile strenght of rope: | 1770 N/mm² |
| Wire surface: | Zinc-plated |
| Color: | Silver |
| Temperature range: | -40 °C - +100 °C |
| Dimensions: | Length: 1 m
Diameter: Ø 4 mm |
| Weight: | 80 g |
| Length weigth: | 0,0554 kg/m |
| EUROLITE Quick Link Type A-90 |
| Maximum load WLL (10-fold): | 90 kg |
| Standard: | DIN 56927:2009-03, |
| Shape: | A - small opening |
| Opening: | 0-5,5 mm |
| Dimensions: | Length: 3,10 cm
Width: 4,10 cm
Depth: 2,20 cm
Diameter: Ø 4 mm |
| Weight: | 10 g |
