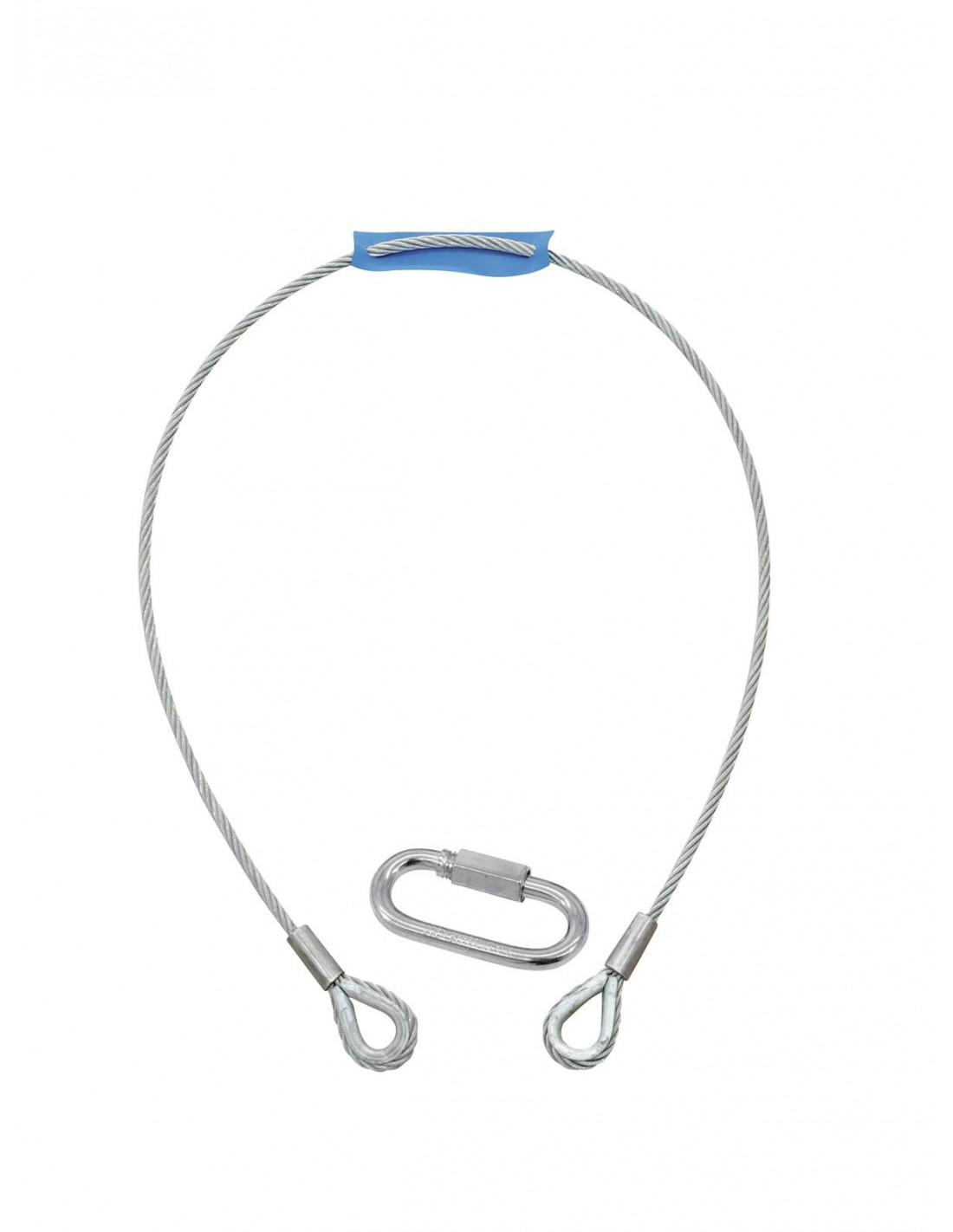

- Rope with thimble and connector
EUROLITE Steel Rope 1000x6mm silver with Thimble
Installation rope, safety bond, safety
- Round strand rope 6 x 19 with fibre core
- With two thimbles
- Suitable for installing and securing loads above persons
- 6 x 1000 mm
- WLL 400 kg
- Test report according to DIN EN 10204 as download
- Rope with thimble
EUROLITE Quick Link Type B-200
Quick link
- Form B (long)
- Galvanized
- Identification number: 200
- Stamp: DIN 56927 B 200
- Test report according to DIN EN 10204 as download
| Secured weight (BGV C1): | Max. 35 kg |
| Temperature range: | -40 °C - +100 °C |
| Weight: | 220 g |
| EUROLITE Steel Rope 1000x6mm silver with Thimble |
| Maximum load WLL (5-fold): | 400 kg |
| Design of the core: | 6 x 19 FC |
| Strength classification: | 1960 |
| Standard: | DIN EN 12385-4:2008-06, DIN 56927:2009-03 |
| Nominal tensile strenght of rope: | 1770 N/mm² |
| Wire surface: | Zinc-plated |
| Color: | Silver |
| Temperature range: | -40 °C - +100 °C |
| Dimensions: | Length: 1 m
Diameter: Ø 6 mm |
| Weight: | 190 g |
| Length weigth: | 0,0554 kg/m |
| EUROLITE Quick Link Type B-200 |
| Maximum load WLL (10-fold): | 200 kg |
| Standard: | DIN 56927:2009-03, |
| Shape: | B - big opening |
| Opening: | 0-14,5 mm |
| Dimensions: | Length: 5,80 cm
Width: 7,30 cm
Depth: 3 cm
Diameter: Ø 6 mm |
| Weight: | 30 g |
