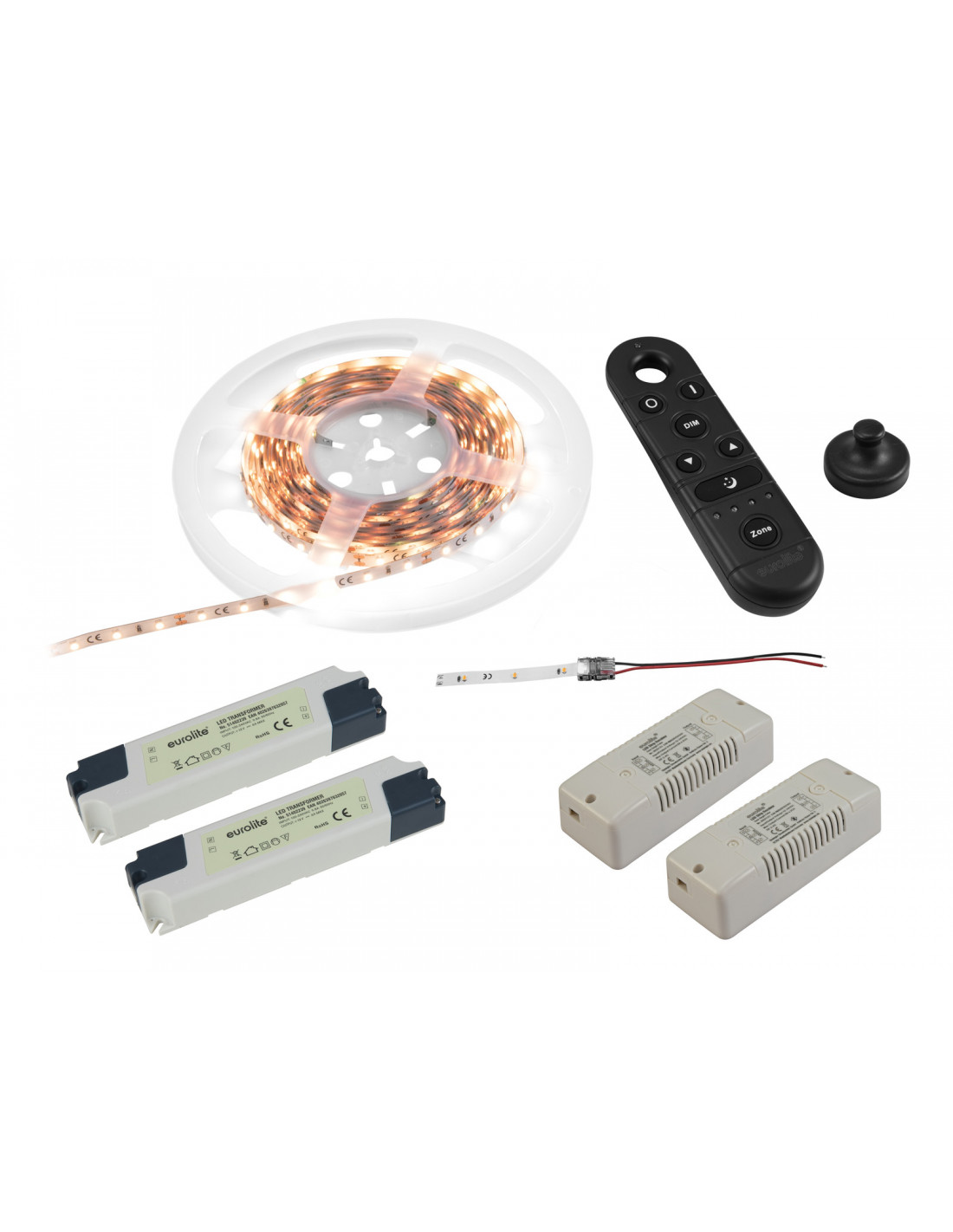

LED Strip 5m, 2x Controller Zone and 2x Transformer 12V

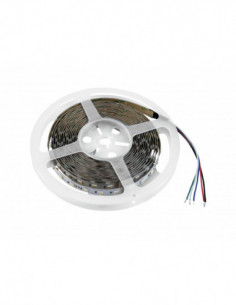

EUROLITE LED Strip 300 5m 3528 2700K 12V
Flexible LED strip with a CRI >90
- Flexible LED strip for decorative indoor lighting
- Perfect for indirect lighting, custom-made versions for fair or shop applications as well as all kinds of background lighting
- High-grade components and a solid construction guarantee a long service life and excellent color rendering
- 300 extremely bright white LEDs
- Color temperature 2700 K
- Can be cut into segments of variable size (groups of 3 LEDs)
- Self-adhesive rear side
- Supplied on a plastic reel
- Power cable, straight and flexible plug connectors available as accessories
- Matching control units, power units and mounting materials optionally available
- LED: 300 x SMD 3528 warm white (WW)
- Controlling by Accessories
- Very high color rendering index (CRI)
EUROLITE LED Strip Receiver Zone Single Color
Wireless receiver for controlling single-colored LED strips 12-24 V
- For dimming single-colored LED strips 12-24 V
- 2 channels
- Wireless remote control 50531130 is required for operation
- Receiving frequency 2.4 GHz
- Power supply DC 12-24 V
- Maximum load 2 x 8 A
EUROLITE LED Strip Remote Control Zone Single Color
Wireless remote control for single-colored LED strips 12-24 V
- Receiver 50531121 is required for operation
- Controls 4 zones
- Multiple remote controls possible in one zone
- Transmission frequency 2.4 GHz
- Brightness control
- On/off button
- Supplied with wall holder
- Use a operating range up to 30m
EUROLITE Electr. LED Transformer, 12V, 4A
Stabilized LED power supply unit DC 12 V, 4 A
- Especially for LED installations
- Indoor use only
- Input voltage AC 100-240 V
- Output voltage DC 12 V, 4 A
- Protected against short circuit, overload, overheating and overvoltage
- Connection via bare cable ends
- L x W x H: 175 x 40 x 25 mm
- 150 g
| Weight: | 660 g |
| EUROLITE LED Strip 300 5m 3528 2700K 12V |
| Power supply: | 12 V DC 1,5 A |
| Power consumption: | 18 W |
| IP classification: | IP20 |
| Protection class: | Class III |
| Luminous flux (Lumen) per meter: | 360 lm/m |
| Power connection: | Fixed Supply cord with open wires |
| LED: | 300 x SMD 3528 warm white (WW) |
| Color temperature: | 2700K |
| Control: | Accessories |
| Standing/fixation: | Self adhesive |
| Color rendering index (CRI) more than: | 90 Ra |
| Lamps/meter: | 60 pc/pcs |
| Power/meter: | 3,6 W |
| Lamps/tube: | 300 pc/pcs |
| Lamp distance: | 16 mm |
| Cutting mark: | 5 cm |
| Housing color: | White |
| Dimensions: | Length: 5 m
Width: 8 mm
Height: 2 mm |
| Weight: | 90 g |
| Legal specifications |
| Energy efficiency class (A - G): | G |
| EUROLITE LED Strip Receiver Zone Single Color |
| Power supply: | 12/24V DC |
| Power consumption: | Max. 192 W 12 V DC
Max. 384 W 24 V DC
96 W 12 V DC per channal
192 W 24 V DC per channal |
| Output current: | Max. 2 x 8 A per channal |
| Power connection: | Screw terminal |
| Power output: | Screw terminal |
| Carrier frequency: | 2,4 GHz |
| Dimensions: | Length: 11,5 cm
Width: 4,5 cm
Height: 3,2 cm |
| Weight: | 80 g |
| Legal specifications |
| EUROLITE LED Strip Remote Control Zone Single Color |
| Battery: | 2 x 1.5V AAA Micro LR03 alkaline manganese (provided) |
| Carrier frequency: | 2,4 GHz |
| Range: | 30 m |
| Dimensions: | Length: 14,7 cm
Width: 4 cm
Height: 2,8 cm |
| Weight: | 90 g |
| Legal specifications |
| EUROLITE Electr. LED Transformer, 12V, 4A |
| Power supply: | 100-240 V AC, 50/60 Hz |
| IP classification: | IP20 |
| Protection class: | Class II |
| Power connection: | Mains input screw terminal |
| Power output: | Screw terminal |
| Housing color: | White matte |
| Output: | 12V DC, stabilized; 4 A; |
| Material: | Plastic |
| Dimensions: | Length: 18 cm
Width: 4 cm
Height: 2,5 cm |
| Weight: | 160 g |
| EUROLITE LED Strip Power Contact 2Pin 8mm |
| IP classification: | IP20 |
| Material: | Plastic |
| Color: | Multicolor |
| Dimensions: | Length: 16 cm
Width: 1,30 cm
Height: 7 mm |
| Weight: | 10 g |
