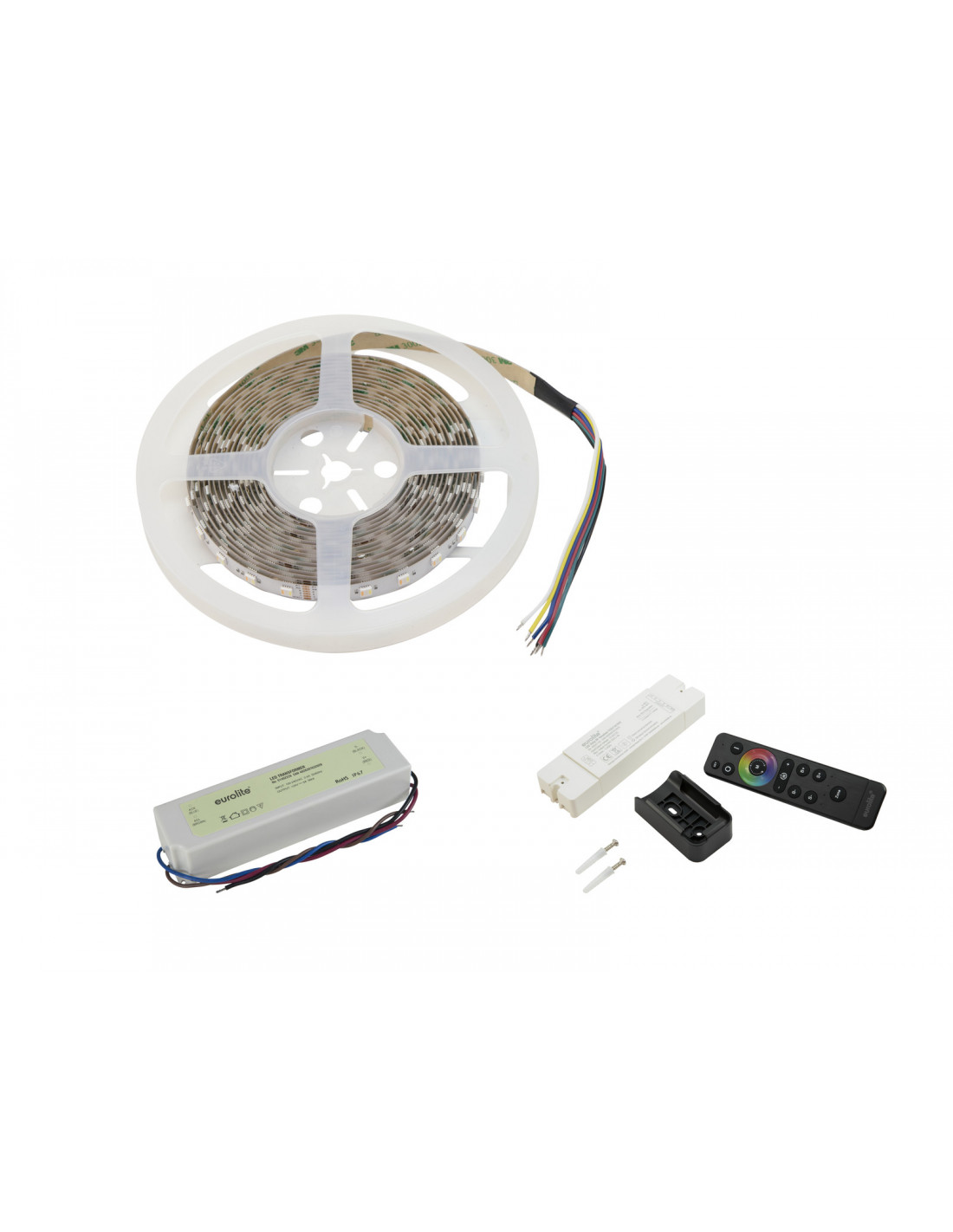

EUROLITE LED Strip 300 5m 5050 RGB/WW/CW 24V
Flexible LED strip, RGB, warm white and cold white
- Flexible LED strip for decorative indoor lighting
- Perfect for indirect lighting, custom-made versions for fair or shop applications as well as all kinds of background lighting
- High-grade components and a solid construction guarantee a long service life and excellent color rendering
- 300 bright RGB, warm white and cold white LEDs (SMD 5050)
- Can be cut into segments of variable size (groups of 6 LEDs)
- Self-adhesive rear side
- Supplied on a plastic reel
- Matching control units, power units and mounting materials optionally available
- LED: 300 x SMD 5050 4in1 QCL RGB/WW (homogenous color mix)
- Controlling by system controller
EUROLITE LED Strip RGB/CW/WW Zone RF Controller
5-channel wireless LED controller with remote control for RGB and dual white
- User-friendly LED controller with 4 zones (5 x 4A) and remote control
- Controls single- and multi-colored (CW+WW, RGB, RGBW) LED strips (12-24 V) as desired
- Innovative wireless technology allows multiple controllers to be controlled synchronously and asynchronously with just one remote control
- Synchronous color sequences even over several hours with multiple controllers and different LED types
- Excellent signal transmission with 2.4 GHz - no perceptible difference to a wired system
- All controllers communicate with each other and cover a large range
- No visible contact between remote control and controller required
- Any number of controllers possible in 4 zones
- Extension controllers can be easily added to the system (item no. 50531155)
- Color selection via touch-sensitive color wheel
- 9 built-in programs
- Adjustable program speed and brightness
- On/off button
- Memory function saves last setting when switching off
- Supplied with wall holder and mounting material
Remote control
- Controlling by Wireless remote control included
- Use a operating range up to 20m
EUROLITE Electronic Transformer, 24V, 5A, IP67
Stabilized LED power supply unit DC 24 V, 5 A
- For indoor and outdoor use (IP67)
- Input voltage AC 100-240 V
- Output voltage DC 24 V, 5 A
- Protected against short circuit, overload, overheating and overvoltage
- Noise filter
- Connection via bare cable ends
| Weight: | 910 g |
| EUROLITE LED Strip 300 5m 5050 RGB/WW/CW 24V |
| Power supply: | 24 V DC 4,8 A |
| Power consumption: | 115 W |
| IP classification: | IP20 |
| Protection class: | Class III |
| Luminous flux (Lumen) per meter: | 950 lm/m |
| Power connection: | Fixed Supply cord with open wires |
| Cable length: | Approx. 0,15 m |
| LED: | 300 x SMD 5050 4in1 QCL RGB/WW (homogenous color mix) |
| Control: | System controller |
| Standing/fixation: | Self adhesive |
| Lamps/meter: | 60 pc/pcs |
| Power/meter: | 23 W |
| Lamps/tube: | 300 pc/pcs |
| Lamp distance: | 16 mm |
| Cutting mark: | 10 cm |
| Housing color: | White |
| Dimensions: | Length: 5 m
Width: 1,2 cm
Height: 2 mm |
| Weight: | 150 g |
| Legal specifications |
| Energy efficiency class (A - G): | G |
| EUROLITE LED Strip RGB/CW/WW Zone RF Controller |
| Controller |
| Power supply: | 12/24V DC |
| Power consumption: | Max. 480 W 24 V DC
Max. 240 W 12 V DC
96 W 24 V DC per channal
48 W 12 V DC per channal |
| Output current: | Max. 4 x 5 A per channal |
| Power connection: | Screw terminal |
| Power output: | Screw terminal |
| Carrier frequency: | 2,4 GHz |
| Dimensions: | Length: 16 cm
Width: 4,6 cm
Height: 2,5 cm |
| Weight: | 100 g |
| Remote control |
| Battery: | 2 x Micro (AAA) (provided) |
| Control: | Wireless remote control included |
| Range: | 20 m |
| Dimensions: | Length: 14,8 cm
Width: 4 cm
Height: 1,9 cm |
| Weight: | 70 g |
| Legal specifications |
| EUROLITE Electronic Transformer, 24V, 5A, IP67 |
| Power supply: | 100-240 V AC, 50/60 Hz |
| IP classification: | IP67 |
| Protection class: | Class II |
| Power connection: | Fixed Supply cord with open wires |
| Cable length: | Approx. 0,2 m |
| Power output: | No connector/cable only |
| Housing color: | White matte |
| Output: | 24 V DC, stabilized; 5 A; |
| Material: | Plastic |
| Dimensions: | Length: 20 cm
Width: 5,2 cm
Height: 3,7 cm |
| Weight: | 580 g |
